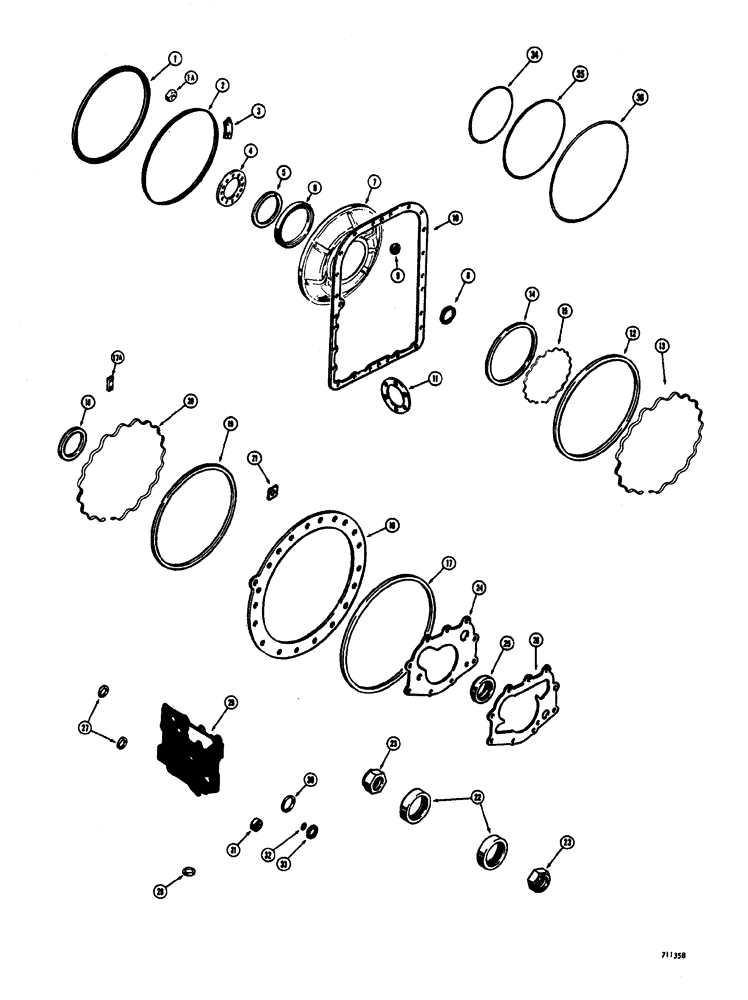

Запчасти Case W20 (124) - TRANSMISSION OVERHAUL GASKET KIT (06) - POWER TRAIN

L35269

GASKET KIT

KIT transmission overhaul, Includes Ref: 1-36

1шт.

1

A16645

SEALING RING

RING

1шт.

1a

131-308

LOCK

NUT - hex., lock (5/16' - 24 NF)

24шт.

2

A12674

RING

seal

1шт.

3

D47436

PLATE, LOCKING

6шт.

4

D48208

GASKET

pump

1шт.

5

D47441

SEAL

ring type converter housing sleeve

1шт.

L34000

DIAPHRAGM

DIAPHRAGM ASSEMBLY - converter, Includes Ref: 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM - converter

1шт.

8

D47445

SEAL

SB AL - ring type

2шт.

9

L31084

SEAL

RING

1шт.

10

D48358

GASKET

torque converter to transmission housing

1шт.

11

A12664

GASKET

strainer and cover

2шт.

A40021

KIT

SB AL AND EXPANDER KIT - clutch, large (Before transmission S.N. 35042), Includes Ref: 12, 13

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - ring type large

1шт.

13

NSS

NOT SOLD SEPARAT

EXPANDER - clutch seal large

1шт.

A40021

KIT

SFAL AND EXPANDER KIT (Before transmission S.N. 35042), Includes Ref: 14, 15

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - ring type, small

1шт.

15

NSS

NOT SOLD SEPARAT

EXPANDER - clutch seal small

1шт.

16

D47576

GASKET

front cover

1шт.

17

L32412

RING

seal, front cover

1шт.

17a

L31128

PLATE

locking, clutch plate

6шт.

18

L31017

RING

SEAL - ring type high clutch piston

1шт.

L31079

SEAL KIT

AND EXPANDER KIT - high range clutch, Includes Ref: 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - high range clutch piston

1шт.

20

NSS

NOT SOLD SEPARAT

EXPANDER - high range clutch seal

1шт.

21

D47476

LOCK

TAB - locking high range clutch piston

6шт.

22

D47485

SEAL

oil axle output shaft

2шт.

23

L31165

NUT

axle drive flange retaining

2шт.

24

L31081

GASKET

, Serial Range: pump-housing

1шт.

25

A13262

SEAL

SB AL - oil, charging pump

1шт.

26

L31037

GASKET

GASKET - pump, Serial Range: housing-cover

1шт.

27

L31016

GASKET

regulator valve and valve plug

2шт.

28

L31034

WASHER

GASKET - trimmer valve plug

1шт.

29

L31187

GASKET

control valve housing

1шт.

30

L31043

GASKET

trimmer valve plug

1шт.

31

L31032

SEAL

oil control valve spool

1шт.

32

A12666

O-RING,0.359" ID x 0.73"

ring type, clutch cut off valve

1шт.

33

L31034

WASHER

GASKET - plug control valve

1шт.

34

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

ring type small (Transmission S.N. 35042 and after)

2шт.

35

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

SI1 AL - r ng type, medium (Transmission S.N. 35042 and after)

2шт.

36

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

SFAL - ring type, large (Transmission S.N. 35042 and after)

2шт.
