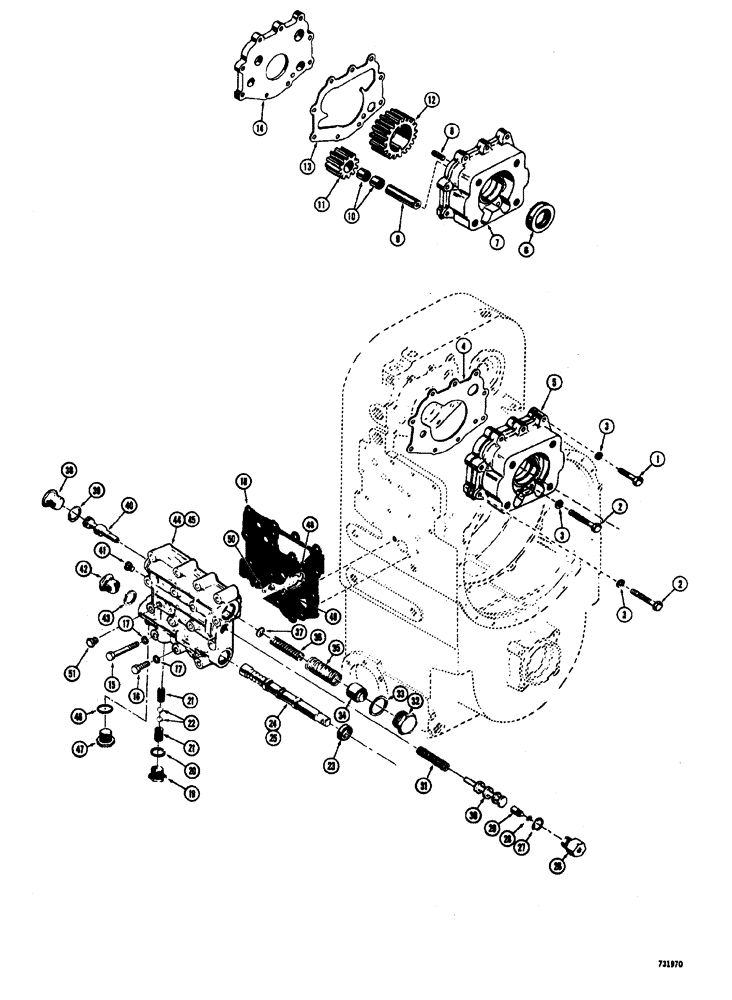

Запчасти Case W20 (120) - L46456, L52101 AND L55661 TRANSMISSIONS, CHARGING PUMP AND TRANSMISSION CONTROL VALVES (06) - POWER TRAIN

1

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Charging pump

6шт.

2

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Charging pump

3шт.

3

92-6

LOCK WASHER,3/8"

charging pump

9шт.

4

L31081

GASKET

pump to housing, charging

1шт.

5

L32414

PUMP

transmission and torque converter charging, Includes Ref: 6-14

1шт.

6

A13262

SEAL

oil, charging pump

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING pump, charging

1шт.

8

L31168

PIN

dowel, pump housing to cover, charging

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT driven gear, charging pump

1шт.

10

L31166

NEEDLE BEARING

roller type, charging pump

2шт.

11

NSS

NOT SOLD SEPARAT

GEAR driven, pump, charging

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR drive, pump, charging

1шт.

13

CASL31037

GASKET

GASKET pump housing to cover, charging

1шт.

14

L31085

COVER ASSY

pump, charging

1шт.

15

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Transmission control valves

15шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Transmission control valves

1шт.

17

92-6

LOCK WASHER,3/8"

transmission control valves

16шт.

18

L31187

GASKET

valve to housing, transmission control valves, Includes Ref: 19-26

1шт.

L35000

CONTROL VALVE

transmission control (Before transmission Sn 35042) When stock is exhausted, L36149 will b

1шт.

L36149

VALVE

transmission control (Before transmission Sn 35042 Service replacement for L35000 )

1шт.

L35242

VALVE

transmission control (Transmission Sn 35042 thru 51828)

1шт.

L36059

CONTROL VALVE

transmission control (Transmission Sn 51828 and after)

1шт.

19

D46350

PLUG

trimmer valve (Used on L35000, L35242 and L36059 valve)

1шт.

19

D31048

PLUG - trimmer valve (Used on L36149 valve)

1шт.

20

L31034

WASHER

GASKET - trimmer valve plug

1шт.

21

L31027

SPRING

detent

2шт.

22

211-13

BALL,1/2" Dia

Detent

2шт.

23

L31032

SEAL

oil

1шт.

24

L31228

SPOOL

valve (Used with L35000 and L35342 valves)

1шт.

25

L36061

VALVE

SPOOL - valve (Used with L36149 and L36059 valves)

1шт.

26

L31030

PLUG

clutch cutoff valve

1шт.

27

L31034

WASHER

GASKET - Dlue

1шт.

28

A12666

O-RING,0.359" ID x 0.73"

ring type, clutch cut off valve

1шт.

29

L31025

PLUG

clutch, cut off valve

1шт.

30

L33980

VALVE

clutch, cut off

1шт.

31

L31169

SPRING

clutch, cut off valve

1шт.

32

L31044

PLUG

valve

1шт.

33

L31043

GASKET

trimmer valve clue

1шт.

34

D51472

PLUG

trimmer valve

1шт.

35

L31183

SPRING

trimmer valve

1шт.

36

L35241

SPRING

regulator valve

1шт.

37

L32743

RETAINER

spring

1шт.

38

L31045

PLUG

regulator valve

1шт.

39

L31016

GASKET

plug

1шт.

40

L31189

VALVE

regulator

1шт.

41

221-661

PLUG,Hex Hd, 1/8"-27

valve

1шт.

42

L31054

SPARE PART valve (Before transmission S.N. 51828 only)

1шт.

43

L31016

GASKET

plug

1шт.

44

NSS

NOT SOLD SEPARAT

HOUSING - valve (Before transmission S.N. 51828)

1шт.

45

L36060

BODY

HOUSING - valve (Transmission S.N. 51828 and after)

1шт.

46

L3606

GASKET - seal, plug (Used with L36149 and L36059 valves)

1шт.

47

L36064

FLANGE

PLUG - hex. head (Used with L36149 and L36059 valves)

1шт.

48

L31040

STOP

valve

1шт.

49

L31046

PLUG

hall retainer

1шт.

50

L31019

BALL

valve

1шт.

51

221-661

PLUG,Hex Hd, 1/8"-27

valve

1шт.
