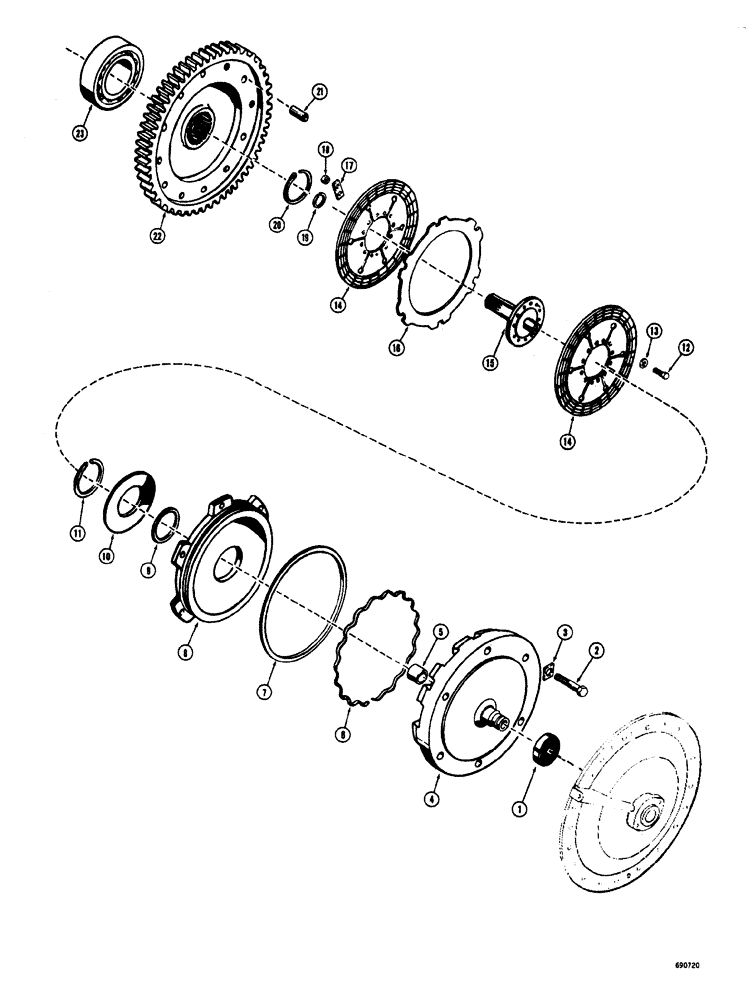

Запчасти Case W20 (116) - L46456, L52101 AND L55661 TRANSMISSION, HIGH RANGE CLUTCH AND TRANSFER GEAR (06) - POWER TRAIN

1

D47572

BEARING

ball, single row

1шт.

2

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

HHCS - 1/2"" - 20 NF x 2-3/4

6шт.

3

D47476

LOCK

1 AB - locking, high range clutch piston

1шт.

L32410

HOUSING

ASSEMBLY - clutch piston, high range (Before transmission S.N. 32138) When stock is exhausted, Includes Ref: 4, 5

1шт.

L33928

HOUSING

ASSEMBLY - clutch piston, high range, Includes Ref: 4, 5

1шт.

4

N8S

HOUSING - high range clutch piston

1шт.

5

L32411

BUSHING

high range clutch piston

1шт.

L31079

SEAL KIT

SB AL AND EXPANDER KIT - high range clutch, Includes Ref: 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

EXPANDER - high range clutch seal

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - high range clutch piston

1шт.

8

L32409

PISTON

high range clutch

1шт.

9

L31017

RING

SFAL - ring type, high clutch piston

1шт.

10

L31020

SPRING

washer type, piston return

1шт.

11

L31021

RING

snap, external type

1шт.

12

121-101

BOLT,Hex, Lock, 5/16"-24 x 7/8"

HHCS - 5/16"" - 24 NF x 7/8

12шт.

13

L31167

WASHER

flat, special

12шт.

14

L31090

PLATE

clutch high range

2шт.

15

L32408

HUB

high range clutch (When stock is exhausted, order L35534 hub for service)

1шт.

15

L35534

HUB

high range clutch

1шт.

16

L34015

PLATE

clutch, external spline (When stock is exhausted order L33958 plate for service)

1шт.

16

L33958

PLATE

clutch external spline

1шт.

17

L31128

PLATE

locking, clutch plate

6шт.

18

25-115

NUT,5/16"-24, G5

Hex

1шт.

19

L32407

RING

snap, hub retaining

1шт.

20

A12663

RING

snap, gear retaining

1шт.

D49396

GEAR

GEAR ASSEMBLY - transfer drive, Includes Ref: 21, 22

1шт.

21

L31036

PIN

clutch plate drive

6шт.

22

NSS

NOT SOLD SEPARAT

GEAR - transfer drive

1шт.

23

D47575

BALL BEARING

ball type

1шт.
