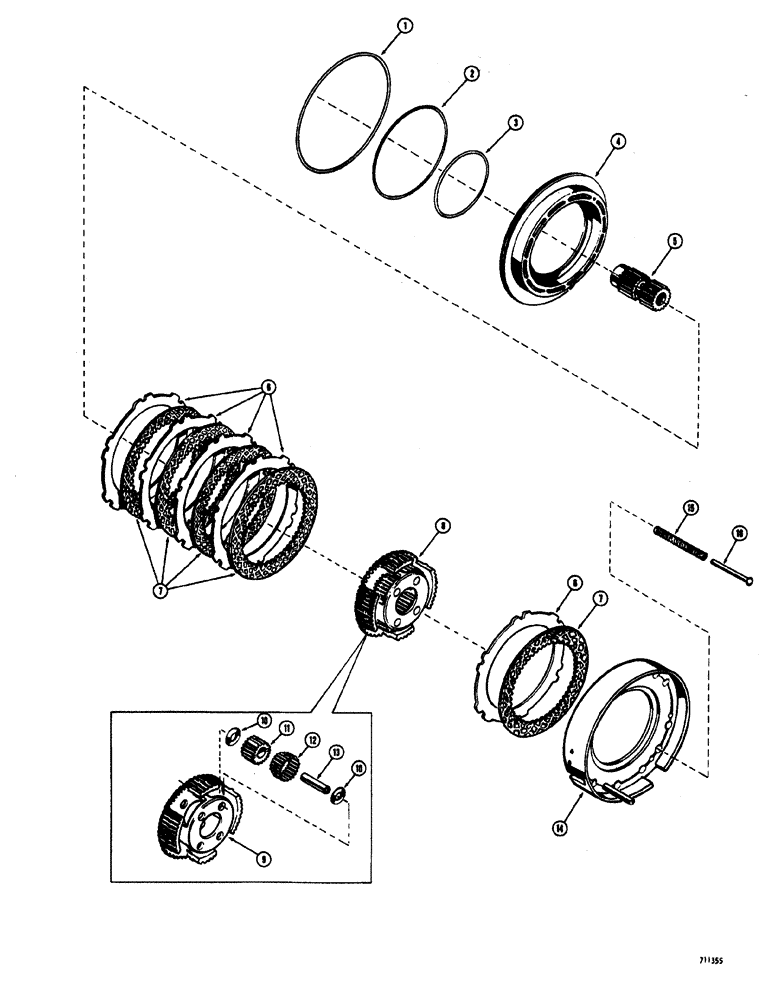

Запчасти Case W20 (114) - L52101 AND L55661 TRANS. REVERSE CLUTCH AND PLANETARY TRANSMISSION S.N. 35042 AND AFTER (06) - POWER TRAIN

1

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

ring type, large

1шт.

2

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

ring type, medium

1шт.

3

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

ring type, small

1шт.

4

L33969

PISTON

reverse clutch

1шт.

5

L32404

GEAR

sun, forward and reverse clutch

1шт.

6

L33958

PLATE

clutch, external spline

5шт.

7

L33970

PLATE

clutch, internal spline

5шт.

8

L33971

CARRIER

ASSEMBLY reverse clutch planetary, Includes Ref: 9-13

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER AND HUB reverse clutch planetary

1шт.

10

A12700

WASHER

thrust

8шт.

11

A16369

PINION

SET planetary, matched set of 4

1шт.

12

A12659

NEEDLE

ROLLER planetary pinion

88шт.

13

A12705

SPINDLE

pinion

4шт.

14

L33973

ANCHOR

AND PIN ASSEMBLY forward and reverse clutch

1шт.

15

A55806

SPRING

clutch piston return

12шт.

16

D47468

PIN

spring guide

12шт.
