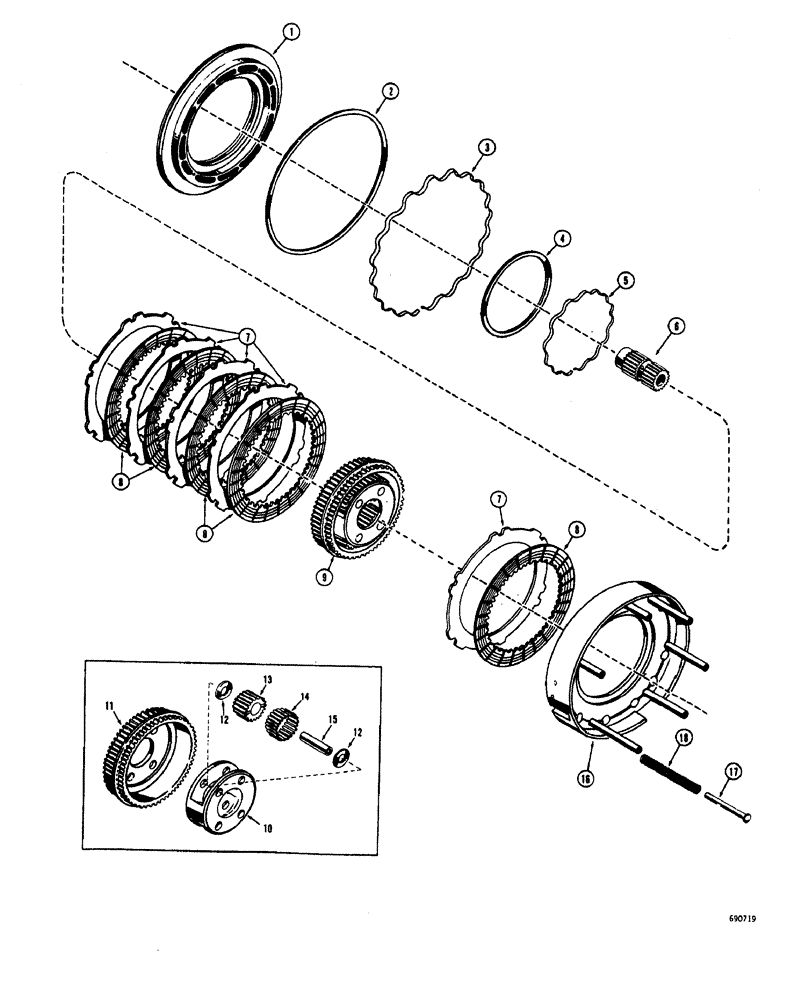

Запчасти Case W20 (112) - L46456 TRANS. REVERSE CLUTCH AND PLANETARY BEFORE TRANSMISSION S.N. 35042 (06) - POWER TRAIN

1

L30353

SPARE PART reverse clutch

1шт.

A40021

KIT

SEAL AND EXPANDER reverse clutch, large, Includes Ref: 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL ring type, large

1шт.

3

NSS

NOT SOLD SEPARAT

EXPANDER reverse clutch seal, large

1шт.

A40023

SEAL

AND EXPANDER KIT reverse clutch, small, Includes Ref: 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL ring type, small

1шт.

5

NSS

NOT SOLD SEPARAT

EXPANDER reverse clutch seal, small

1шт.

6

L32404

GEAR

sun, forward and reverse clutch

1шт.

7

L34015

PLATE

clutch, external spline. When stock is exhausted, replace all five plates with (5) L33958 plates

5шт.

7

L33958

PLATE

clutch, external spline

5шт.

8

A19993

PLATE

clutch, internal spline

5шт.

9

D46603

SPARE PART

CARRIER ASSEMBLY reverse clutch planetary. When stock is exhausted, order L33941 carrier assembly for service, Includes Ref: 10-15

1шт.

9

L33941

CARRIER

ASSEMBLY reverse clutch planetary. When stock is exhausted, order L33971 carrier for service, Includes Ref: 10-15

1шт.

9

L33971

CARRIER

ASSEMBLY reverse clutch planetary, Includes Ref: 10-15

1шт.

L33972

CARRIER

AND HUB ASSEMBLY reverse clutch planetary, Includes Ref: 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

CARRIER reverse clutch planetary

1шт.

11

D47513

SPARE PART reverse clutch planetary. When stock is exhausted, order L33942 hub for service

1шт.

11

L33942

SPARE PART reverse clutch planetary. When stock is exhausted, order L33972 assembly for service

1шт.

12

A12700

WASHER

thrust

8шт.

13

A16369

PINION

SET planetary, matched set of 4

1шт.

14

A12659

NEEDLE

ROLLER planetary pinion

88шт.

15

A12705

SPINDLE

pinion

4шт.

16

D47467

ANCHOR

AND PIN ASSEMBLY forward and reverse clutch

1шт.

17

D47468

PIN

spring guide

12шт.

18

A55806

SPRING

clutch piston return

12шт.
