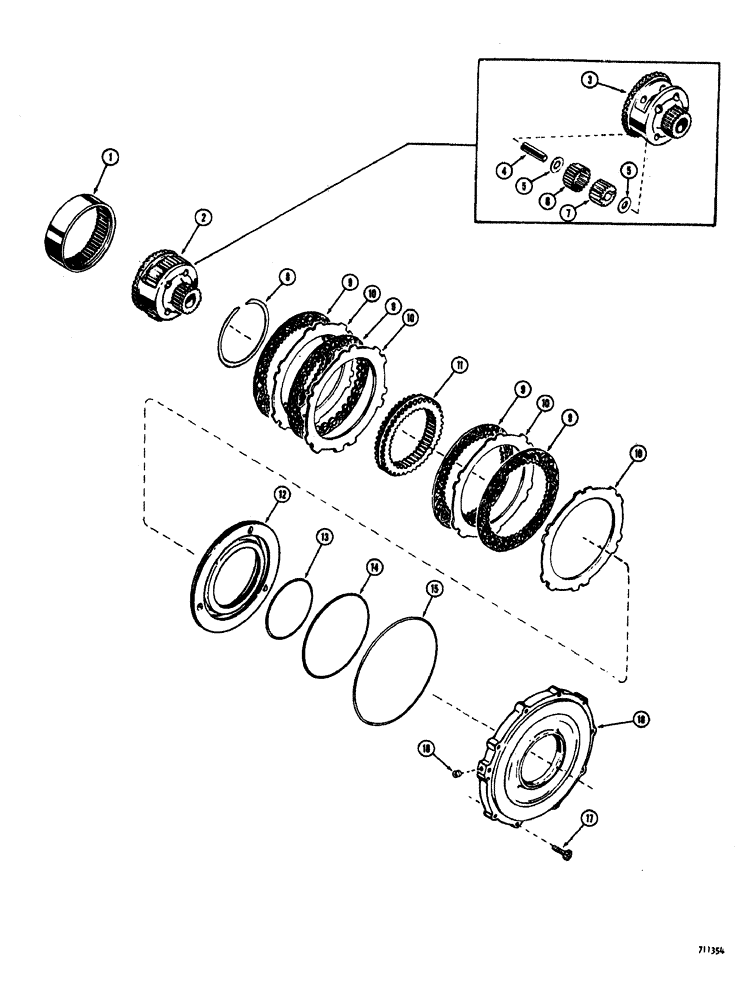

Запчасти Case W20 (110) - L52101 AND L55661 TRANS. FORWARD CLUTCH AND PLANETARY TRANSMISSION S.N. 35042 AND AFTER (06) - POWER TRAIN

1

A12712

GEAR

reverse ring

1шт.

2

L32405

CARRIER

ASSEMBLY forward clutch planetary. When stock is exhausted, order L35533 carrier assy for service, Includes Ref: 3-7

1шт.

2

L35533

CARRIER

ASSEMBLY forward clutch planetary, Includes Ref: 3-7

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER forward clutch planetary

1шт.

4

A12705

SPINDLE

pinion

4шт.

5

A12700

WASHER

thrust

8шт.

6

A12659

NEEDLE

ROLLER planetary pinion

88шт.

7

A16369

PINION

SET planetary, matched set of 4

1шт.

8

A12687

RING

snap, retaining

1шт.

9

L33970

PLATE

clutch, internal spline

4шт.

10

L33958

PLATE

clutch, external spline

4шт.

11

L33976

GEAR

ring, forward clutch. When stock is exhausted, order L35535 gear for service

1шт.

11

L35535

GEAR

ring, forward clutch

1шт.

12

L33975

PISTON

forward clutch

1шт.

13

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

ring type, small

1шт.

14

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

ring type, medium

1шт.

15

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

ring type, large

1шт.

16

L33977

HOUSING

forward clutch piston

1шт.

17

121-225

BOLT,Hex, Lock, 3/8"-16 x 1 3/4"

hex head cap, 3/8" - 16 NC x 1-3/4"

10шт.

18

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

pipe, square socket head, 1/4" NPT

1шт.
