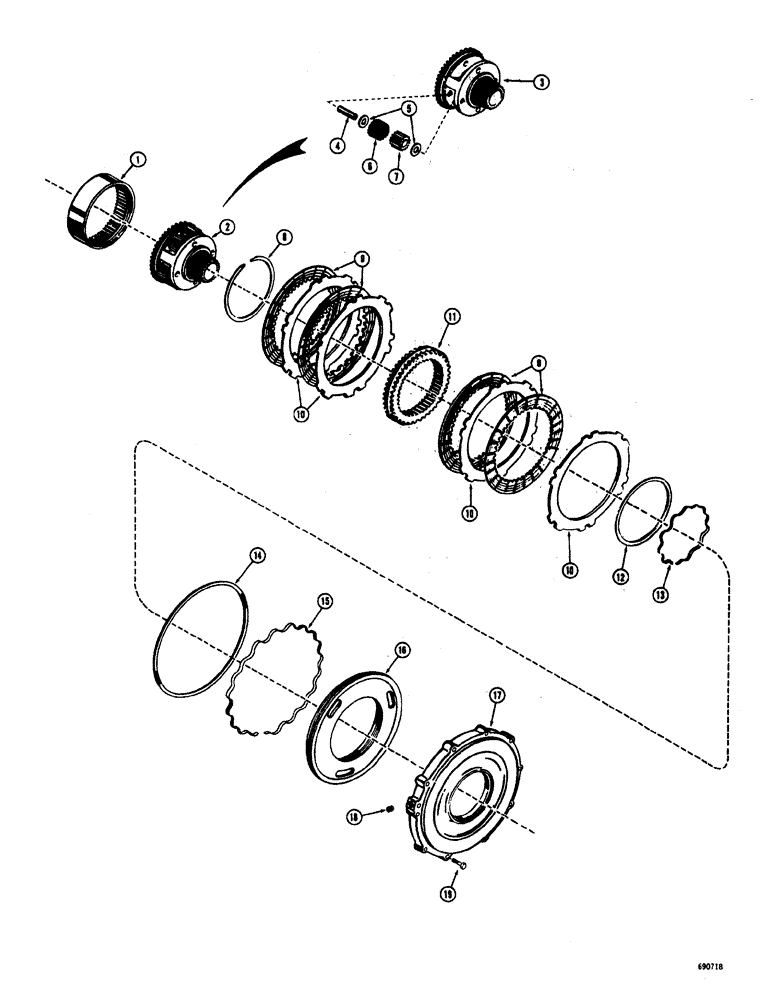

Запчасти Case W20 (108) - L46456 TRANS. FORWARD CLUTCH AND PLANETARY BEFORE TRANSMISSION S.N. 35042 (06) - POWER TRAIN

1

A12712

GEAR

reverse ring

1шт.

2

L32405

CARRIER

ASSEMBLY forward clutch planetary. When stock is exhausted, order L35533 carrier assy for service, Includes Ref: 3-7

1шт.

2

L35533

CARRIER

ASSEMBLY forward clutch planetary, Includes Ref: 3-7

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER forward clutch planetary

1шт.

4

A12705

SPINDLE

pinion

4шт.

5

A12700

WASHER

thrust

8шт.

6

A12659

NEEDLE

ROLLER planetary pinion

88шт.

7

A16369

PINION

SET planetary, matched set of 4

1шт.

8

A12687

RING

snap retaining

1шт.

9

A19993

PLATE

clutch, internal spline

4шт.

10

L34015

PLATE

clutch, external spline. When stock is exhausted, replace all four plates with (4) L33958 plates

4шт.

10

L33958

PLATE

clutch, external spline

4шт.

11

D47470

GEAR WHEEL

ring, forward clutch. When stock is exhausted, order L33976 gear for service

1шт.

11

L33976

GEAR

ring, forward clutch. When stock is exhausted, order L35535 gear for service

1шт.

11

L35535

GEAR

ring, forward clutch

1шт.

A40023

SEAL

AND EXPANDER KIT forward clutch, small, Includes Ref: 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL ring type, small

1шт.

13

NSS

NOT SOLD SEPARAT

EXPANDER forward clutch seal, small

1шт.

A40021

KIT

SEAL AND EXPANDER forward clutch, large, Includes Ref: 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL ring type, large

1шт.

15

NSS

NOT SOLD SEPARAT

EXPANDER forward clutch seal, large

1шт.

16

L30354

PISTON ASSY.

forward clutch

1шт.

17

D47471

HOUSING

forward clutch piston

1шт.

18

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

pipe, square socket head, 1/4" NPT

1шт.

19

121-214

SPARE PART hex head cap, 3/8" - 16 NC x 1-1/2"

10шт.
