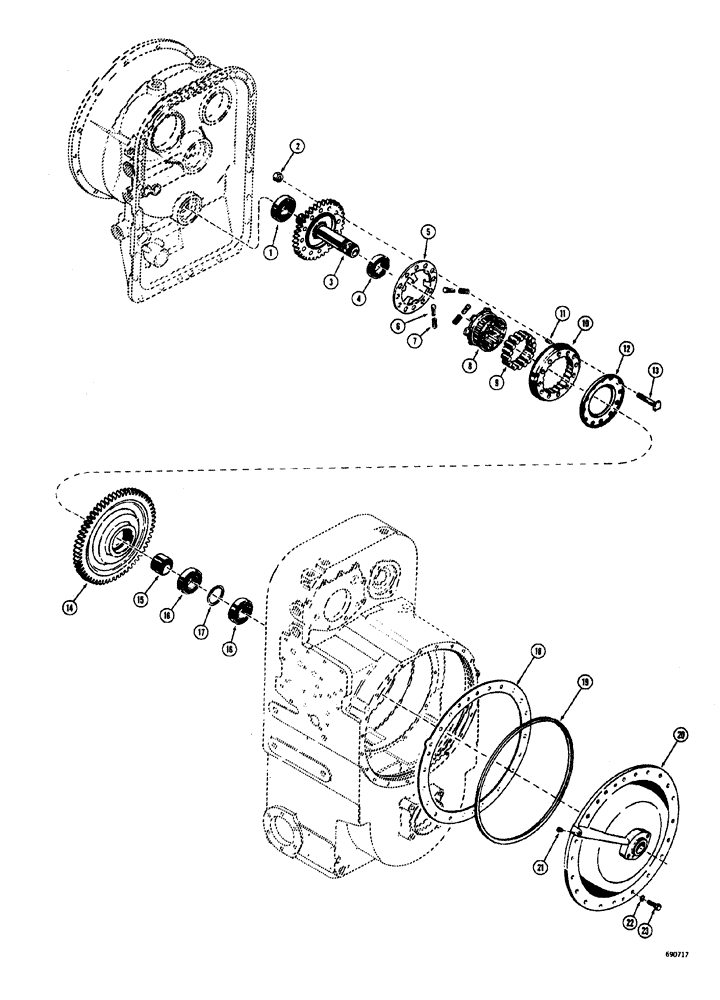

Запчасти Case W20 (106) - L46456, L52101 AND L55661 TRANS. TURBINE DRIVEN GEARS AND FREEWHEEL UNIT (06) - POWER TRAIN

1

D47572

BEARING

ball type

1шт.

2

L31163

SPECIAL NUT

hex, lock, special, 3/8" - 24 NF

12шт.

3

L32401

GEAR

AND SHAFT ASSEMBLY driven, second turbine. When stock is exhausted, order L35508 gear and shaft assembly for service

1шт.

3

L35508

GEAR

AND SHAFT ASSEMBLY driven, second turbine

1шт.

4

D47573

BALL BEARING

ball type

1шт.

D47640

KIT

over running clutch, before transmission S.N. 35042. When stock is exhausted, order L35003 kit for service, Includes Ref: 5-12

1шт.

L35003

KIT

free wheel clutch, transmission S.N. 35042 and after, as production item, prior to transmission S.N. 35042 as service replacement, Includes Ref: 5-12

1шт.

5

D47645

PLATE ASSY.

retaining, D47640 kit only

1шт.

5

L33962

PLATE

retaining, L35003 kit only

1шт.

6

D47644

PIN

spring positioning

3шт.

7

D48863

SPRING

plate

3шт.

8

D47641

CAGE

freewheel roller, D47640 kit only

1шт.

8

L33963

NEEDLE BEARING CAGE

freewheel roller, L35003 kit only

1шт.

9

L31161

ROLLER

freewheel

15шт.

D47642

CAM

ASSEMBLY freewheel, D47640 kit only

1шт.

L33964

CAM

SPARE PART CAM ASSEMBLY freewheel, L35003 kit only, Includes Ref: 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

CAM freewheel

1шт.

11

138-294

LOCK PIN,1/8" x 1/4", Slotted

Cam

1шт.

12

D47454

RESERVOIR

COLLECTOR PLATE lube

1шт.

13

D47455

SQUARE BOLT

special

12шт.

14

D47456

GEAR

driven, first turbine

1шт.

15

D48331

BUSHING

SPACER bearing

1шт.

16

D47572

BEARING

ball type

2шт.

17

D47458

THRUST WASHER,36.58mm ID x 41.91mm OD x 1.32mm Thk

SPACER bearing

1шт.

18

D47576

GASKET

front cover

1шт.

19

L32412

RING

seal

1шт.

20

L32413

COVER

front

1шт.

21

221-23

PLUG

pipe, square socket head, 3/8" NPT

1шт.

22

92-6

LOCK WASHER,3/8"

19шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

19шт.
