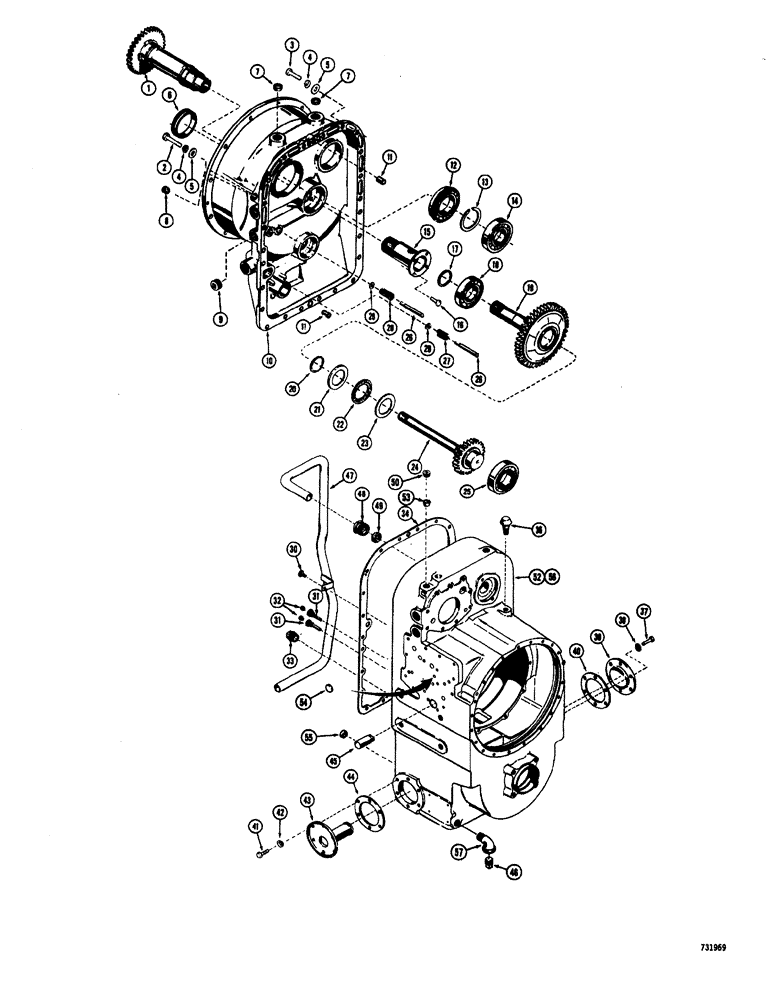

Запчасти Case W20 (102) - L46456, L52101 AND L55661 TRANS. TORQUE CONVERTER HOUSING, GEARS AND TRANSMISSION HOUSING (06) - POWER TRAIN

1

L32399

GEAR

driven

1шт.

2

13-744

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

1шт.

3

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

23шт.

4

92-7

LOCK WASHER,7/16"

24шт.

5

95-7

WASHER,7/16"

standard wrot, 7/16"

24шт.

D46602

HOUSING ASSY.

torque converter, before S.N. 33582. When stock is exhausted, order L33923

1шт.

L33923

HOUSING

ASSEMBLY torque converter, Includes Ref: 6-11

1шт.

6

D47509

SLEEVE

housing

1шт.

7

D47511

PLUG

housing, upper

2шт.

8

D47510

PLUG

housing, upper R.H. side

1шт.

9

D47512

PLUG

housing, center R.H. side

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING torque converter

1шт.

11

L31168

PIN

dowel

2шт.

12

D47567

BEARING

ball type

1шт.

13

A12663

RING

snap external type

1шт.

14

L32867

BEARING ASSY

ball type, used before transmission S.N. 51828

1шт.

14

L31001

BEARING

ball type, used transmission S.N. 51828 and after

1шт.

15

D47444

SLEEVE

converter ground

1шт.

16

121-105

BOLT,Hex, 5/16" - 18 x 3/4"

hex head cap, 5/16" - 18 NC x 3/4"

4шт.

17

D47445

SEAL

ring type, second turbine

1шт.

18

D47568

BALL BEARING,2.1654" ID x 3.5433" OD x 0.7087"

ball type

1шт.

19

L32400

GEAR

AND SHAFT drive, second turbine, before S.N. 31982. When stock is exhausted, order L33930 gear and shaft for service

1шт.

19

L33930

GEAR

GEAR AND SHAFT drive, second turbine

1шт.

20

D47445

SEAL

ring type

1шт.

21

D47569

RACE

thrust, front

1шт.

22

D47570

BEARING ASSY

thrust, roller type

1шт.

23

D47571

RACE

thrust, rear

1шт.

24

D47447

GEAR

AND SHAFT drive, first turbine

1шт.

25

L31015

BEARING

ball type

1шт.

26

D47879

PIN

valve guide

2шт.

27

D47448

SPRING

lube overage

1шт.

28

L31038

SPRING

converter regulator

1шт.

29

L31023

WASHER

VALVE torque converter

2шт.

30

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

hex head cap, 3/8" - 16 NC x 5/8"

1шт.

31

D47463

TUBE

oil level, add and full position, before transmission S.N. 51828

2шт.

32

221-662

PLUG,Hex Hd, 1/4"-18

add and full position, transmission oil

2шт.

33

221-1007

SPARE PART

PLUG oil filter

1шт.

34

D48358

GASKET

torque converter to transmission housing

1шт.

35

RESERVED

1шт.

36

A12670

X

BREATHER transmission

1шт.

37

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

38

92-6

LOCK WASHER,3/8"

6шт.

39

D47461

COVER

transmission housing, R.H. side

1шт.

40

A12664

GASKET

cover

1шт.

41

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

42

92-6

LOCK WASHER,3/8"

6шт.

43

L31082

STRAINER ELEMENT

transmission suction line

1шт.

44

A12664

GASKET

strainer

1шт.

45

D47462

PIN

anchor

1шт.

46

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

transmission drain

1шт.

47

L32788

TUBE,1.25" OD

suction

1шт.

48

L31083

NUT

special

1шт.

49

L31084

SEAL

RING

1шт.

50

221-1025

PLUG

pipe, square socket head, 3/4" NPT

1шт.

51

RESERVED

1шт.

52

L35838

HOUSING

transmission, before transmission S.N. 35042. When stock is exhausted, order L35981 housing kit for service

1шт.

L35981

HOUSING

KIT before transmission S.N. 35042, Includes Ref: 52-55

1шт.

52

NSS

NOT SOLD SEPARAT

HOUSING transmission

1шт.

53

L31080

PLUG

remote filter

1шт.

54

NSS

NOT SOLD SEPARAT

PLUG low clutch feed

1шт.

55

L31051

PLUG

SPARE PART disconnect lever

1шт.

56

L33965

SPARE PART transmission, S.N. 35042 and after.

1шт.

57

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, models with under carriage guards

1шт.
