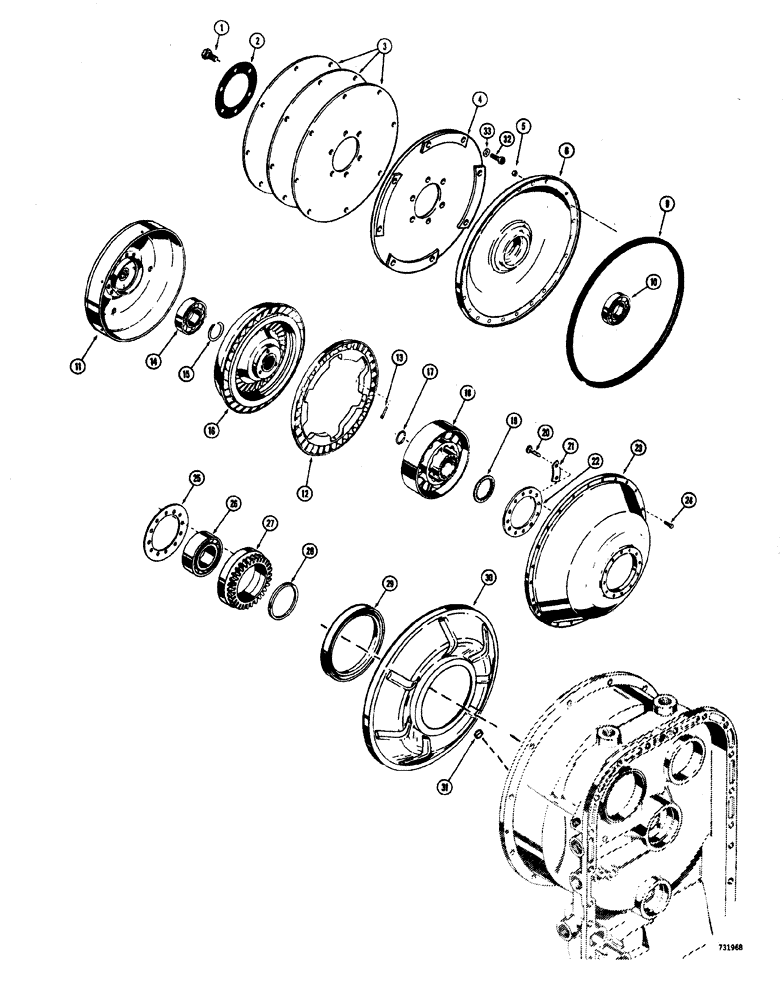

Запчасти Case W20 (100) - L55661 TRANS. FRONT COVER INPUT SHAFT AND TORQUE CONVERTER, TRANS. S.N. 51828 AND AFTER (06) - POWER TRAIN

1

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

6шт.

2

D46334

PLATE

flex disc retaining

1шт.

3

D46335

DISC

flex drive

3шт.

4

L35093

DISC

AND WASHERS flex plate drive

1шт.

5

131-308

LOCK

NUT hex, 5/16" - 24 NF)

24шт.

6

D46337

COVER

converter pump

1шт.

7

R14979

SCREW

hex, special, at engine flywheel, grade 8

8шт.

8

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

special

8шт.

9

A12674

RING

seal

1шт.

10

L33908

BEARING

ball type

1шт.

L33614

TURBINE

ASSEMBLY torque converter, first, Includes Ref: 11-13

1шт.

11

NSS

NOT SOLD SEPARAT

TURBINE HOUSING - torque converter, first

1шт.

12

NSS

NOT SOLD SEPARAT

TURBINE - torque converter, first

1шт.

13

L33615

PIN

turbine

6шт.

14

L31004

BEARING

ball type

1шт.

15

D47442

RING

snap bearing retaining

1шт.

16

L33932

WHEEL

SPARE PART TURBINE ASSEMBLY torque converter, second

1шт.

17

D47433

RING

snap external type

1шт.

18

L33617

STATOR

torque converter

1шт.

19

D47435

BUSHING

SPACER stator

1шт.

20

28-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 8

hex head cap, 1/4" - 28 NF x 1-1/4"

12шт.

21

D47436

PLATE, LOCKING

6шт.

22

D47437

RETAINER

pump

1шт.

L33931

HOUSING

PUMP ASSEMBLY torque converter, Includes Ref: 23-26

1шт.

23

NSS

NOT SOLD SEPARAT

PUMP torque converter

1шт.

24

A12695

BOLT

special

24шт.

25

D48208

GASKET

pump

1шт.

26

D47531

BALL BEARING,55mm ID x 100mm OD x 33.34mm W

ball type

1шт.

27

L35399

GEAR

drive

1шт.

28

D47441

SEAL

ring type, converter housing sleeve

1шт.

L34000

DIAPHRAGM

ASSEMBLY converter, Includes Ref: 29, 30

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL oil

1шт.

30

NSS

NOT SOLD SEPARAT

DIAPHRAGM converter

1шт.

31

L30301

PLUG

converter housing

1шт.

32

R14979

SCREW

special, self locking

8шт.

33

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

special, cupped

8шт.
