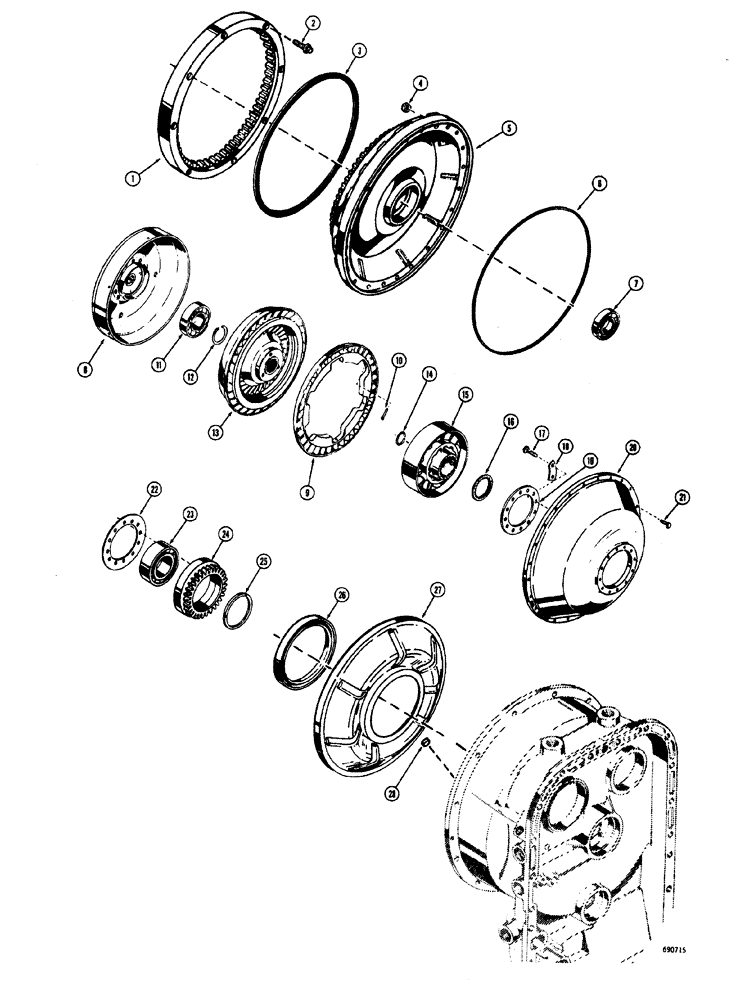

Запчасти Case W20 (098) - L46456 AND L52101 TRANS. FRONT COVER INPUT SHAFT AND TORQUE CONVERTER BEFORE TRANS. S.N. 51828 (06) - POWER TRAIN

A16643

CONVERTER

KIT drive ring, Includes Ref: 1-3

1шт.

1

A16644

RING

converter drive

1шт.

2

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

ferry cap, 3/8" - 16 NC x 1-1/4"

8шт.

3

A16645

SEALING RING

RING

1шт.

4

25-135

SLOTTED NUT,5/16"-24, G5

hex, slotted, 5/16" - 24 NF

24шт.

5

L30355

COVER

converter pump

1шт.

6

A12674

RING

seal

1шт.

7

L33908

BEARING

ball type

1шт.

L33614

TURBINE

ASSEMBLY torque converter, first, Includes Ref: 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

TURBINE HOUSING torque converter, first

1шт.

9

NSS

NOT SOLD SEPARAT

TURBINE torque converter, first

1шт.

10

L33615

PIN

turbine

6шт.

11

L31004

BEARING

ball type

1шт.

12

D47442

RING

snap bearing retaining

1шт.

13

L33616

SPARE PART

TURBINE ASSEMBLY torque converter, second. When stock is exhausted, order L33932 turbine for service

1шт.

13

L33932

WHEEL

SPARE PART TURBINE ASSEMBLY torque converter, second

1шт.

14

D47433

RING

snap external type

1шт.

15

L33617

STATOR

torque converter

1шт.

16

D47435

BUSHING

SPACER stator

1шт.

17

28-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 8

hex head cap, 1/4" - 28 NF x 1-1/4"

12шт.

18

D47436

PLATE, LOCKING

6шт.

19

D47437

RETAINER

pump

1шт.

L33618

PUMP

ASSEMBLY torque converter. When stock is exhausted, order L33931 pump for service

1шт.

L33931

HOUSING

ASSEMBLY torque converter, Includes Ref: 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

PUMP torque converter

1шт.

21

A12695

BOLT

special

24шт.

22

D48208

GASKET

pump

1шт.

23

D47531

BALL BEARING,55mm ID x 100mm OD x 33.34mm W

ball type

1шт.

24

L32398

X

GEAR drive. When stock is exhausted, order L35399 gear for service

1шт.

24

L35399

GEAR

drive

1шт.

25

D47441

SEAL

ring type, converter housing sleeve

1шт.

L34000

DIAPHRAGM

ASSEMBLY converter, Includes Ref: 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL oil

1шт.

27

NSS

NOT SOLD SEPARAT

DIAPHRAGM converter

1шт.

28

L30301

PLUG

converter housing

1шт.
