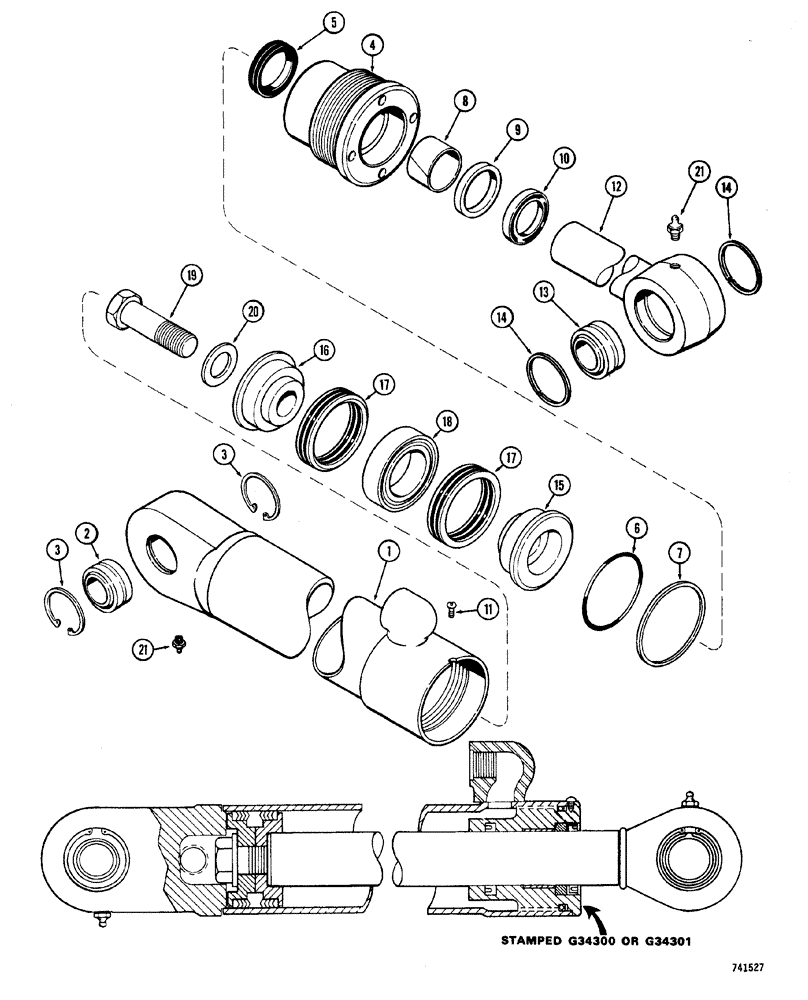

Запчасти Case W20 (218) - G34300 AND G34301 STEERING CYLINDERS GLAND W/ CENTER BEARING USED ON TRAC. S/N 9112952 & AFTER (05) - STEERING

G34300

CYLINDER

ASSEMBLY - steering, R.H. (Cylinder part number stamped on gland), Includes Ref: 1-21

1шт.

G34301

STEERING CYLINDER

ASSEMBLY - steering, L.H. (Cylinder part number stamped on gland), Includes Ref: 1-21

1шт.

1

G32860

TUBE,24.08" L

ASSEMBLY - cylinder body, R. H., Includes Ref: 2, 3

1шт.

1

G32861

TUBE,24.08" L

ASSEMBLY - cylinder body, L.H., Includes Ref: 2, 3

1шт.

2

L12570

BUSHING

BEARING - tube Pivot (Self -aligning)

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap bearing retaining

2шт.

G34328

GLAND

ASSEMBLY - with center bearing, Includes Ref: 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - packing

1шт.

5

D36969

CUP

SEAL - piston rod (1-1/2" x 2" x 13/32")

1шт.

Part of seal kit P/N G34332

1шт.

6

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

GLAND (3" x 3-1/4" x 1/8")

1шт.

Part of seal kit P/N G34332

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

gland, "O"ring backup

1шт.

Part of seal kit P/N G34332

1шт.

8

G34302

BEARING

center (4-3/32" x 1-1/4" x 1/16")

1шт.

Part of seal kit P/N G34332

1шт.

9

NSS

NOT SOLD SEPARAT

RING - center bearing backup

1шт.

10

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod outer (1-1/2" x 2" x 5/16")

1шт.

Part of seal kit P/N G34332

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

gland lock (#8 - 32 NC x 1/4" self-tapping)

1шт.

12

G33449

CYLINDER,38.1mm OD x 583.18mm L

ROD ASSEMBLY - piston (1-1/2" dia.)

1шт.

13

L12570

BUSHING

BEARING - piston rod pivot (Self-aligning)

1шт.

14

L12571

SNAP RING,#218, 2.321", Int, Spiral

bearing retaining

2шт.

15

G33150

PISTON

split (Rod end)

1шт.

16

D28366

PISTON

split (Bolt end)

1шт.

G33151

PACKING

PACKING ASSEMBLY - piston, Includes Ref: 17, 18

1шт.

Part of seal kit P/N G34332

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

piston (3/4" x 2-1/2" NF hex)

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

piston bolt (7/8" x 1-3/8" x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(1/8" NPT straight)

2шт.

G34332

SEAL

KIT - cylinder repair, Inclues Refs. 5, 6, 7, 8, 10 and G33151

1шт.
