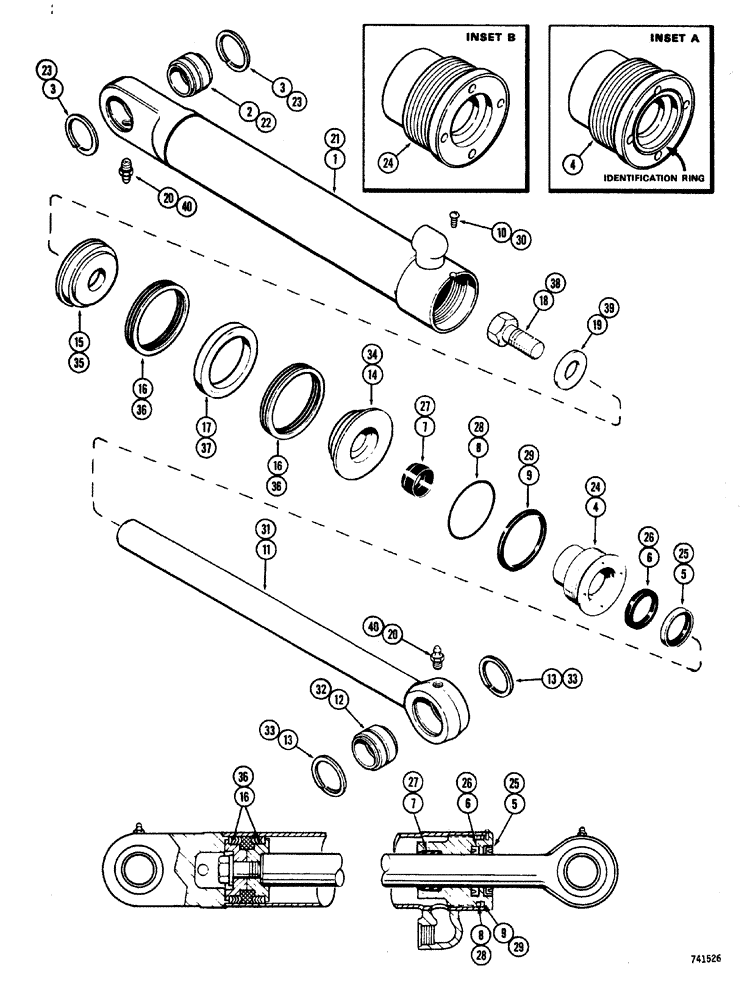

Запчасти Case W20 (216) - G33447 AND G33448 STEERING CYLINDERS, WITH GLAND IDENTIFICATION RING USED BEFORE TRAC. S/N 9112952 (05) - STEERING

G33447

SPARE PART steering, L.H. (3" dia x 16" stroke) Interchanges with G34301, See Figure: 218 (Cylinder part number stamped on gland), Includes Ref: 1-20

1шт.

G33448

SPARE PART ASSEMBLY - steering, R.H. (3" dia x 15" stroke) Interchanges with G34300, See Figure: 218, Includes Ref: 1-20

1шт.

1

G32861

TUBE,24.08" L

ASSEMBLY - cylinder body L.H., Includes Ref: 2, 3

1шт.

1

G32860

TUBE,24.08" L

ASSEMBLY - cylinder body R.H., Includes Ref: 2, 3

1шт.

2

L12570

BUSHING

BEARING - tube (Self-aligning)

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

snap, bearing retaining

2шт.

G33485

GLAND

ASSEMBLY, Includes Ref: 4-9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - see inset A

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - niston rod outer (1-1/2" x 2" x 5/16")

1шт.

Part of seal kit P/N G32292

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2" x 21" x 13/32")

1шт.

Part of seal kit P/N G32292

1шт.

7

D36969

CUP

WIPER - piston rod, inner

1шт.

Part of seal kit P/N G32292

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

GLAND (3" x 3-1/4" x 1/8")

1шт.

Part of seal kit P/N G32292

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

GLAND "O"ring backup

1шт.

Part of seal kit P/N G32292

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

GLAND lock (#8 - 32 NC x 1/4" self tapping)

1шт.

11

G33449

CYLINDER,38.1mm OD x 583.18mm L

ROD ASSEMBLY - piston (1-1/2" dia.), Includes Ref: 12, 13

1шт.

12

L12570

BUSHING

ROD (Self-aligning)

1шт.

13

L12571

SNAP RING,#218, 2.321", Int, Spiral

bearing, retaining

2шт.

14

G33150

PISTON

split (Rod end)

1шт.

15

D28366

PISTON

split (Bolt end)

1шт.

G33151

PACKING

PACKING ASSEMBLY - piston, Includes Ref: 16, 17

1шт.

Part of seal kit P/N G32292

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - ' V"" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - packing, center, bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

piston, retaining (3/4" x 2-1/2" NF hex)

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

BOLT retaining (7/8" x 1-3/8" x 9/64")

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(1/8" NPT straight)

2шт.

G32292

KIT

SEAL - cylinder, repair, Includes Refs. 5, 6, 7, 8, 9 and G33151

1шт.

G32773

CYLINDER

ASSEMBLY - steering, L.H. (3" dia. x 15" stroke), Interchanges with G34301, See Figure: 218, Includes Ref: 21-38, with gland I.D. ring, used before Tract. Sn 9112952

1шт.

G32774

SPARE PART ASSEMBLY - steering, R.H. (3" dia. x 15" stroke), Interchanges with G34300, See Figure: 218, Includes Ref: 21-38, with gland I.D. ring, used before Tract. Sn 9112952

1шт.

21

G32860

TUBE,24.08" L

ASSEMBLY - cylinder, R.H, Includes Ref: 22, 23

1шт.

21

G32861

TUBE,24.08" L

ASSEMBLY - cylinder, L.H, Includes Ref: 22, 23

1шт.

22

L12570

BUSHING

BEARING - tube (Self-aligning)

1шт.

23

L12571

SNAP RING,#218, 2.321", Int, Spiral

bearing, retaining

2шт.

G32734

GLAND

ASSEMBLY, Includes Ref: 24-30

1шт.

24

NSS

NOT SOLD SEPARAT

GLAND - see inset B

1шт.

25

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod outer (1-1/2" x 2" x 5/16")

1шт.

Part of seal kit P/N G32292

1шт.

26

D36969

CUP

SEAL piston rod (1-1/2" x 2" x 13/32")

1шт.

Part of seal kit P/N G32292

1шт.

27

D27706

WIPER SEAL

WIPER piston rod, inner

1шт.

Part of seal kit P/N G32292

1шт.

28

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

GLAND (3" x 3-1/4" x 1/8")

1шт.

Part of seal kit P/N G32292

1шт.

29

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

gland, "O"ring backup

1шт.

Part of seal kit P/N G32292

1шт.

30

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

gland lock, self-tapping

1шт.

31

G32863

ROD

ASSEMBLY - piston (1-1/2" dia.) Order one each G33449 Rod, G33150 piston and G34328 gland assembly for service, See Figures: 216, Ref. 4, 11, 14, Includes Ref: 32, 33

1шт.

32

L12570

BUSHING

BEARING - rod (Self-aligning)

1шт.

33

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap bearing retaining

2шт.

34

D28365

PISTON

split (Rod end)

1шт.

35

D28366

PISTON

split (Bolt end)

1шт.

G33151

PACKING

PACKING ASSEMBLY - piston, Includes Ref: 36, 37

1шт.

Part of seal kit P/N G32292

1шт.

36

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - V type

2шт.

37

NSS

NOT SOLD SEPARAT

RING - packing center bearing

1шт.

38

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

piston retaining (3/4" x 2-1/2" NF hex)

1шт.

39

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

BOLT retaining, (7/8" x 1-3/8" x 9/64") Includes Ref: 40

1шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grese (1/8" NPT, straight)

2шт.

G32292

KIT

SEAL KIT cylinder repair, Includes Refs. 25, 26, 27, 28, 29 and G33151

1шт.
