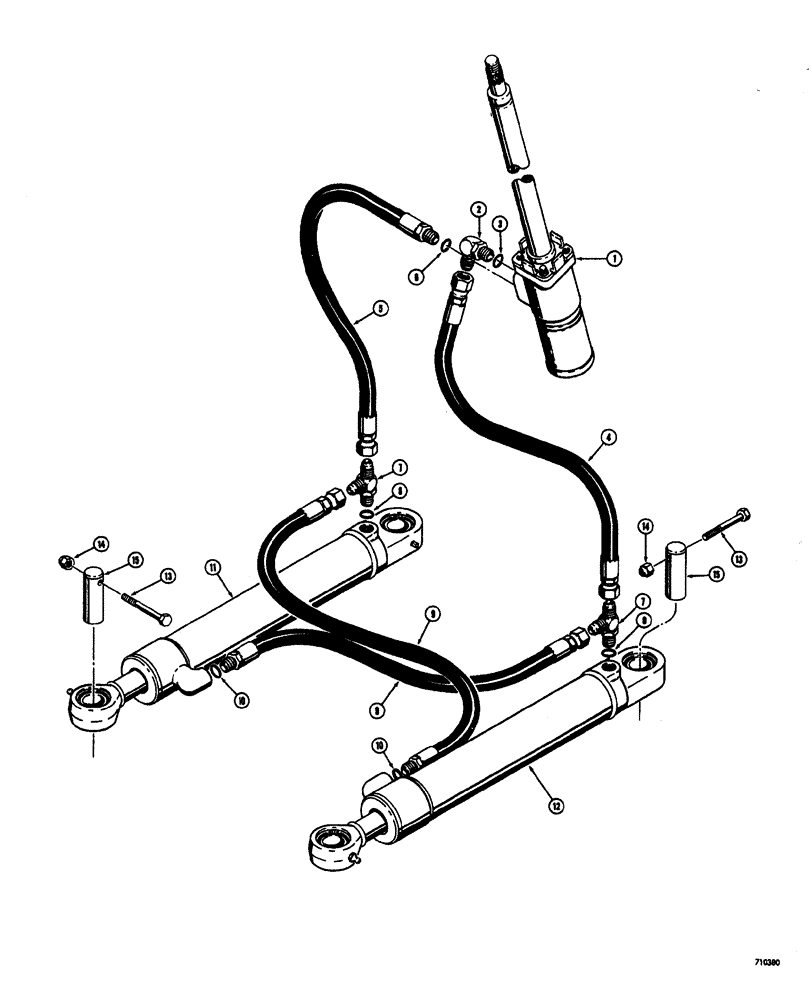

Запчасти Case W20 (214) - STEERING HYDRAULICS STEERING CYLINDER HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering, See parts list Figure: 206

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes Ref 3

1шт.

4

L50016

HOSE

steering gear to elbow at R H steering cylinder (35" long)

1шт.

5

L50015

HOSE

steering gear to elbow at L H steering cylinder (30" long)

1шт.

7

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

TEE - adjustable, hydraulic, Includes Ref: 8

2шт.

8

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

L47884

HOSE

crossover, cylinder (35-1/2" long)

2шт.

10

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

REF

INSTRUCTION

CYLINDER - hydraulic, L H steering (3" I.D. x 15" stroke) See Figures: 216 - 218 for proper cylinder

1шт.

12

REF

INSTRUCTION

CYLINDER - hydraulic, R.H steering (3" I.D. x 15" stroke) See Figures: 216- 218 for proper cylinder

1шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

4шт.

14

131-6

LOCK NUT,3/8"-16, GC

hex , lock (3/8" - 16 NC)

4шт.

15

L47952

PIN,34.91mm OD x 95.25mm L

cylinder mounting

4шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
