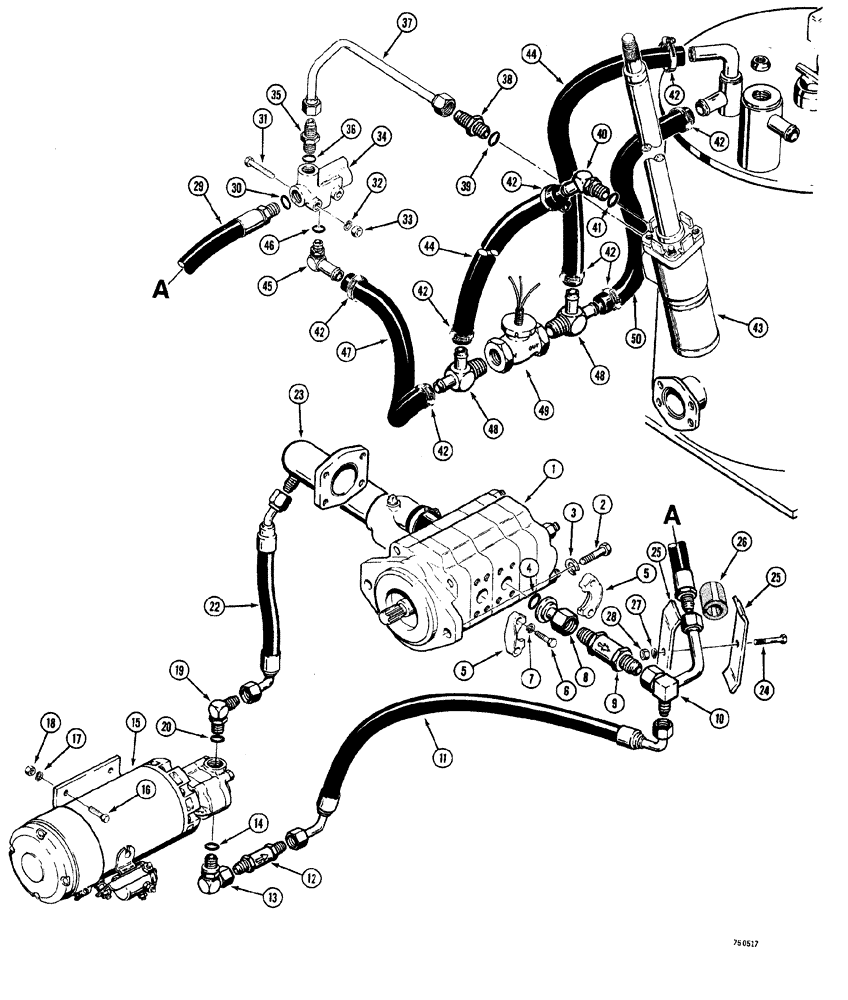

Запчасти Case W20 (213A) - EMERGENCY STEERING HYDRAULICS (05) - STEERING

1

L26895

PUMP

ASSEMBLY - hydraulic. See parts list Figure: 304

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

5

A16961

FLANGE

split

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

L59340

TUBE,0.75" OD x 1.5" L

pump to valve at pump

1шт.

9

L58391

VALVE

check

1шт.

10

L59050

TUBE,0.75" OD x 5.11, 4.28" L

hydraulK

1шт.

11

L59046

HOSE

ASSEMBLY - hydraulic 34" long

1шт.

12

L70819

VALVE

check

1шт.

13

218-5460

FITTING

ELBOW - 90° adiustable, Includes Ref: 14

1шт.

15

L70813

HYDRAULIC STEERING

PUMP AND MOTOR

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

hex 3/8" - 16 NC

4шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref 20

1шт.

21

RESERVED

1шт.

22

L59048

HOSE

ASSEMBLY - hydraulic 7-11/16" long

1шт.

23

REF

INSTRUCTION

TUBE - return (See Figure: 276)

1шт.

24

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

25

L47503

BRACKET

C LAMP - tube

2шт.

26

L47487

BUSHING

SPACER - tube clamp

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

1шт.

29

L50010

HOSE

pump to flow control valve (36-1/2" long)

1шт.

30

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

2шт.

34

L51457

VALVE

ASSEMBLY - flow control, See parts list Figure: 210

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, male, Includes Ref: 36

1шт.

36

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

L50026

TUBE,0.625" OD

SPARE PART flow divider valve to steering gear

1шт.

38

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Male, straight, Incl. Ref 39

1шт.

40

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM - hose barbed (45°) At pump

1шт.

42

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

43

REF

INSTRUCTION

PUMP ASSEMBLY - steering, See parts list Figure: 206

1шт.

44

R21518

LARGE HOSE

HOSE,LARGE low pressure 3/4" x 12" long

2шт.

45

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM - hose barbed (90°) At valve, Includes Ref: 46

1шт.

46

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

47

D95236

HOSE

low pressure 9" long x 3/4" I.D.

1шт.

48

L59572

FITTING

TEE - hose stern

2шт.

49

L58400

PRESSURE SWITCH

flow control

1шт.

50

D24728

HOSE

low pressure 3/4" x 4-1/2" long

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
