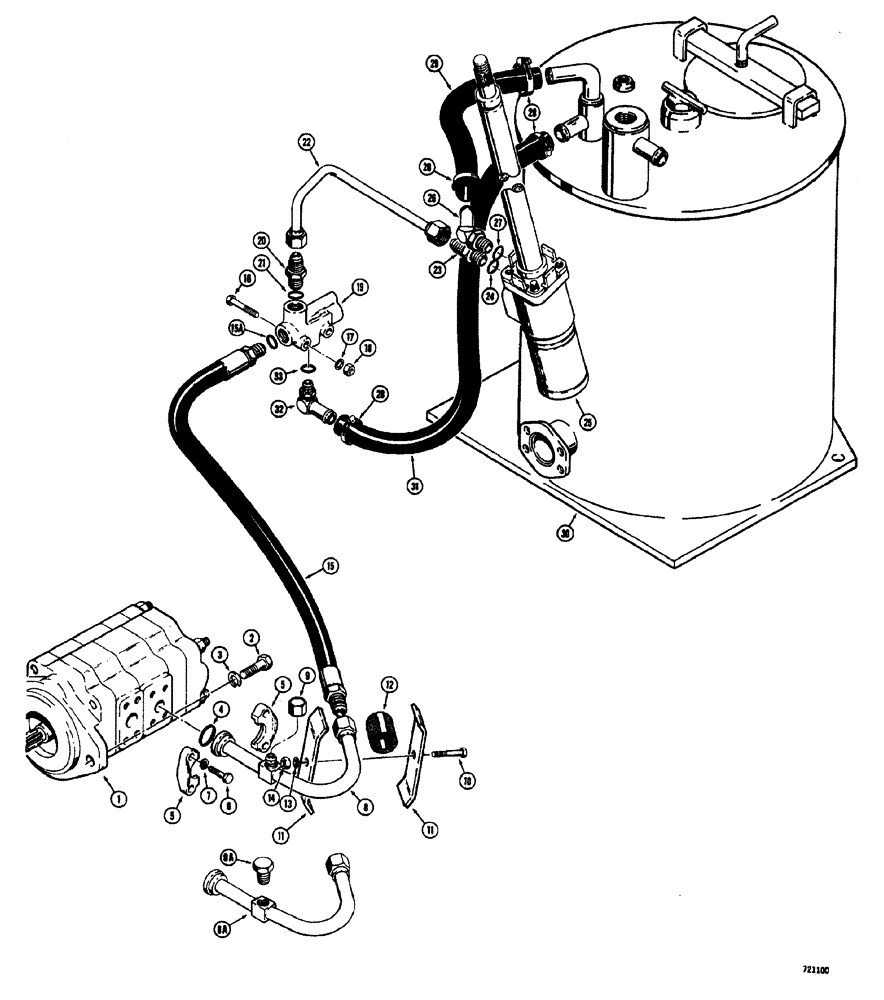

Запчасти Case W20 (212) - STEERING HYDRAULICS PUMP TO RESERVOIR TRACTOR S.N. 9107854 AND AFTER (05) - STEERING

1

L26895

PUMP

ASSEMBLY - hydraulic, See parts list Figure: 304

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403) STEERING HYDRAULICS PUMP TO RESERVOIR TRACTOR S.N. 9107854 AND AFTER

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

5

A16961

FLANGE

split

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

L51302

TUBE

pump to flow control valve, at pump (When stock is exhausted, order L53115 tube and 221-655 plug for service

1шт.

8a

L53115

TUBE,4.42, 3.32" L

pump to flow control valve, at pump

1шт.

9

218-335

CAP,37 Degree, 1 1/16"-12

Tube spud (Used with LSI 302 tube only)

1шт.

9a

221-655

PLUG,Hex Hd, 3/4"-14

tube spud (Used with L53115 tube only)

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

L47503

BRACKET

CLAMP - tube

2шт.

12

L47487

BUSHING

SPACER - tube clamp

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

1шт.

15

L50010

HOSE

pump to flow control valve (36-1/2" long)

1шт.

15a

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

L51457

VALVE

ASSEMBLY - flow control, See parts list Figure: 210

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, male, Includes Ref: 21

1шт.

21

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

L50026

TUBE,0.625" OD

SPARE PART flow divider valve to steering gear

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Male, straight, Incl. Ref 24

1шт.

25

REF

INSTRUCTION

PUMP ASSEMBLY - steering, See parts list Figure: 206

1шт.

26

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM - hose, barbed (45°) At pump, Includes Ref: 27

1шт.

28

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

29

L51062

HOSE

low pressure (Pump to tank) 14" long

1шт.

30

REF

INSTRUCTION

TANK - hydraulic reservoir, See parts list Figure: 232

1шт.

31

L51061

HOSE,0.75" ID x 21.00", SAE 100R3

low pressure (Tank to flow control valve) 21" long

1шт.

32

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM - hose, barbed (90°) At valve, Includes Ref: 33

1шт.

33

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
