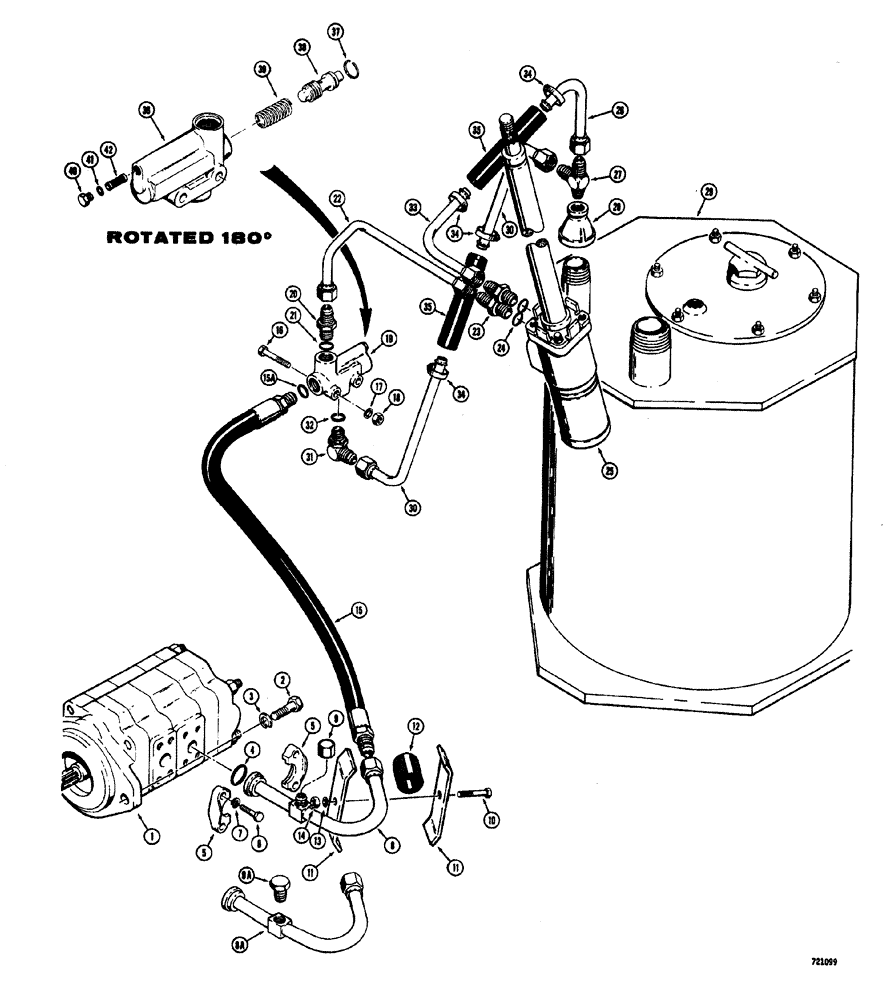

Запчасти Case W20 (210) - STEERING HYDRAULICS PUMP TO RESERVOIR BEFORE TRACTOR S.N. 9107854 (05) - STEERING

1

L26895

PUMP

ASSEMBLY - hydraulic, See parts list Figure: 304

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403) STEERING HYDRAULICS PUMP TO RESERVOIR BEFORE TRACTOR S.N. 9107854

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

5

A16961

FLANGE

split

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4 ^mшт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

L51302

TUBE

pump to flow control valve, at pump (When stock is exhausted, order L53115 tube and 221-655 plug for service

1шт.

8a

L53115

TUBE,4.42, 3.32" L

pump to flow control valve at pump

1шт.

9a

221-655

PLUG,Hex Hd, 3/4"-14

tube spud (Used with L53115 tube only)

1шт.

9

2L8-335

CAP - tube spud (Used with L51302 tube only)

1шт.

9

218-335

CAP,37 Degree, 1 1/16"-12

Tube spud

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

L47503

BRACKET

CLAMP - tube

2шт.

12

L47487

BUSHING

SPACER - tube clamp

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

1шт.

15

L50010

HOSE

pump to flow control valve (36-1/2" long)

1шт.

15a

L218-5007

SEAL - 'Oring

1шт.

16

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

L51457

VALVE

ASSEMBLY - flow control (See parts list below)

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight male, Includes Ref: 21

1шт.

21

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

L50026

TUBE,0.625" OD

SPARE PART flow control valve to steering pump

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Male, straight, Incl. Ref 24

2шт.

24

2L8-5006

SEAL - f O'ring

1шт.

25

REF

INSTRUCTION

PUMP ASSEMBLY - steering, See parts list Figure: 206

1шт.

26

L51354

TUBE,0.625" OD x 5.55, 5.55" L

steering gear to hydraulic tank (At tank)

1шт.

27

918-615

TEE - male, hydraulic

1шт.

28

221-1736

REDUCER - pipe, Serial Range: (1-1/4"-1/2"!)

1шт.

29

REF

INSTRUCTION

TANK - hydraulic reservoir, See parts list Figure: 230

1шт.

30

L51352

TUBE,0.625" OD x 8.2, 3.15" L

flow control valve to hydraulic tank

2шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref 32

1шт.

32

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

L51538

TUBE,4.6, 4.6" L

steering gear to hydraulic tank (At gear)

1шт.

34

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

hose

4шт.

35

L51361

HOSE,0.63" ID x 4.00", SAE 30R2 Type 1

low pressure (4" long)

2шт.

L51457

VALVE

hydraulic flow control, Includes Ref: 36-42

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - flow control valve, L51457

1шт.

37

D46214

CIRCLIP

snap - spool retaining, L51457 flow control valve

1шт.

38

L33718

VALVE

SPOOL - flow control, L51457

1шт.

39

D46216

SPRING

spool, L51457 flow control valve

1шт.

40

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Filter access, Includes Ref 41, Flow control valve

1шт.

41

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

Flow control valve

1шт.

42

L33959

FILTER, ENGINE OIL

FILTER, OIL SCREEN - filter, flow control valve

1шт.
