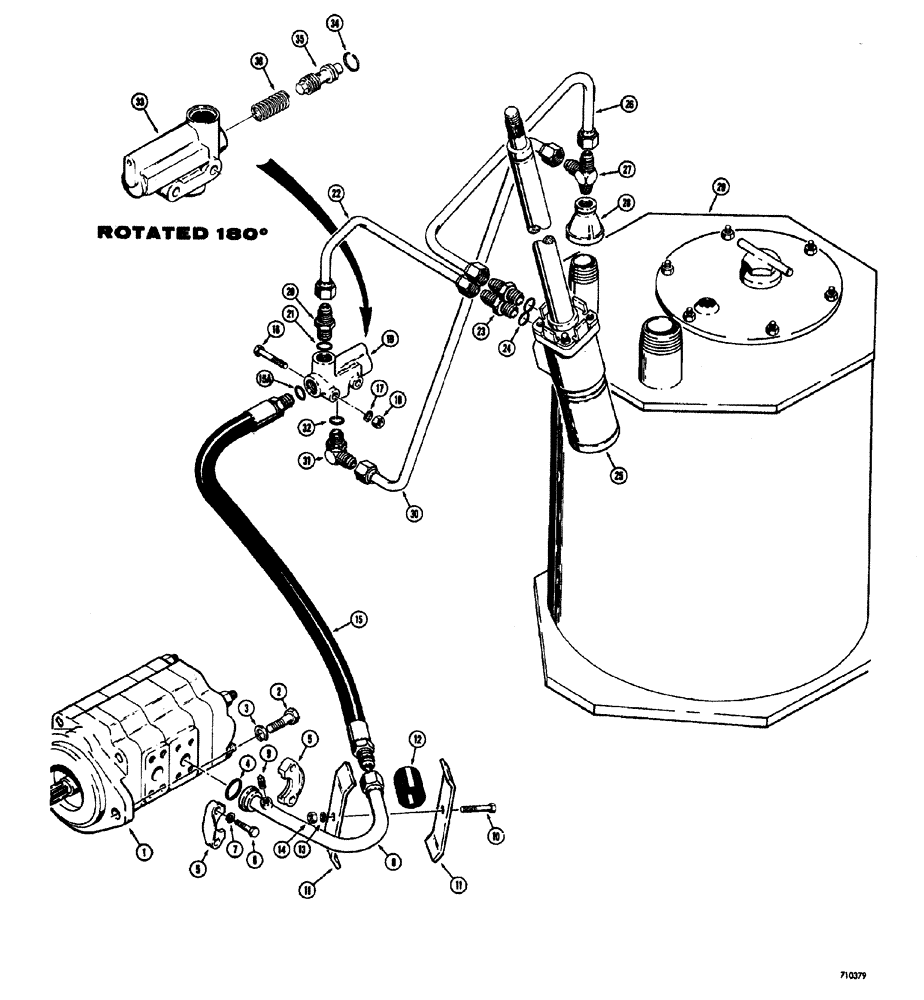

Запчасти Case W20 (208) - STEERING HYDRAULICS PUMP TO RESERVOIR USED BEFORE TRACTOR S.N. 9107854 (05) - STEERING

1

L26895

PUMP

ASSEMBLY - hydraulic carts, See parts list Figure: 304

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER (PRIOR TO S/N 9115403) STEERING HYDRAULICS PUMP TO RESERVOIR USED BEFORE TRACTOR S.N. 9107854

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

5

A16961

FLANGE

split

2шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

L47639

SPARE PART pump to flow control valve, at pump (When stock is exhausted, order L53115 tube and 221-655)

1шт.

9

221-11

PLUG,Sq Hd, 1/8"-27

pipe, square head (1/8" NPT) If used

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

L47503

BRACKET

CLAMP - tube

2шт.

12

L47487

BUSHING

SPACER - tube clamp

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

1шт.

15

L50010

HOSE

pump to flow divider valve (36-1/2" long)

1шт.

15a

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

L50024

VALVE

ASSEMBLY -flow control (Before tractor Sn 9107697) See parts list below

1шт.

19

L51457

VALVE

ASSEMBLY - flow control (Tractor Sn 9107697 and after as production item, prior to Sn 9107697)

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight male, Includes Ref: 21

1шт.

21

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

L50026

TUBE,0.625" OD

SPARE PART flow divider valve to steering gear

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Male, straight, Incl. Ref 24

2шт.

25

REF

INSTRUCTION

PUMP ASSEMBLY - steering (Parts list Figure: 206)

1шт.

26

L50017

TUBE,0.625" OD

steering gear to hydraulic tank (When stock is exhausted, order L51354 tube, L51538 tube, L51361 hose and (2) - 214-254 clamps for service. See Figure: 210

1шт.

27

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

male, hydraulic

1шт.

29

REF

INSTRUCTION

TANK - hydraulic reservoir (Parts list Figure: 230)

1шт.

30

L50019

TUBE,0.625" OD x 17.4, 6.3" L

flow control valve to hydraulic tank (When stock is exhausted, order (2) L51352 tubes, (1) L51361 hose and (2) 214-254 clamps for service. See Figure: 210

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref 32

1шт.

32

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

L50024

VALVE

hydraulic, flow control, Includes Ref: 33-36

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - flow control valve

1шт.

34

D46214

CIRCLIP

snap, spool retaining

1шт.

35

L337L8

SPOOL - flow control valve

1шт.

36

D46216

SPRING

spool

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
