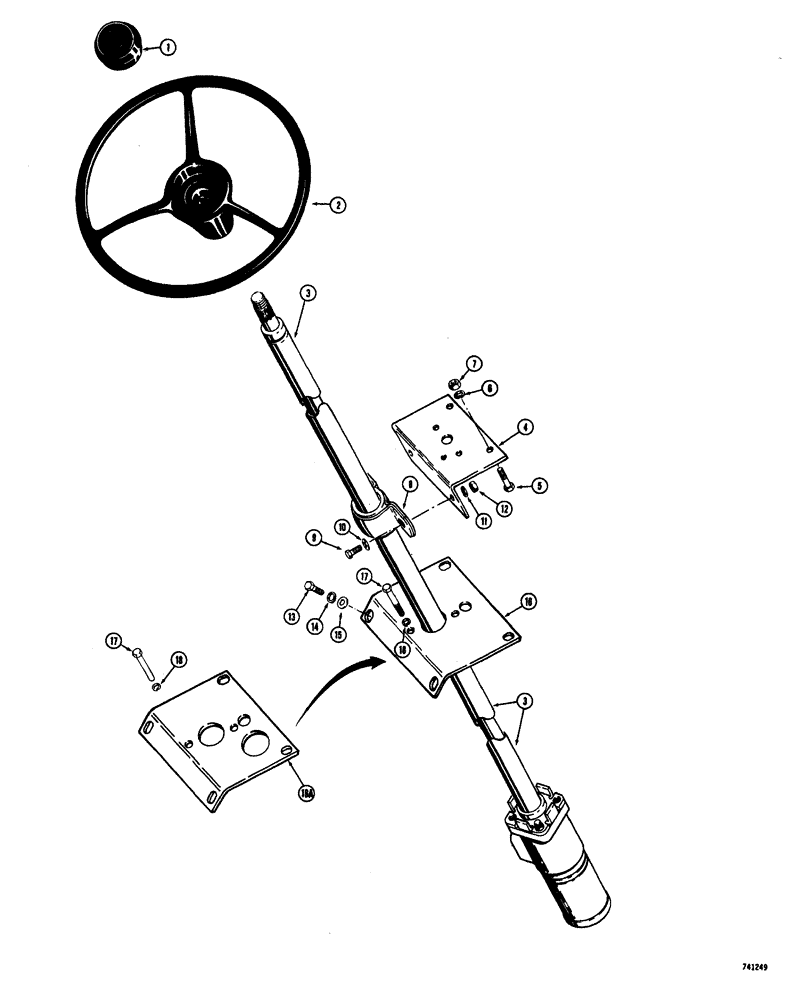

Запчасти Case W20 (204) - STEERING PUMP AND RELATED PARTS (05) - STEERING

1

L18519

CAP

steering wheel

1шт.

2

L47502

WHEEL

steering

1шт.

3

L50029

PUMP

ASSEMBLY - steering, See parts list Figure: 206

1шт.

4

L48006

BRACKET

steering column

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support mounting

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

2шт.

8

L50073

BEARING CARRIER

steering column support

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bearing mounting

2шт.

10

195-25

WASHER,3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

hex (3/8" - 16 NC)

2шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate mounting

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

95-6

WASHER,3/8"

4шт.

16

L50000

SPARE PART floor, steering alignment (Used before tractor Sn 9115403)

1шт.

16a

L57727

BRACKET

SPARE PART PLATE - floor steering alignment (Used tractor Sn 9115403 and after)

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Steering gear to plate mounting)

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.
