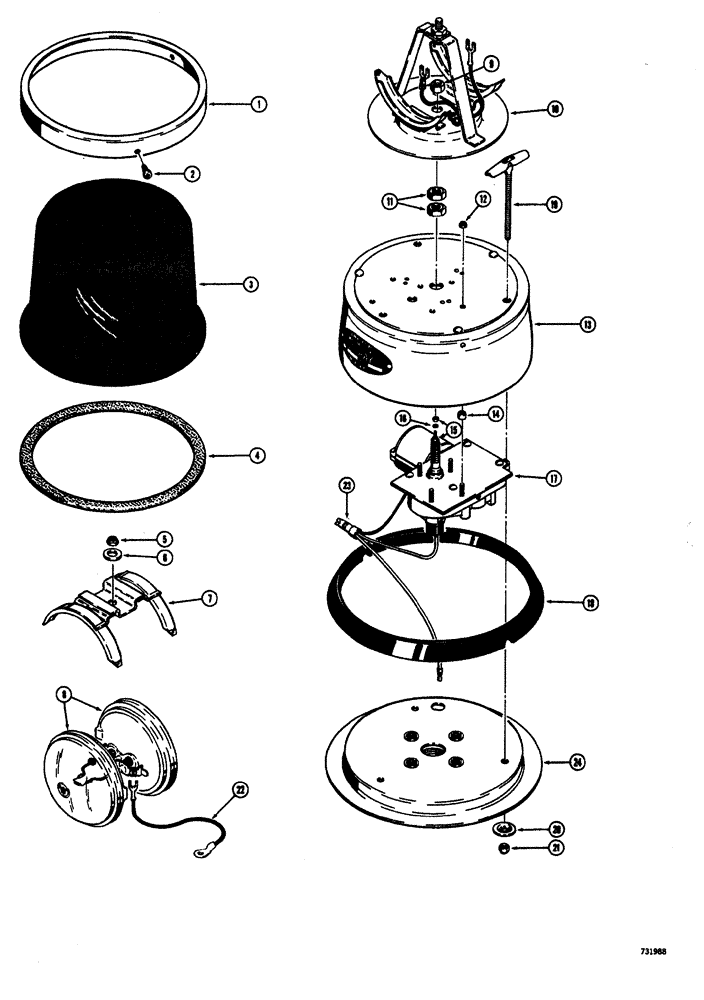

Запчасти Case W20 (266) - ROTATING BEACON (04) - ELECTRICAL SYSTEMS

L16100

BEACON

360° deg. rotating, 24 volt (Amber lens), Includes Ref: 1-23

1шт.

1

L32219

SPARE PART clamp, Serial Range: lens-body

1шт.

2

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

self-tapping (#8 - 32 NC x 3/8")

3шт.

3

L32230

LENS

SPARE PART beacon, red

1шт.

3

L32221

LENS

beacon, amber

1шт.

4

L32220

SPARE PART, Serial Range: lens-body

1шт.

5

131-204

NUT,1/4"-20

hex., lock (1/4" - 20 NC)

1шт.

6

95-4

WASHER,1/4"

standard wrot () 1/4"

1шт.

7

L32222

SPARE PART retainer, sealed beam

1шт.

8

L32223

LAMP

sealed beam, 24 volt

2шт.

9

129-303

NUT,3/8"-16, G5, LH

SPARE PART hex. (3/8" - 24 NF) L.H. thread

1шт.

10

L32224

SPARE PART mounting, light

1шт.

11

L32225

NUT

SPARE PART special, brass

2шт.

12

131-29

LOCK NUT,#8-32, GB

hex. lock (#8-32 NC)

4шт.

13

L32226

BASE

SPARE PART motor and lens

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - motor to base, with L32229 motor

1шт.

15

129-3

NUT,#4-40

2шт.

16

192-3

LOCK WASHER

med.sect lock (#4)

1шт.

17

L32229

SPARE PART electric, 24 volt

1шт.

18

L32227

GASKET

base

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - special, "T" type

3шт.

20

NSS

NOT SOLD SEPARAT

WASHER - special, dished type

3шт.

21

NSS

NOT SOLD SEPARAT

NUT - hex.

3шт.

22

L35144

SPARE PART ground

1шт.

23

T29401

NUT

wire, twist on

1шт.

24

L16101

SPARE PART beacon

1шт.
