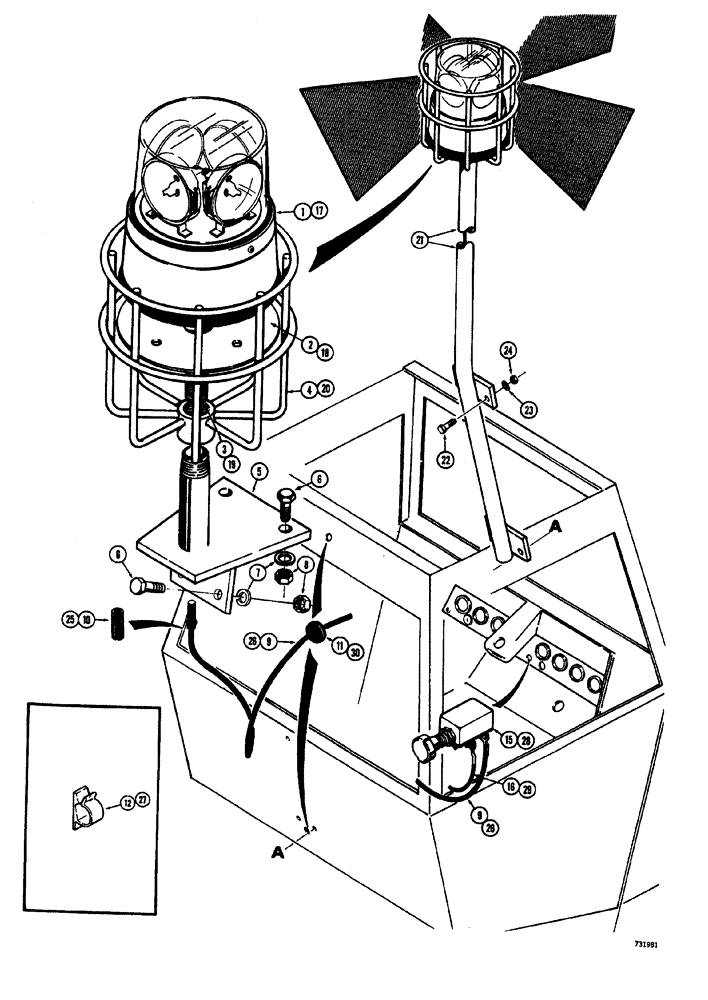

Запчасти Case W20 (264) - ROTATING BEACON USED ON MODELS WITH AND WITHOUT CAB (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L16100
BEACON
rotating, 360 degree (Amber lens), See parts list Figure: 266
1шт.
1
L16676
BEACON
rotating 360 degree (Red lens),See parts list Figure: 266
1шт.
2
L16101
SPARE PART MOUNT - beacon
1шт.
3
221-236
PIPE,Nipple, 1" NPT x 1 1/2"
pipe, 1" NPT
1шт.
4
L16615
CAGE
beacon
1шт.
5
L18374
PIPE
BRACKET ASSEMBLY - beacon mountme (Use L59841 bracket)
1шт.
5
L59841
PIPE
BRACKET ASSEMBLY - beacon mounting
1шт.
6
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
7
192-21
LOCK WASHER,3/8"
4шт.
8
129-103
NUT,Hex, 3/8" - 16, Gr 5
4шт.
9
L16768
SPARE PART, Serial Range: beacon-switch
1шт.
10
A12458
SLEEVE
LOOM - wire
1шт.
11
D45994
GROMMET,3/16" ID x 5/16" Groove Dia
wire protection
1шт.
12
L54606
CLIP
wire stick-on
3шт.
13
RESERVED
1шт.
14
RESERVED
1шт.
15
L16099
SWITCH
rotating beacon at instrument panel
1шт.
16
L18397
SPARE PART jumper, to ignition switch
1шт.
17
L16100
BEACON
rotating, 360 degree (Amber lens), See parts list Figure: 266, used on models w/o cab
1шт.
17
L16676
BEACON
rotating, 360 degree (Red lens), See parts list Figure: 266, used on models w/o cab
1шт.
18
L16101
SPARE PART beacon, used on models w/o cab
1шт.
19
221-236
PIPE,Nipple, 1" NPT x 1 1/2"
pipe, 1" NPT, used on models w/o cab
1шт.
20
L16615
CAGE
beacon, used on models w/o cab
1шт.
21
L48106
SPARE PART EXTENSION - height beacon, used on models w/o cab
1шт.
22
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
Used on models w/o cab
4шт.
23
192-21
LOCK WASHER,3/8"
Used on models w/o cab
4шт.
24
129-103
NUT,Hex, 3/8" - 16, Gr 5
Used on models w/o cab
4шт.
25
A12458
SLEEVE
LOOM - wire, used on models w/o cab
1шт.
26
L48124
SPARE PART ASSEMBLY - beacon to switch, used on models w/o cab
1шт.
27
L54606
CLIP
wire, stick-on, used on models w/o cab
3шт.
28
L16099
SWITCH
rotating beacon, at instrument panel, used on models w/o cab
1шт.
29
A26867
SPARE PART WIRE - jumper, to ignition switch, used on models w/o cab
1шт.
Выбрано товаров: 32
