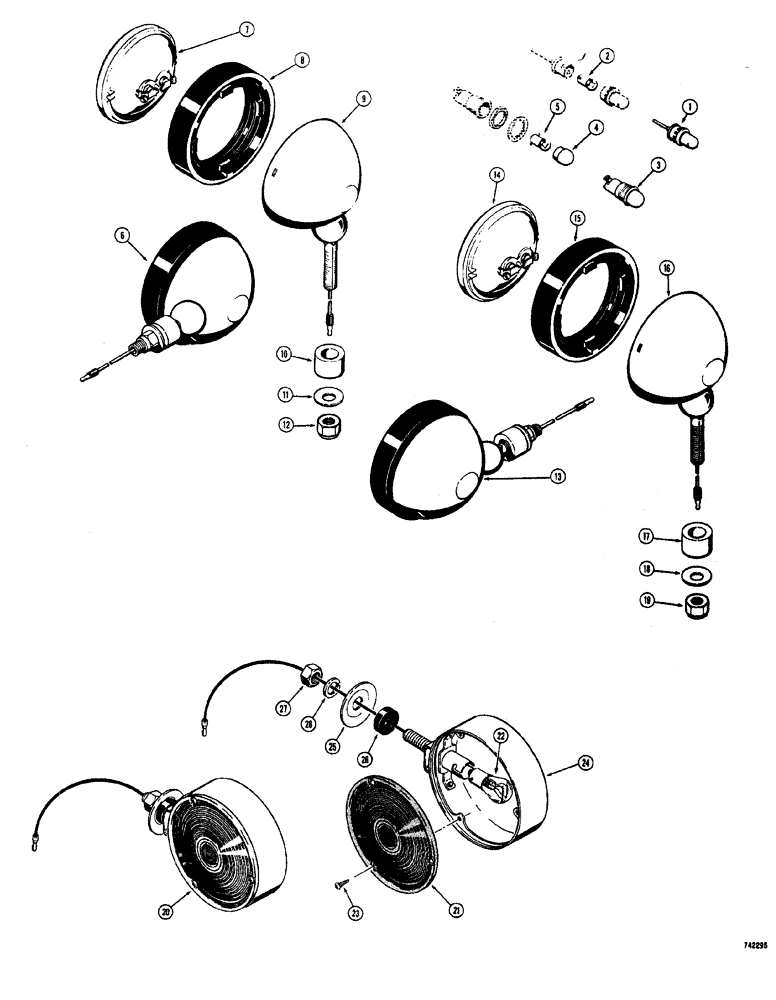

Запчасти Case W20 (088) - LIGHTING EQUIPMENT (04) - ELECTRICAL SYSTEMS

1

L55568

INTERIOR LIGHT

ASSEMBLY instrument panel, 12 volt, Includes Ref: 2

2шт.

2

A22349

BULB

panel light, instrument

1шт.

3

L13282

LAMP BASE

ASSEMBLY ignition indicator, 24 volt, Includes Ref: 4, 5

1шт.

4

L31223

LENS

light, green, ignition indicator

1шт.

5

L31227

BULB

ignition indicator light

1шт.

6

L13291

LAMP

ASSEMBLY painted yellow, 24 volt, front driving, Includes Ref: 7-12

2шт.

6

L71729

LAMP

ASSEMBLY painted black, 24 volt, front driving, Includes Ref: 7-12

2шт.

7

A25209

LAMP

sealed beam, front driving

1шт.

8

A25210

MOUNTING PARTS

RETAINER light, front driving

1шт.

9

NSS

NOT SOLD SEPARAT

SHELL light, front driving

1шт.

10

D37048

BUSHING

light pivot, front driving

1шт.

11

D37049

WASHER

special, front driving light

1шт.

12

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

hex, lock, 1/2" - 20 NF, front driving light

1шт.

13

L13292

INTERIOR LIGHT

ASSEMBLY painted yellow, 24 volt, front and rear flood light, Includes Ref: 14-19

3-4шт.

13

L71730

INTERIOR LIGHT

ASSEMBLY painted black, 24 volt, front and rear flood light, Includes Ref: 14-19

3-4шт.

14

D37920

LAMP

sealed beam, front and rear flood

1шт.

15

A25210

MOUNTING PARTS

RETAINER light, front and rear flood

1шт.

16

NSS

NOT SOLD SEPARAT

SHELL light, front and rear flood

1шт.

17

D37048

BUSHING

light, front and rear flood

1шт.

18

D37049

WASHER

special, front and rear flood light

1шт.

19

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

hex, lock, 1/2" - 20 NF, front and rear flood light

1шт.

20

L47277

LAMP

stop and tail, Do-Ray, use L59897 lamp, Includes Ref: 21-28

1шт.

21

L33639

LENS

light, stop and tail

1шт.

22

A15084

LAMP

light, 24 volt, stop and tail

1шт.

23

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

machine, round head, #6 - 32 NC x 1/2", stop and tail light

3шт.

24

NSS

NOT SOLD SEPARAT

BODY light, stop and tail

1шт.

25

L30258

WASHER

crowned, metal, stop and tail light

1шт.

26

L30259

WASHER

cushioned, rubber, stop and tail light

1шт.

27

25-118

NUT,1/2"-20, G5

hex, 1/2" - 20 NC, stop and tail light

1шт.

28

92-8

LOCK WASHER,1/2"

Stop and tail light

1шт.

20

L59897

LAMP

stop and tail (Hobbs), Includes Ref: 21-24

1шт.

21

NSS

NOT SOLD SEPARAT

LENS light, stop and tail

1шт.

22

A15084

LAMP

light, 24 volt, stop and tail

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW stop and tail light

3шт.

24

NSS

NOT SOLD SEPARAT

BODY light, stop and tail

1шт.

25

L30258

WASHER

crowned, rubber, stop and tail light

1шт.

26

L30259

WASHER

cushioned, rubber, stop and tail light

1шт.

27

25-118

NUT,1/2"-20, G5

hex, 1/2" - 20 NC, stop and tail light

1шт.

28

92-8

LOCK WASHER,1/2"

Stop and tail light

1шт.
