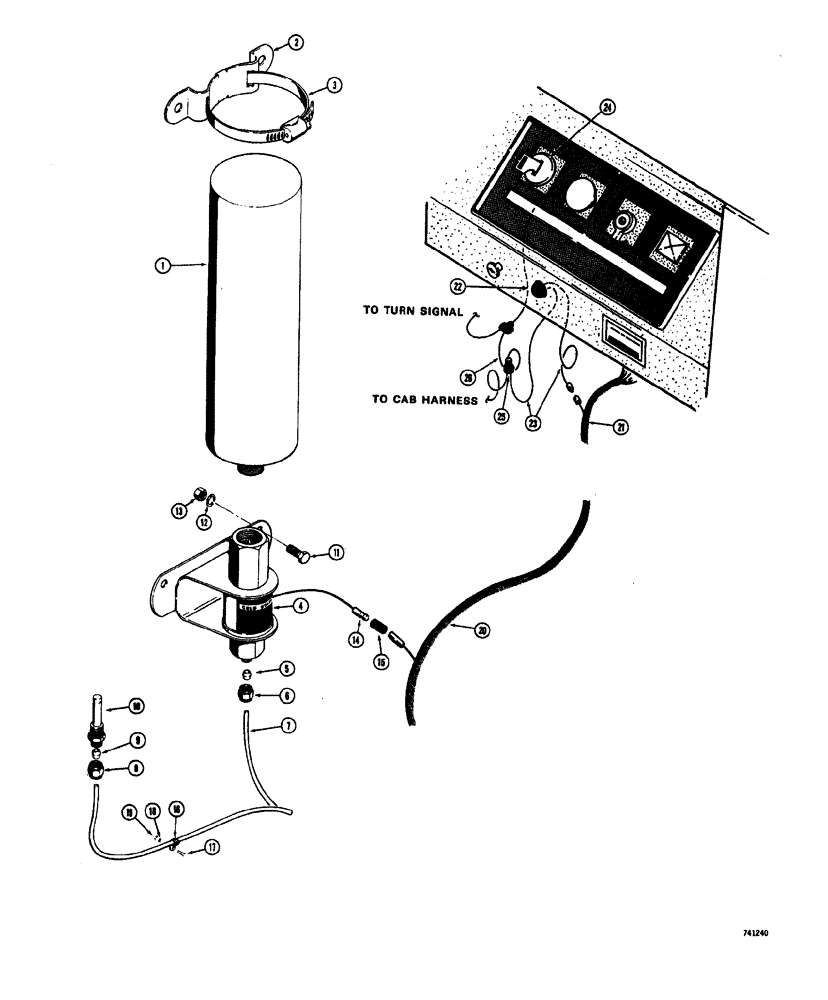

Запчасти Case W20 (086) - COLD START SYSTEM MODELS WITH BAND CLAMPED CYLINDER USED ON TRACTOR S.N. 9115403 AND AFTER (04) - ELECTRICAL SYSTEMS

L53196

START SPRAY FLUID

KIT cold starting aid, Includes Ref: 1-12

1шт.

1

D55767

CYLINDER

ether

1шт.

2

D55949

BRACKET

BRACKET clamp mounting

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

tank retaining

1шт.

4

L35280

VALVE

ASSEMBLY actuator, Includes Ref: 5, 6

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Flex, NPT brass

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

flex, tube, 1/8" NPT brass

1шт.

L35283

PACKAGE, REPAIR

SEAL KIT overhaul repair

1шт.

NSS

NOT SOLD SEPARAT

SEAL O-ring, cylinder to valve, 13/16" I.D.

1шт.

NSS

NOT SOLD SEPARAT

SEAL O-ring, armature, 9/32" I.D.

1шт.

NSS

NOT SOLD SEPARAT

SEAL O-ring, retainer fitting, 3/4" I.D.

1шт.

NSS

NOT SOLD SEPARAT

WASHER bumper, retainer fitting

1шт.

7

L35281

TUBE,0.125" OD x 60" L

nylon, 1/8" O.D. x 60" long, cut to length

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

flex, tube, 1/8" NPT brass

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

Flex, NPT brass

1шт.

10

L35282

JET

NOZZLE manifold

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

12

92-4

LOCK WASHER,1/4"

4шт.

13

25-104

NUT,1/4"-20, G5

Includes Ref: 14

4шт.

14

L11778

CONNECTOR, ELEC

CONNECTOR male bullet, .180" diameter

1шт.

15

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

INSULATOR connector

1шт.

16

80049853

YOKE

wiring

2шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

20

L57524

SPARE PART rear, See Figures: 70, 78 for related parts

1шт.

21

L57523

HARNESS

SPARE PART front, See Figures: 62, 64 for related parts

1шт.

22

A30858

SWITCH

STARTING SWITCH - push button type, cold start

1шт.

23

A18112

ELECTRICAL WIRE

WIRE jumper, push button switch

2шт.

24

REF

INSTRUCTION

SWITCH ignition, includes wire and 3-way connector

1шт.

25

A8210

CONNECTOR, ELEC

CONNECTOR 3-way

1шт.

26

L58674

ELECTRICAL WIRE

WIRE jumper

1шт.
