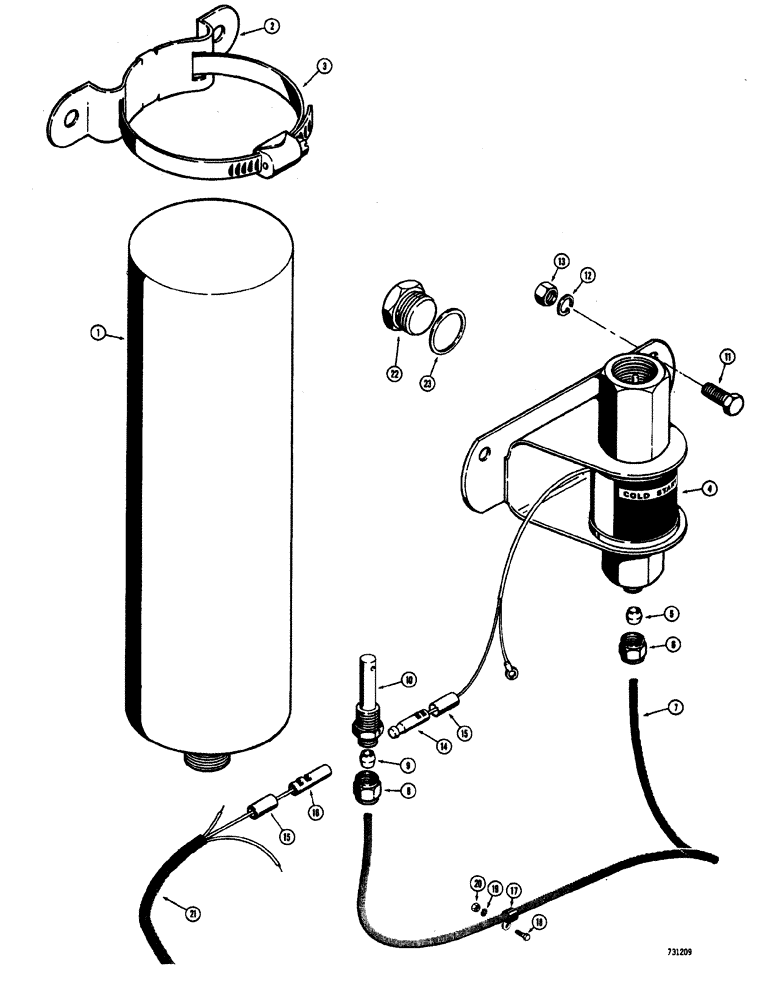

Запчасти Case W20 (084) - COLD STARTING SYSTEM MODELS WITH BAND CLAMPED CYLINDERS, BEFORE TRACTOR S.N. 9115403 (04) - ELECTRICAL SYSTEMS

L53196

START SPRAY FLUID

KIT cold starting aid, Includes Ref: 1-10

1шт.

1

D55767

CYLINDER

ether

1шт.

2

D55949

BRACKET

clamp mounting

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

tank retaining

1шт.

4

L35280

VALVE

ASSEMBLY actuator

1шт.

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY valve mounting

1шт.

NSS

NOT SOLD SEPARAT

COVER coil housing

2шт.

NSS

NOT SOLD SEPARAT

COIL magnetic

1шт.

NSS

NOT SOLD SEPARAT

HOUSING coil

1шт.

NSS

NOT SOLD SEPARAT

ARMATURE valve

1шт.

NSS

NOT SOLD SEPARAT

WASHER seal

1шт.

NSS

NOT SOLD SEPARAT

FITTING retainer

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Flex, NPT brass

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

flex, tube, 1/8" NPT brass

1шт.

L35283

PACKAGE, REPAIR

SEAL KIT overhaul repair

1шт.

NSS

NOT SOLD SEPARAT

SEAL O-ring, cylinder to valve, 13/16" I.D.

1шт.

NSS

NOT SOLD SEPARAT

SEAL O-ring, armature, 9/32" I.D.

1шт.

NSS

NOT SOLD SEPARAT

SEAL O-ring, retainer fitting, 3/4" I.D.

1шт.

NSS

NOT SOLD SEPARAT

WASHER bumper, retainer fitting

1шт.

7

L35281

TUBE,0.125" OD x 60" L

nylon, 1/8" O.D. x 60" long

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

flex, tube, 1/8" NPT brass

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

Flex, NPT brass

1шт.

10

L35282

JET

NOZZLE manifold

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

12

92-4

LOCK WASHER,1/4"

4шт.

13

25-104

NUT,1/4"-20, G5

4шт.

14

L11778

CONNECTOR, ELEC

CONNECTOR male bullet, .180" diameter

1шт.

15

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

INSULATOR connector

2шт.

16

L13437

SPARE PART CONNECTOR female bullet, .180" diameter

1шт.

17

80049853

YOKE

wiring

2шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

2шт.

21

REF

INSTRUCTION

HARNESS rear, see Figures: 70, 72 for related parts

1шт.

22

A20917

PLUG

manifold heater hole, 1-1/8" - 12 NF

1шт.

23

A20916

MANIFOLD GASKET

WASHER plug

1шт.
