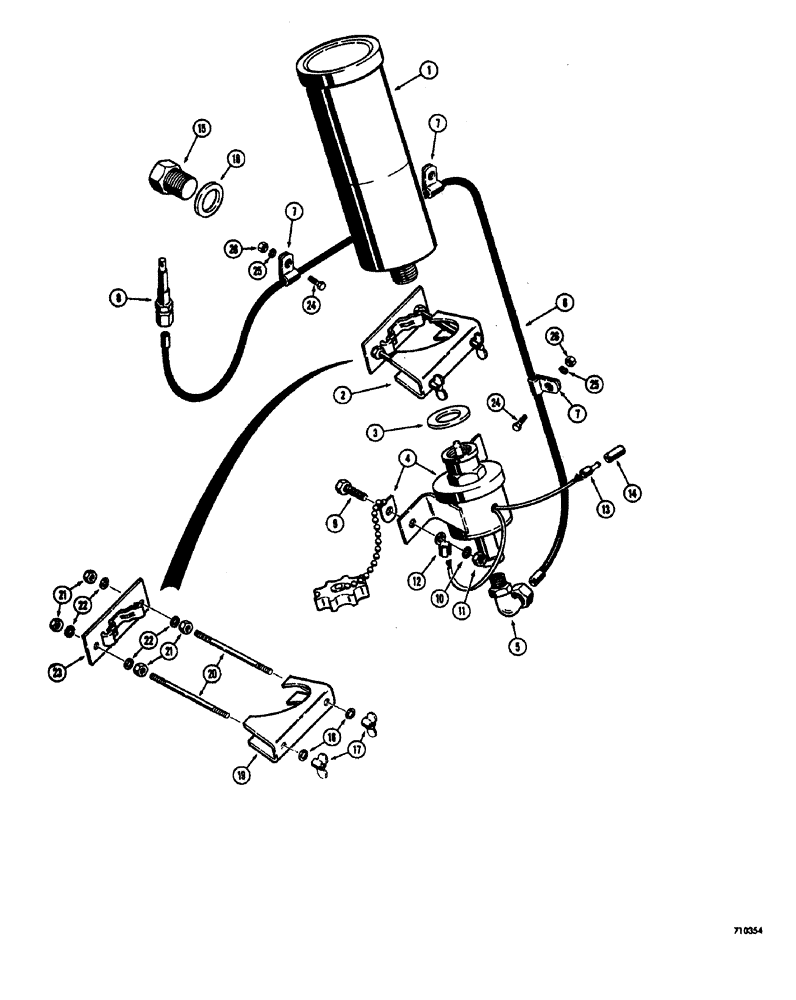

Запчасти Case W20 (082) - COLD STARTING SYSTEM MODELS WITH SADDLE CLAMPED CYLINDERS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

CYLINDER ether, order from Turner Corp #LP535

1шт.

2

L32710

BRACKET

AND CLAMP ASSEMBLY support, See parts list in this Figure

1шт.

3

L30188

GASKET

cap, valve

1шт.

4

L31773

VALVE

metering, 24 volt

1шт.

5

T39541

ELBOW

coupler, 90°

1шт.

6

L31774

TUBE

nylon, 1/8" O.D. x 48" long

1шт.

7

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

tube

3шт.

8

L30185

FITTING

ASSEMBLY atomizer, at manifold

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

223-52

FUSE

TERMINAL eyelet

1шт.

13

R18653

TERMINAL STRIP

bullet, male

1шт.

14

223-83

SLEEVE

TERMINAL sleeve

1шт.

15

A20917

PLUG

pipe, special, intake manifold, 1-1/8" - 12 NF

1шт.

16

A20916

MANIFOLD GASKET

WASHER plug

1шт.

L32710

BRACKET

AND CLAMP ASSEMBLY support, Includes Ref: 17-23

1шт.

17

129-419

WING NUT,5/16"-18

5/16" - 18 NC

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

L19084

SADDLE

ASSEMBLY clamp

1шт.

20

L32834

STUD

bracket, 5/16" - 18 NC x 5"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY tension

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used

2шт.

25

92-6

LOCK WASHER,3/8"

if used

2шт.

26

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC, if used

2шт.
