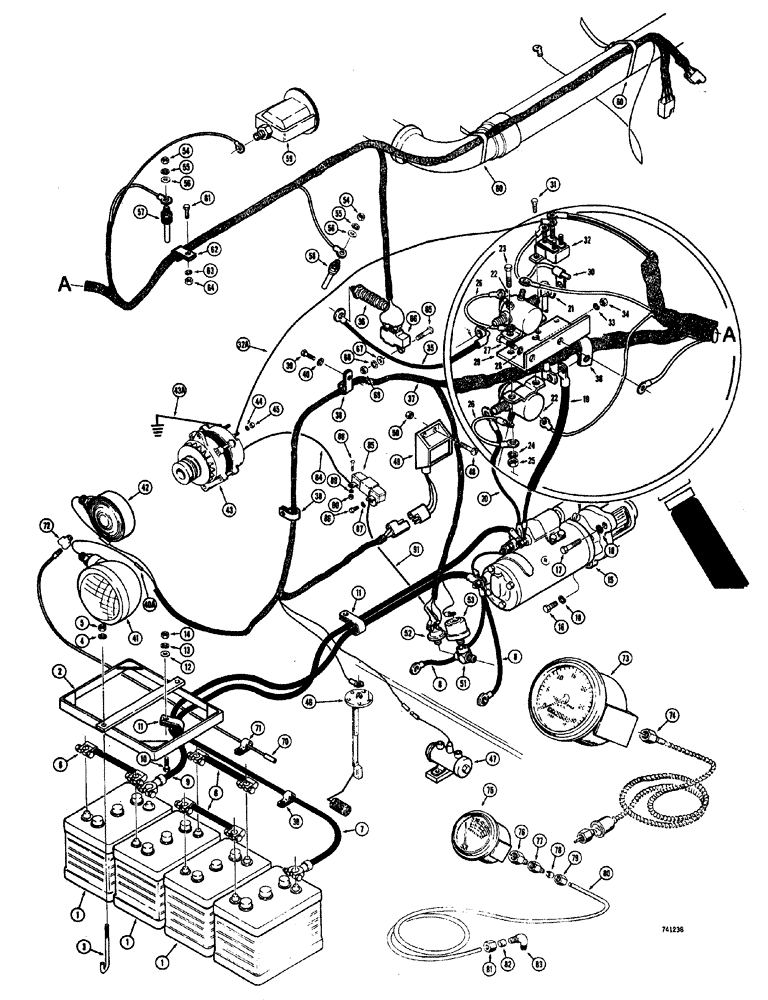

Запчасти Case W20 (074) - ELEC. SYSTEM REAR HARNESS & STARTING CIRCUIT MODELS W/ 70 AMP ALTERNATOR BEFOR TRAC. S/N 9115403 (04) - ELECTRICAL SYSTEMS

1

D44177

DRY BATTERY

6 volt, dry charge

4шт.

2

L47264

BATTERY BOX

HOLDDOWN

2шт.

3

T53041

BOLT

J holddown

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

L13310

CABLE

jumper

3шт.

7

L47938

CABLE

battery, ground to starter end cover

1шт.

8

L40793

ELECTRICAL WIRE

WIRE CABLE ground, starter to engine block and chassis

2шт.

9

L47925

CABLE

battery to starter solenoid

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

11

L19029

CLAMP

battery cable

2шт.

12

95-6

WASHER,3/8"

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

1шт.

15

D42964

X

STARTER electrical, 24 volt, See parts list Figures: 52-54

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

18

92-8

LOCK WASHER,1/2"

3шт.

19

L13300

ELECTRICAL WIRE

WIRE CABLE starter solenoid to heater solenoid

1шт.

20

L14552

CABLE

, Serial Range: starter-solenoid

1шт.

21

L17822

ELECTRICAL WIRE

WIRE CABLE jumper, solenoid connecting

1шт.

22

D31479

SOLENOID SWITCH

SOLENOID magnetic, 24 volt

2шт.

23

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

26

A31060

ELECTRICAL WIRE

WIRE ground, solenoid.

2шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

L18684

BRACKET

SPARE PART mounting, solenoid and circuit breaker

1шт.

30

L18690

SPARE PART solenoid to circuit breaker

1шт.

31

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

machine, round head, #10 - 24 NC x 1/2"

2шт.

32

L51523

SPARE PART circuit, 80 amp

1шт.

32a

L51541

SPARE PART alternator to circuit breaker

1шт.

33

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

34

129-17

NUT,Hex, #10 - 24

2шт.

35

L17831

WIRE HARNESS

CABLE solenoid to manifold heater

1шт.

36

A34278

HEATER

manifold

1шт.

37

L47648

SPARE PART wiring, rear

1шт.

38

49838

CLAMP

rear harness

4шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

40a

A30366

CABLE

CONNECTOR flood light to harness, used with single flood light

1шт.

41

REF

INSTRUCTION

LIGHT rear flood, See Figure: 88 for proper light

1-2шт.

42

L59897

LAMP

stop and tail, See parts list Figure: 88, Includes Ref: 42A

1шт.

42a

A15084

LAMP

BULB not shown

1шт.

43

L51531

SPARE PART ASSEMBLY 24 volt, 70 amp, See parts list Figure: 46

1шт.

43a

L52361

HOSE ASSY.

WIRE ground, alternator

1шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

45

129-17

NUT,Hex, #10 - 24

3шт.

46

L13302

TRANSMITTER

SPARE PART SENDING UNIT fuel gauge

1шт.

47

REF

INSTRUCTION

FUEL PUMP electric, See parts list Figure: 230

1шт.

48

71-410

SCREW

fillister head, 1/4" - 20 NC x 5/8"

3шт.

49

L55060

SPARE PART voltage, 70 amp

1шт.

50

193-1006

NUT,Keps, w/LW, 1/4"-20

hex, lock, 1/4"- 20 NC

3шт.

51

221-690

3 WAY CONNECTION

TEE engine oil pressure switch

1шт.

52

D28798

SWITCH

pressure, oil

1шт.

53

A35031

SENDER UNIT

SENDER engine oil pressure

1шт.

54

129-27

NUT,Hex, #10 - 32

2шт.

55

92-3

LOCK WASHER,#10

2шт.

56

195-12

WASHER,#10

plain, #10

2шт.

57

F13156

SENDER UNIT

SENDER engine water temperature

1шт.

58

A13795

SENDER UNIT

SENDER converter oil temperature

1шт.

59

L13298

ELECTRICAL GAUGE

HOURMETER engine

1шт.

60

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP tee, harness

3шт.

61

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

62

D20302

CLAMP,7/8", Insul, 3/8" Bolt

harness

1шт.

63

92-6

LOCK WASHER,3/8"

1шт.

64

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC, if used

1шт.

65

182-53

SCREW,Sl Pan Hd, #6 - 32 x 1 1/2"

pan head, #6 - 32 NC x 1-1/2", if used

2шт.

66

L54683

SWITCH

neutral start

1шт.

67

195-10

WASHER,#8

If used

2шт.

68

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

If used

2шт.

69

129-15

NUT,#6-32

If used

2шт.

70

L48782

ELECTRICAL WIRE

WIRE jumper, rear flood light, used if unit has two rear flood lights

1шт.

71

49832

CLAMP

jumper wire

2шт.

72

A8210

CONNECTOR, ELEC

CONNECTOR rear flood light wire, used with two rear flood lights

1шт.

73

L13316

ELECTRICAL GAUGE

TACHOMETER engine speed, RPM

1шт.

74

A24101

CABLE

tachometer drive

1шт.

75

L51456

GAUGE

fuel pressure, not required on late production model

1шт.

76

A28061

FITTING

SNUBBER fuel pressure gauge, if used

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

ASSEMBLY oil pressure tube, if used, Includes Ref: 77-79

1шт.

77

NSS

NOT SOLD SEPARAT

BODY connector

1шт.

78

222-5045

SLEEVE,1/8" Tube

SLEEVE connector

1шт.

79

222-5058

NUT,3/8"-24

connector

1шт.

80

D35090

TUBE

fuel pressure gauge, if used

1шт.

222-5021

ELBOW UNION,90 Degree, 3/8"-24 x 1/8" NPT, Hi-seal

SPARE PART ASSEMBLY 90°, fuel pressure tube, if used, Includes Ref: 81-83

1шт.

81

222-5058

NUT,3/8"-24

elbow

1шт.

82

222-5045

SLEEVE,1/8" Tube

SLEEVE elbow

1шт.

83

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

84

L51542

SPARE PART, Serial Range: alternator-resistor

1шт.

85

L55061

RESISTOR

alternator

1шт.

86

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Resistor mounting

1шт.

87

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

88

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

round head machine, #6 - 32 NC x 1/2", Zinc plated

2шт.

89

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

2шт.

90

129-15

NUT,#6-32

2шт.

91

L51543

SPARE PART resistor to oil pressure switch

1шт.
