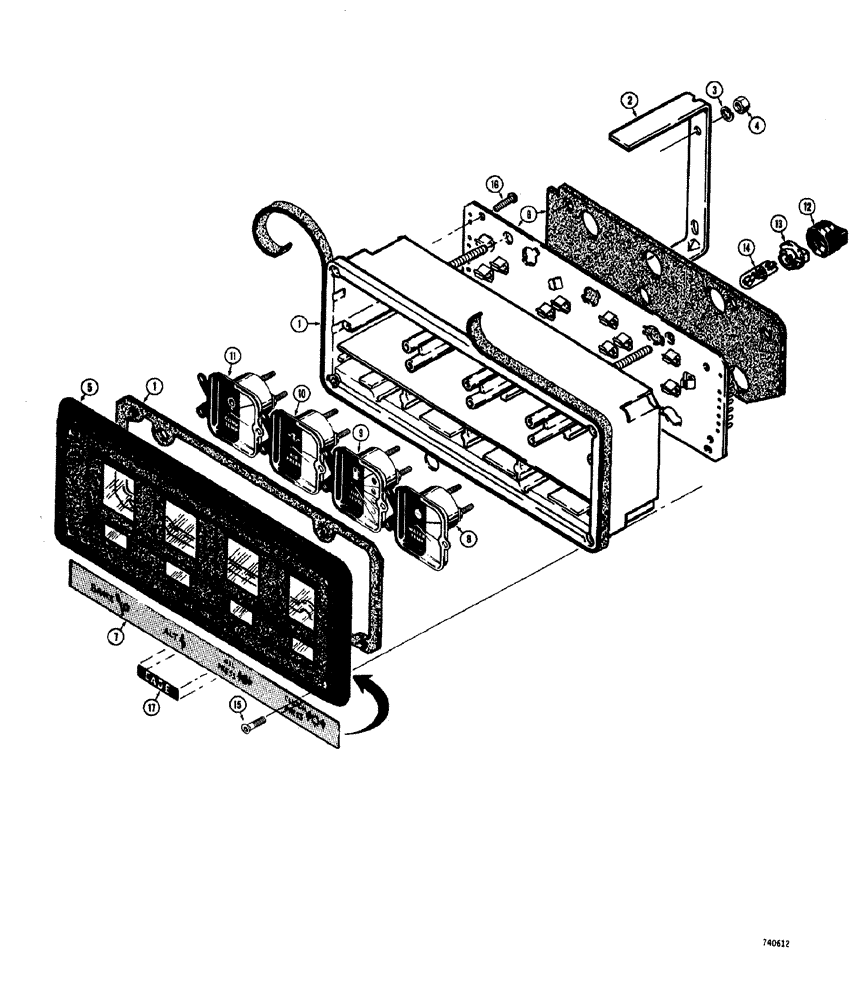

Запчасти Case W20 (065A) - ELECTRICAL SYSTEM FRONT HARNESS AND INSTRUMENT PANELS TRACTOR S.N. 9115403 AND AFTER (04) - ELECTRICAL SYSTEMS

L55650

CLUSTER

instrument panel, Includes Ref: 1-17

1шт.

1

NSS

NOT SOLD SEPARAT

CASE AND GASKET cluster mounting

1шт.

2

L35954

STRAP

case mounting

2шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

4шт.

4

129-37

NUT,#10-32

4шт.

5

L35948

PANEL

instrument, L.H. outer

1шт.

6

L35950

BOARD, PRINTED CIRCU

IT wiring and gauges

1шт.

7

L35953

PANEL

IDENTIFICATION brake, alternator, engine oil pressure and clutch pressure warning lights

1шт.

8

L35946

ELECTRICAL GAUGE

engine water temperature

1шт.

9

L35943

ELECTRICAL GAUGE

fuel level

1шт.

10

L35944

ELECTRICAL GAUGE

air pressure

1шт.

11

L35945

ELECTRICAL GAUGE

converter oil temperature

1шт.

12

L35947

BOOT

light socket

7шт.

13

L35949

SOCKET/RECEPTACLE

instrument light

7шт.

14

W10478

LAMP

light, instrument

7шт.

15

164-15

HEX SOC SCREW,Flat Hd, #6 - 32 x 3/4"

hex socket head, #6 - 32 NC x 3/4"

4шт.

16

187-976

SELF-TAP SCREW,#6 x 3/8"

self-tapping, #6 - 32 NC x 3/8"

13шт.

17

L57685

DECAL

Case, 1-3/8" long

1шт.
