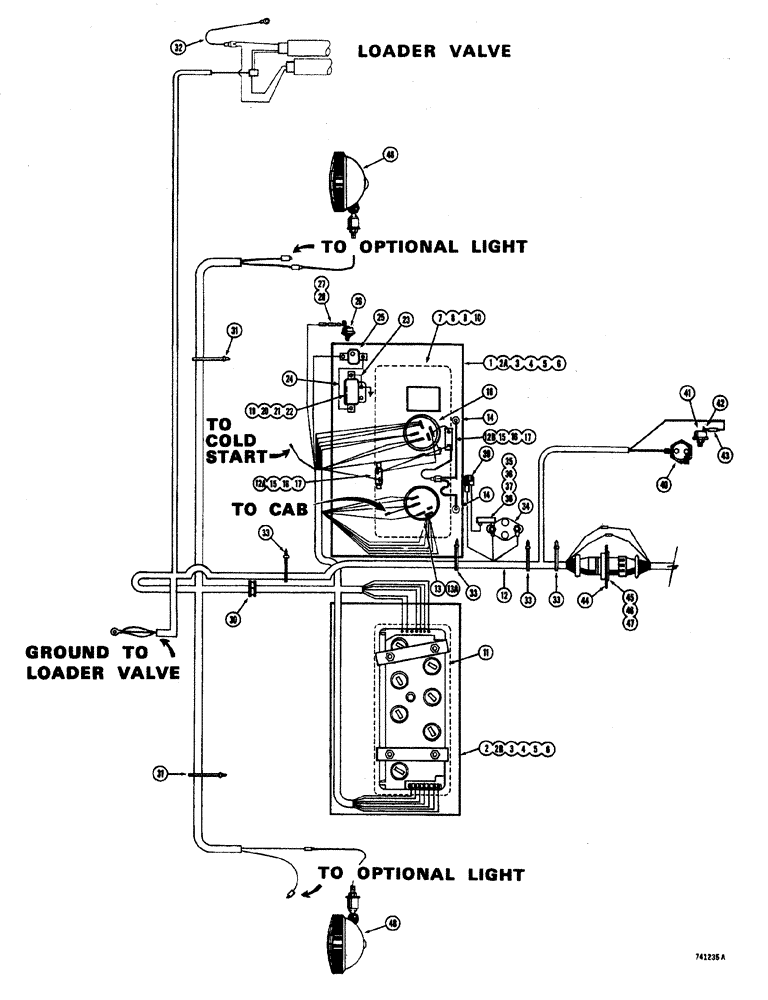

Запчасти Case W20 (062) - ELECTRICAL SYSTEM FRONT HARNESS AND INSTRUMENT PANELS TRACTOR S.N. 9115403 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L59975

PANEL

instrument, R.H.

1шт.

2

L57001

PANEL

instrument, L.H.

1шт.

2a

L57916

STRIP

filler, instrument panel and frame, R.H.

1шт.

2b

L57917

STRIP

filler, instrument panel and frame, L.H.

1шт.

3

77-412

SCREW

truss head, 1/4" - 20 NC x 3/4"

8шт.

4

92-4

LOCK WASHER,1/4"

8шт.

5

95-4

WASHER,1/4"

flat, 1/4"

8шт.

6

25-104

NUT,1/4"-20, G5

8шт.

7

L55774

PANEL

instrument mounting, R.H.

1шт.

8

164-15

HEX SOC SCREW,Flat Hd, #6 - 32 x 3/4"

flat head hex socket, #6 - 32 NC x 3/4" Grade 8

4шт.

9

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

4шт.

10

129-15

NUT,#6-32

4шт.

11

L55650

CLUSTER

instrument panel, L.H., See Figure: 65A for breakdown

1шт.

12

L57523

HARNESS

SPARE PART front, electrical, Includes Ref: 12A, 12B

1шт.

12a

L57052

RESISTOR

front harness

1шт.

12b

L57178

RESISTOR

front harness

1шт.

13

L55655

SWITCH

ignition

1шт.

13a

D36822

KEY

ignition, set of two

1шт.

14

L55568

INTERIOR LIGHT

instrument panel, See parts list Figure: 88

2шт.

15

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

flat head, #6 - 32 NC x 1/2"

4шт.

16

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

4шт.

17

129-15

NUT,#6-32

4шт.

18

L55654

SWITCH

light

1шт.

19

L15056

BUZZER

warning, air pressure

1шт.

20

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

flat head, 1/4" - 20 NC x 1/2"

2шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

23

A31060

ELECTRICAL WIRE

WIRE, Serial Range: buzzer-ground

1шт.

24

A18457

ELECTRICAL WIRE

WIRE, Serial Range: buzzer-switch

1шт.

25

L48480

SWITCH

air pressure

1шт.

26

L47937

WHEEL

SWITCH air parking brake

1шт.

27

L58497

RESISTOR

air brake switch, 40 ohm

1шт.

28

L58511

TERMINAL CONNECTOR

resistor to wire harness

1шт.

29

RESERVED

1шт.

30

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

split

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

2шт.

32

L50380

ELECTRICAL WIRE

WIRE ground, valve to tractor frame

1шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

34

L48128

VALVE

SWITCH stop light, See parts list Figure: 122

1шт.

35

L58697

RESISTOR

stop light switch

1шт.

36

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

round head, #8 - 32 NC x 1/2"

1шт.

37

195-10

WASHER,#8

1шт.

38

129-6

NUT,#8-32

1шт.

39

L11760

DIODE

stoplight switch protecting

1шт.

40

L57855

SWITCH

neutral start

1шт.

41

L71751

PRESSURE SWITCH

clutch, pressure

1шт.

42

L58497

RESISTOR

switch protecting, 40 ohm

1шт.

43

L58511

TERMINAL CONNECTOR

resistor

1шт.

44

L57712

SPARE PART harness

1шт.

45

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

round head, #6 - 32 NC x 1/2"

4шт.

46

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

4шт.

47

129-15

NUT,#6-32

4шт.

48

REF

INSTRUCTION

LIGHT flood, See Figure 88 for proper light

2шт.
