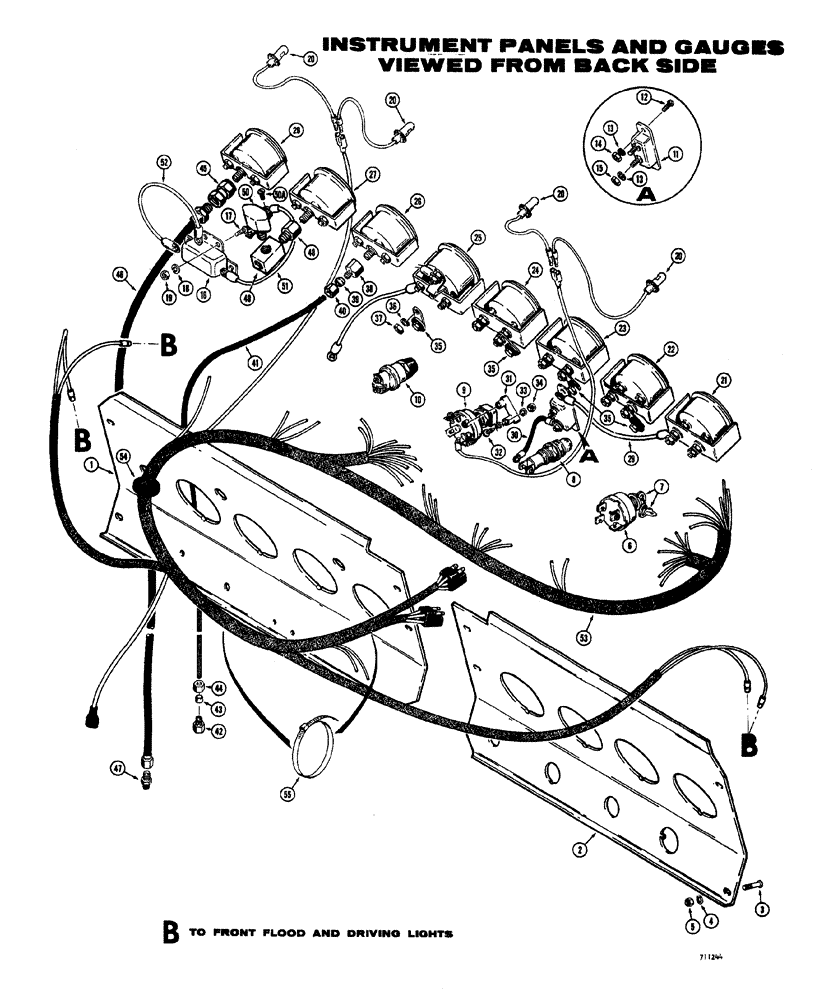

Запчасти Case W20 (058) - ELECTRICAL SYSTEM FRONT HARNESS AND INSTRUMENT PANELS USED BEFORE TRACTOR S.N. 9115403 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L48118
SPARE PART instrument, R.H.
1шт.
2
L48119
PANEL
instrument, L.H.
1шт.
3
175-455
SPARE PART truss head, 1/4" - 20 NC x 7/8"
8шт.
4
193-60
LOCK WASHER,Int Tooth, 1/4"
8шт.
5
131-120
NUT
hex, 1/4" - 20 NC, outer
8шт.
5a
131-630
SPRING NUT,Tinn, U, 1/4"-20
hex, 1/4" - 20 NC, inner
8шт.
6
L17820
SWITCH
ignition, Includes Ref: 7
1шт.
7
A20346
KEY
ignition
1шт.
8
L13282
LAMP BASE
ignition indicator, See parts list Figure: 88
1шт.
9
L10376
SWITCH
light
1шт.
10
A30858
SWITCH
STARTING SWITCH - push button type, starting aid
1шт.
11
A22877
BREAKER,40A
circuit
1шт.
12
173-95
SCREW,Sl Rnd Hd, #10 - 24 x 3/8"
round head machine, #10 - 24 NC x 3/8"
2шт.
13
92-3
LOCK WASHER,#10
4шт.
14
129-7
NUT,Hex, #10 - 24
2шт.
16
L15056
BUZZER
warning, air pressure
1шт.
17
175-400
SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"
truss head, 1/4" - 20 NC x 1/2"
2шт.
18
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
2шт.
19
7770
NUT,Hex, 1/4 - 20, Cl 5
2шт.
20
L13275
LAMP
instrument panel, See parts list Figure: 88
4шт.
21
L13279
METER
voltmeter
1шт.
22
A19346
ELECTRICAL GAUGE
pressure, engine oil
1шт.
23
A19347
ELECTRICAL GAUGE
temperature, engine water
1шт.
24
A19345
ELECTRICAL GAUGE
fuel level
1шт.
25
A13756
GAUGE
temperature, converter oil, when stock is exhausted, order L51460 gauge for service
1шт.
25
L51460
ELECTRICAL GAUGE
temperature, converter oil
1шт.
26
A56447
ELECTRICAL GAUGE
pressure, clutch
1шт.
27
L12141
ELECTRICAL GAUGE
air pressure
1шт.
28
L13271
ELECTRICAL GAUGE
pressure, hydraulic pump inlet
1шт.
29
A18311
ELECTRICAL WIRE
WIRE ground, voltmeter & converter temperature gauges, if used
2шт.
30
L13283
ELECTRICAL WIRE
WIRE ground, circuit breaker to ignition indicator
1шт.
31
A14900
RESISTOR
light switch
1шт.
32
173-203
SCREW,Sl Rnd Hd, #6 - 32 x 1/2"
round head machine, #6 - 32 NC x 1/2"
1шт.
33
192-15
LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND
1шт.
34
129-15
NUT,#6-32
1шт.
35
A19349
RESISTOR
electrical gauges, 75 ohm
4шт.
36
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
4шт.
37
129-37
NUT,#10-32
4шт.
222-5150
FITTING,3/8"-24 x 1/8" NPT, Hi-seal
ASSEMBLY straight female, flex type, Includes Ref: 38-40
1шт.
38
NSS
NOT SOLD SEPARAT
CONNECTOR straight
1шт.
39
222-5045
SLEEVE,1/8" Tube
SLEEVE connector
1шт.
40
222-5058
NUT,3/8"-24
connector
1шт.
41
L47270
TUBE,0.078" ID x 0.125" OD x 105" L
converter pressure gauge to transmission
1шт.
222-5000
HYD CONNECTOR,3/8"-24 x 1/8" NPT, Hi-seal
ASSEMBLY straight male, flex type, Includes Ref: 42-44
1шт.
42
NSS
NOT SOLD SEPARAT
straight
1шт.
43
222-5045
SLEEVE,1/8" Tube
SLEEVE connector
1шт.
44
222-5058
NUT,3/8"-24
connector
1шт.
45
218-915
HYD CONNECTOR,Sw, 1/8" NPT Fem x 1/8" NPSM Fem
UNION adapter, hydraulic pump inlet pressure gauge to hose
1шт.
46
L48930
HOSE ASSY.
union to hydraulic pump
1шт.
47
222-807
HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/4" NPT
straight, oil pressure gauge hose
1шт.
48
217-1
ADAPTER
air pressure gauge
1шт.
49
L13273
UNION TEE
special, air pressure gauge
1шт.
50
L48480
SWITCH
air pressure buzzer
1шт.
50a
173-73
SCREW,Sl Rnd Hd, #8 - 32 x 1/4"
round head machine, #8 - 32 NC x 1/4"
2шт.
51
A18457
ELECTRICAL WIRE
WIRE, Serial Range: switch-buzzer
1шт.
53
L47649
SPARE PART front and instrument panel wiring
1шт.
54
L48194
GROMMET
harness, when stock is exhausted, order L53783 grommet for service
1шт.
54
L53783
GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut
harness
1шт.
55
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP harness tie
2шт.
56
REF
INSTRUCTION
LIGHT front flood, see Figure 89 for proper lights
2шт.
57
REF
INSTRUCTION
LIGHT driving, see Figure 89 for proper light
2шт.
58
L47161
LAMP BASE
SPARE PART LIGHT warning, air pressure, Includes Ref: 59
1шт.
59
P0732978Q
SCREW
BULB warning light, not shown
1шт.
60
L58194
SPARE PART air pressure warning light
1шт.
