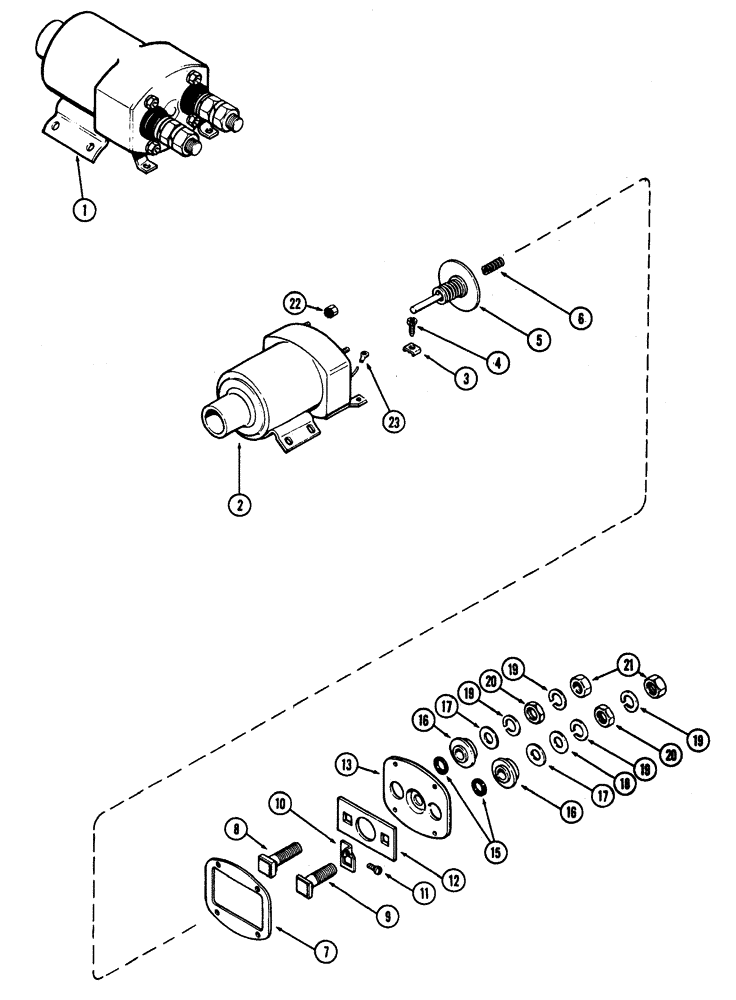

Запчасти Case W20 (056) - A42376 SOLENOID (04) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSY (Delco #1119848), Includes Ref: 2-23

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY order A42376

1шт.

3

A42407

CLAMP

SPARE PART terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

terminal clamp

1шт.

5

D32498

CONTACT

ASSY

1шт.

6

A42411

VALVE SPRING

contact return

1шт.

A42412

PLATE

ASSY terminal studs, Includes Ref: 7-21

1шт.

7

A42260

GASKET

terminal plate

1шт.

8

A42413

STUD

battery terminal

1шт.

9

D32506

STUD

starter terminal

1шт.

10

A42406

SUPPORT

coil lead

1шт.

11

175-56

SPARE PART truss head, wire lead, #6-32 x 3/16" Slotted Truss Hd, #6-32 x 3/16"

1шт.

12

D32507

RUBBER INSULATOR

terminal plate

1шт.

13

A42410

PLATE

SPARE PART terminal

1шт.

15

D32510

BUSHING

rubber, terminal stud

2шт.

16

A42409

BUSHING

INSULATOR terminal stud

2шт.

17

D30004

WASHER

insulating, terminal stud

2шт.

18

D30006

WASHER

terminal stud

2шт.

19

192-113

LOCK WASHER,1/2"

lock, 1/2"

4шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

D32500

NUT

plate, includes lockwasher

4шт.

23

A42408

ELECTRICAL WIRE

WIRE ground

1шт.
