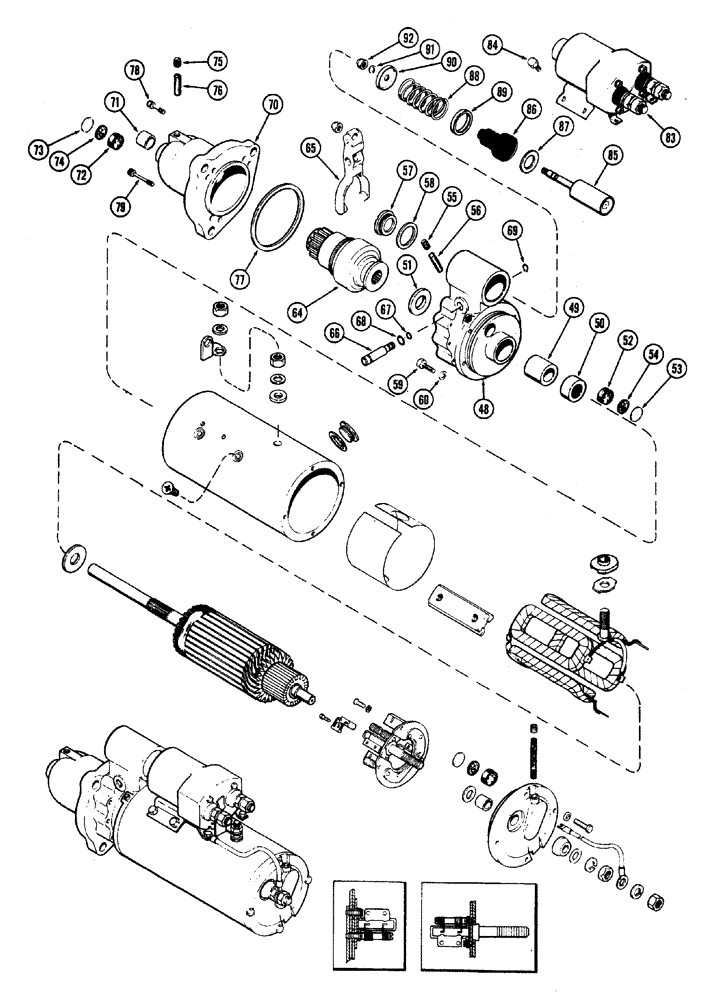

Запчасти Case W20 (055C) - R26137 STARTER, USED TRAC. SERIAL NO. 9115403 AND AFTER (CONTINUATION) (04) - ELECTRICAL SYSTEMS

R26137

STARTER MOTOR

ASSY Continuation from Figure 55A

1шт.

48

R21579

HOUSING

ASSY shift lever, Includes Ref: 49-56

1шт.

49

R21580

BUSHING

housing, 27/32" x 1" x 1-1/4"

1шт.

50

R21582

OIL SEAL

oil, 13/16" x 1-3/8" x 13/32"

1шт.

51

R15145

DISC

WASHER brake starter drive

1шт.

52

A41923

PLUG

oil reservoir, felt

1шт.

53

41-57

PLUG,Exp, 1 1/32"

expansion, oil reservoir hole, 1-1/32"

1шт.

54

A41973

GASKET

expansion plug

1шт.

55

221-1041

PLUG

oil wick hole

1шт.

56

R15023

WICK

oil

1шт.

57

R21587

PLUG

shift lever housing

1шт.

58

A41924

GASKET

housing plug

1шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing

5шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

5шт.

64

A42397

DRIVE

ASSY starter

1шт.

65

D32547

LEVER

shifter

1шт.

66

A42199

PIN

STUD pivot, shifter lever

1шт.

67

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

pivot stud, 1/4" x 3/8" x 1/16"

1шт.

68

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

pivot stud, 3/8" x 1/2" x 1/16"

1шт.

69

G46146

SNAP RING,#37, Ext

pivot stud retaining #37, Ext

1шт.

70

A44168

HOUSING

ASSY drive end, Includes Ref: 71-76

1шт.

71

A40893

BUSHING

armature pilot, 5/8" x 3/4" x 25/32"

1шт.

72

A41923

PLUG

oil reservoir, felt

1шт.

73

41-57

PLUG,Exp, 1 1/32"

expansion, oil reservoir hole, 1-1/32"

1шт.

74

A41973

GASKET

expansion plug

1шт.

75

221-1041

PLUG

oil wick hole

1шт.

76

R15023

WICK

oil

1шт.

77

R21562

GASKET

drive end housing to shifter lever housing

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

socket head, drive end housing, 5/16" x 7/8" NC

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

socket head, drive end housing, 5/16" x 1-1/2" NC

5шт.

83

A42376

SWITCH

SOLENOID ASSY, See Figure: 56

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

hex, solenoid mounting, 1/4" x 3/8" NC

4шт.

85

A42309

PLUNGER

solenoid core

1шт.

86

A42308

BOOT

plunger

1шт.

87

A41922

WASHER

SEAT boot, 27/32" x 1-3/8" x 1/16"

1шт.

88

A41242

SPRING

plunger return

1шт.

89

A43380

BACK-UP RING

SEAT spring, with 1-1/4" hole

1шт.

90

A43419

SEAT

spring, with 3/8" hole

1шт.

91

G46146

SNAP RING,#37, Ext

plunger spring retaining #37, Ext

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT plunger to shifter lever

1шт.
