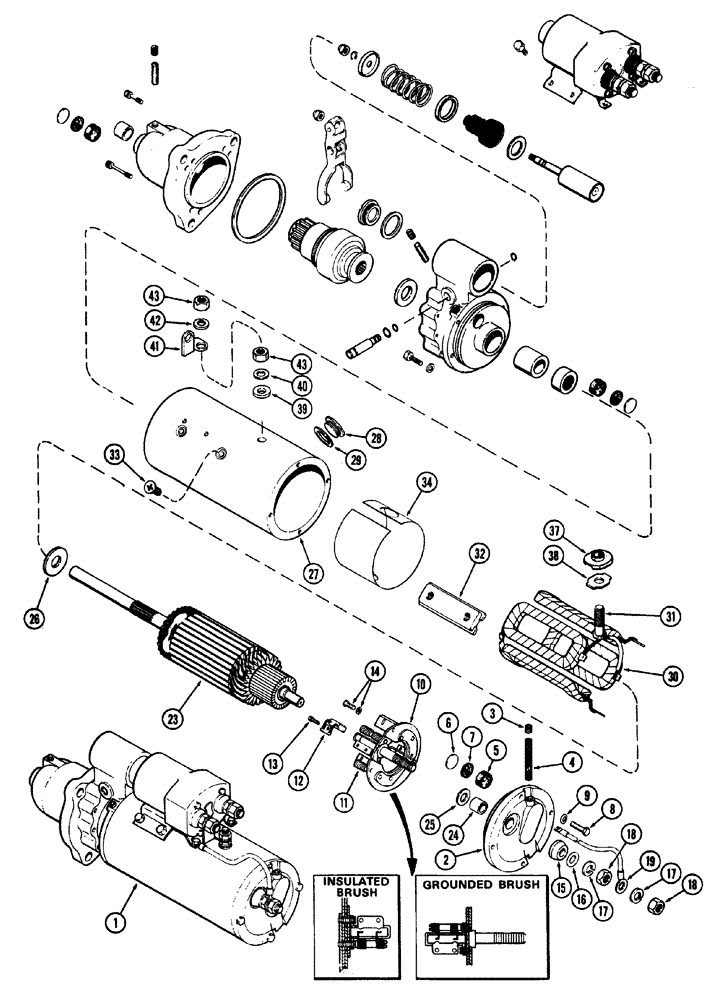

Запчасти Case W20 (055A) - R26137 STARTER, USED TRAC. SERIAL NO. 9115403 AND AFTER (04) - ELECTRICAL SYSTEMS

1

R26137

STARTER MOTOR

ASSY (Delco-Remy #1113998), Includes Ref: 2-43

1шт.

2

A40897

FRAME

ASSY commutator end, Includes Ref: 3-7

1шт.

3

221-1041

PLUG

oil wick hole

1шт.

4

R15023

WICK

oil

1шт.

5

A41923

PLUG

oil reservoir, felt

1шт.

6

41-57

PLUG,Exp, 1 1/32"

expansion, oil reservoir hole, 1-1/32"

1шт.

7

A41973

GASKET

expansion plug

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

10

A42373

PLATE

ASSY brush holder, less brushes, Includes Ref: 11

1шт.

11

A25393

SPRING

brush tension

8шт.

12

A41456

BRUSH, COMMUTATOR

BRUSH starter

8шт.

13

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

round head, brush attach, #8-32 x 5/16"

8шт.

14

A43847

SCREW,3/8" - 32 x 1/2"

ASSY mounting plate, with lockwasher

3шт.

15

A43701

BUSHING

terminal stud insulating

1шт.

16

D30006

WASHER

term stud, 1/2" x 7/8" x 1/32"

1шт.

17

192-113

LOCK WASHER,1/2"

lock, term stud, 1/2"

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

19

A41978

ELECTRICAL WIRE

WIRE term, Serial Range: stud-solenoid

1шт.

23

A41458

ARMATURE

1шт.

24

A42323

BUSHING

armature pilot, in comm end

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

thrust, armature, at comm end

1шт.

26

A40892

WASHER

thrust, armature, at lever housing

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME starter housing

1шт.

28

R21587

PLUG

brush inspection

2шт.

29

A41924

GASKET

inspection plug

2шт.

30

A41590

COIL

ASSY field, Includes Ref: 31

1шт.

31

A40896

STUD

field terminal

1шт.

32

R15115

SHOE

pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

Phillips head, pole shoes, 3/8" x 5/8" NC

8шт.

34

A44169

INSULATOR

coil

1шт.

A41925

BUSHING

ASSY field coil stud insulation, Includes Ref: 37, 38

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR field coil stud, inner

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT stud insulator

1шт.

39

D30005

INSULATOR

field coil stud, outer

2шт.

40

D30006

WASHER

field coil stud, 1/2" x 7/8" x 1/32"

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR coil, Serial Range: stud-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

lock, 1/2"

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.
