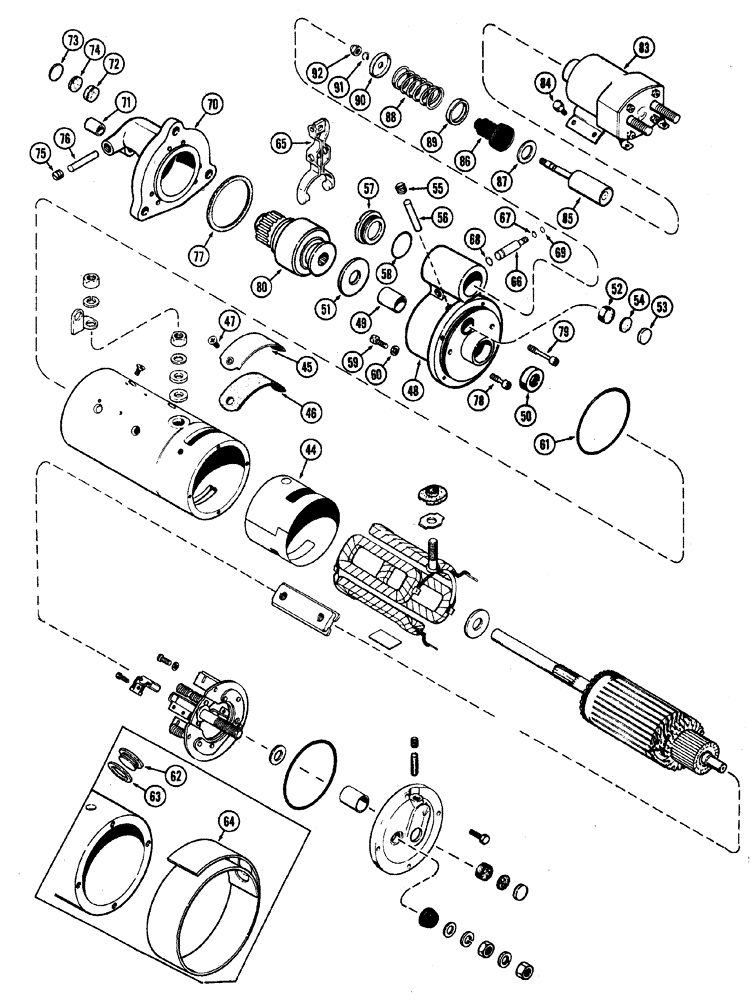

Запчасти Case W20 (054) - D42964 STARTER, USED PRIOR TO TRAC. SERIAL NO. 9115403 (CONTINUATION) (04) - ELECTRICAL SYSTEMS

D42964

X

STARTER ASSY Continued from Figure 52, Includes Ref: 44-92

1шт.

44

A41920

INSULATOR

field coil, see Ref. 64

1шт.

45

A43366

PLATE

cover, brush, see Ref. 62

2шт.

46

A41849

GASKET

cover

1шт.

47

171-207

SCREW,Flat Hd, 1/4" x 1/2"

flat head, cover plate, 1/4" x 1/2" NC

2шт.

48

R21579

HOUSING

ASSY shift lever, Includes Ref: 49-56

1шт.

49

R21580

BUSHING

lever housing, 7/8" x 1" x 1-1/4"

1шт.

50

R21582

OIL SEAL

oil 13/16" x 1-3/8" x 3/8"

1шт.

51

R15145

DISC

WASHER brake, starter drive

1шт.

52

A41923

PLUG

housing

1шт.

53

41-57

PLUG,Exp, 1 1/32"

expansion, 1-1/32"

1шт.

54

A41973

GASKET

plug

1шт.

55

221-1041

PLUG

slotted head, 1/8" PT

1шт.

56

R15023

WICK

oil

1шт.

57

R21587

PLUG

shift lever housing

1шт.

58

A41924

GASKET

plug

1шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing

5шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

5шт.

61

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

shift lever housing, 4-1/8" x 4-3/8" x 1/8"

1шт.

62

R21587

PLUG

brush inspection hole

1шт.

63

A41924

GASKET

plug

1шт.

64

A44169

INSULATOR

INSULATION field coil

1шт.

65

D32547

LEVER

ASSY drive shift

1шт.

66

A42199

PIN

STUD shift lever

1шт.

67

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

stud, 1/4" x 3/8" x 1/16"

1шт.

68

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

stud, 3/8" x 1/2" x 1/16"

1шт.

69

A40422

RING

snap, stud and plunger retaining

2шт.

70

A40283

HOUSING

ASSY drive end, Includes Ref: 71-76

1шт.

71

A40893

BUSHING

drive housing, 5/8" x 3/4' x 3/4"

1шт.

72

A41923

PLUG

felt

1шт.

73

41-57

PLUG,Exp, 1 1/32"

expansion, 1-1/32"

1шт.

74

A41973

GASKET

plug

1шт.

75

221-1041

PLUG

slotted head, 1/8" PT

1шт.

76

R15023

WICK

oil

1шт.

77

R21562

GASKET

drive housing

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

socket head, drive housing, 5/16" x 7/8" NC

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

socket head, drive housing, 5/16" x 1-1/2" NC

5шт.

80

A42397

DRIVE

ASSY starter

1шт.

83

A42376

SWITCH

SOLENOID ASSY, Seee Figure: 56

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

solenoid mounting

4шт.

85

A42309

PLUNGER

solenoid switch

1шт.

86

A42308

BOOT

plunger

1шт.

87

A41922

WASHER

boot seat

1шт.

88

A41242

SPRING

plunger

1шт.

89

R21572

RETAINER

plunger spring, inner

1шт.

90

R21571

RETAINER

plunger spring, outer

1шт.

91

A40422

RING

snap, plunger spring

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT hex, 5/16" NF

1шт.
