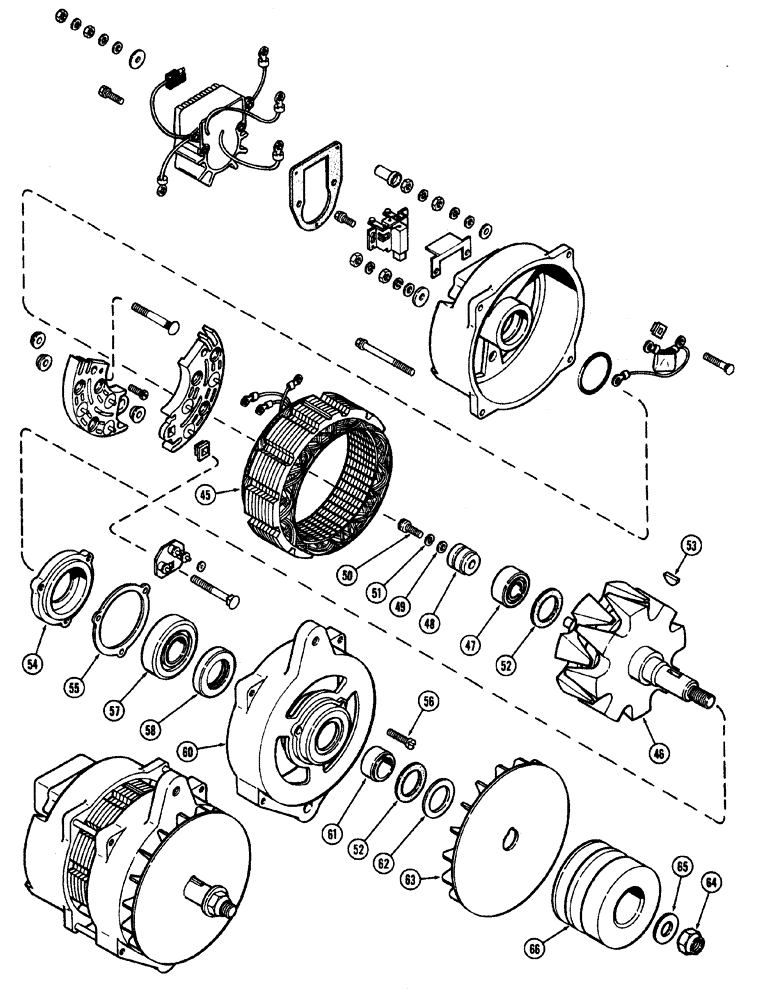

Запчасти Case W20 (051A) - L59724ALTERNATOR (70AMP) USED TRAC. SERIAL NO. 9115403 AND AFTER WITH INTEGRAL VOLTAGE REGULATOR (04) - ELECTRICAL SYSTEMS

L59724

ALTERNATOR

ALTERNATOR ASSY Continuation from Figure 50, Includes Ref: 45-65

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

45

A44606

STATOR

ASSY

1шт.

46

A44605

ROTOR

ASSY, Includes Ref: 47,48

1шт.

47

A44610

BEARING

rear, 11/16 x 1-1/2 x 11/16"

1шт.

48

A44619

RING

slip

1шт.

49

A42811

SPARE PART washer, Includes Ref: 50, 51

1шт.

50

163-4

SCREW,Hex, #10 - 32 x 5/8"

socket head, #10-32 x 5/8"

1шт.

51

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

52

A44621

SPARE PART WASHER bearing seal, felt

1шт.

53

126-115

WOODRUFF KEY,#8, 5/32" x 3/4", HT

Rotor shaft

1шт.

54

A44611

RETAINER

front bearing

1шт.

55

A44617

SPARE PART bearing retainer

1шт.

56

174-213

SPARE PART SCREW slotted head, retainer, #10-32 x 1"

3шт.

57

A44609

BEARING

front

1шт.

58

A44618

DIODE

SEAL oil, front bearing

1шт.

60

A44604

HOUSING

front

1шт.

61

A44615

SPARE PART fan

1шт.

62

A44631

SPARE PART dust

1шт.

63

A44608

SPARE PART ventilation

1шт.

64

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

Pulley

1шт.

65

195-2201

WASHER,0.69" ID x 1.12" OD x 0.07" Thk

5/8" x 1-1/4" x 1/16"

1шт.

66

L51491

SPARE PART alternator drive

1шт.
