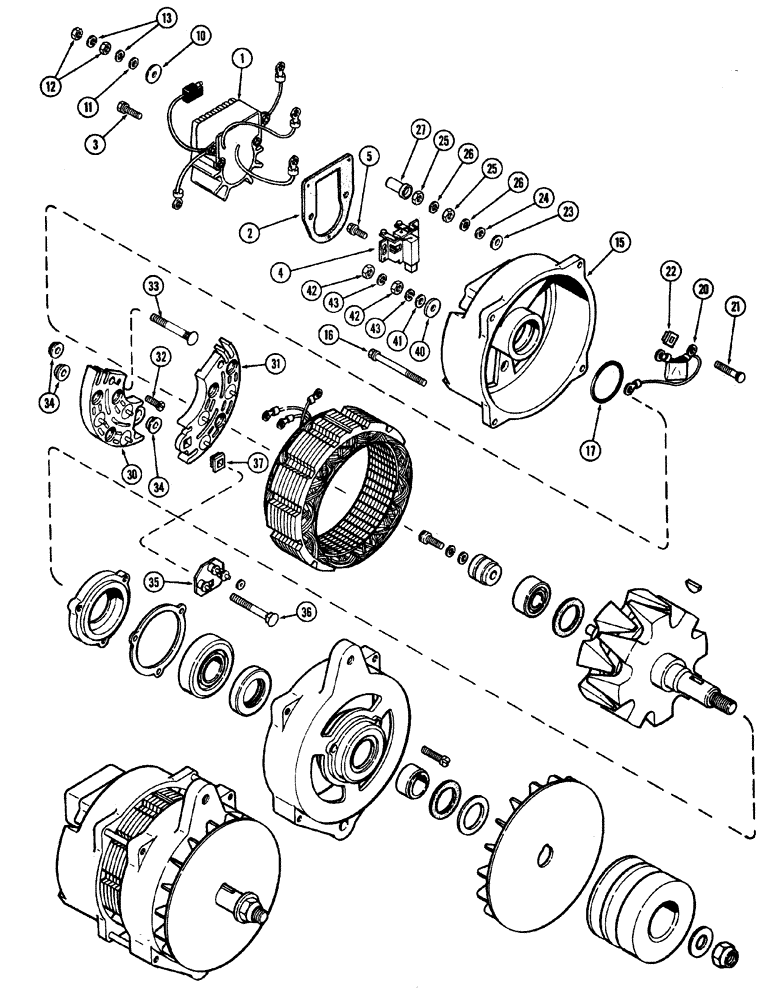

Запчасти Case W20 (050) - L59724 ALTERNATOR (70AMP) USED TRAC. SERIAL NO. 9115403 AND AFTER WITH INTEGRAL VOLTAGE REGULATOR (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
L59724
ALTERNATOR
ALTERNATOR ASSY less pulley (Motorola #8SA3008P), Includes Ref: 1-43
1шт.
104021A1R
REMAN-ALTERNATOR
Remanufactured 24 Volt, 35 Amp Alternator
1шт.
104021A1C
CORE-ALTERNATOR
Return Number, 24 VoltT, 35 Amp Alternator
1шт.
1
A44961
SPARE PART ASSY voltage and brush cover
1шт.
2
A41341
GASKET
voltage regulator to rear cover
1шт.
3
187-482
SPARE PART slotted head, regulator, #8-32 x 3/4"
2шт.
4
A44614
BRUSH, COMMUTATOR
BRUSH ASSY with holder
1шт.
5
187-480
SCREW,Hex Hd, #8 x 1/2"
slotted head, brush holder, #8-32 x 1/2"
2шт.
10
A41038
WASHER
insulator
1шт.
11
195-1009
WASHER
3/16" x 7/16" x 1/32"
1шт.
12
129-17
NUT,Hex, #10 - 24
1шт.
13
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
1шт.
15
A44607
SPARE PART COVER rear
1шт.
16
A44623
SPARE PART
4шт.
17
A42806
RING
O-RING bearing seal, 1-1/2" x 1-13/16" x 1/8"
1шт.
20
A44632
CAPACITOR
SUPPRESSOR ASSY
1шт.
21
A41436
SCREW
TERMINAL phase tap
3шт.
22
A44625
INSULATOR
terminal
3шт.
23
A44627
WASHER insulator
3шт.
24
G49045
WASHER
1/4" x 9/16" x 1/16"
3шт.
25
129-17
NUT,Hex, #10 - 24
3шт.
26
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
3шт.
27
A44630
CYLINDER END CAP
phase tap terminal, plastic
3шт.
30
A44612
PLATE
ASSY negative diode, black color code
1шт.
31
A44613
PLATE
ASSY positive diode, red color code
1шт.
32
184-480
SCREW slotted head, negative plate, #8-32 x 3/4"
1шт.
33
A44633
SPARE PART TERMINAL diode plate, ribbed
2шт.
34
A43433
INSULATOR
diode plate
4шт.
35
A44618
DIODE
ASSY isolation
1шт.
36
A44622
SPARE PART TERMINAL isolation diode
1шт.
37
A44626
INSULATOR
diode terminal
1шт.
40
A41038
WASHER
insulator
3шт.
41
195-1009
WASHER
3/16" x 7/16" x 1/32"
3шт.
42
129-121
NUT,1/4"-28, G5
6шт.
43
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
6шт.
Выбрано товаров: 35
