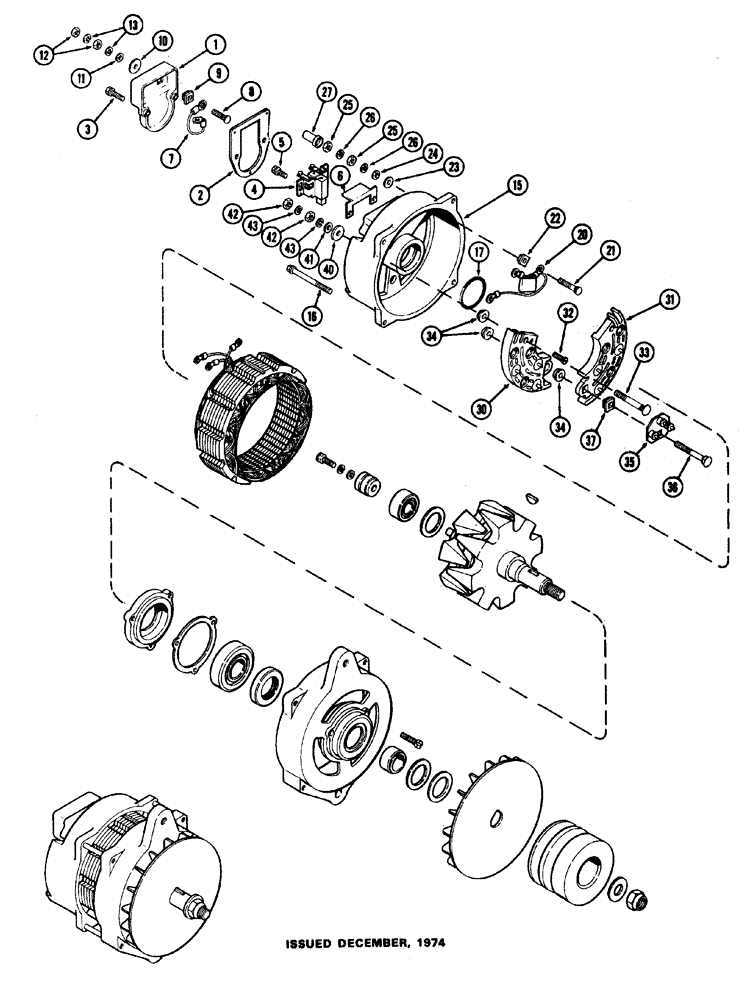

Запчасти Case W20 (046) - L51531 ALTERNATOR (70 AMP) USED BEFORE TRAC. SERIAL NO. 9115403 WITHOUT INTEGRAL VOLTAGE REGULATOR (04) - ELECTRICAL SYSTEMS

L51531

SPARE PART ASSY less pulley and voltage regulator (Motorola #8SA3005P), Includes Ref: 1-43

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 35 AMP ALTERNATOR - NA Only

1шт.

1

A44620

TOOTH

COVER brush assembly

1шт.

2

A41341

GASKET

cover

1шт.

3

187-482

SPARE PART slotted head, cover, #8-32 x 3/4"

2шт.

4

A44614

BRUSH, COMMUTATOR

BRUSH ASSY with holder

1шт.

5

187-480

SCREW,Hex Hd, #8 x 1/2"

slotted head, brush holder, #8-32 x 1/2"

2шт.

6

A44624

INSULATOR

brush

1шт.

7

A44629

CABLE

brush to field terminal

1шт.

8

A41036

SCREW

TERMINAL field

1шт.

9

A44625

INSULATOR

field terminal

1шт.

10

A41038

WASHER

insulator, field terminal

1шт.

11

195-1009

WASHER

3/16" x 7/16" x 1/32"

1шт.

12

129-17

NUT,Hex, #10 - 24

1шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

15

A44607

SPARE PART COVER rear

1шт.

16

A44623

SPARE PART

4шт.

17

A42806

RING

O-RING bearing seal, 1-1/2" x 1-13/16" x 1/8"

1шт.

20

A44632

CAPACITOR

SUPPRESSOR ASSY

1шт.

21

A41436

SCREW

TERMINAL phase tap

3шт.

22

A44625

INSULATOR

terminal

3шт.

23

A44627

WASHER insulator

3шт.

24

G49045

WASHER

1/4 x 9/16 x 1/16"

3шт.

25

129-17

NUT,Hex, #10 - 24

3шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

27

A44630

CYLINDER END CAP

phase tap terminal, plastic

3шт.

30

A44612

PLATE

ASSY negative diode, black color code

1шт.

31

A44613

PLATE

ASSY positive diode, red color code

1шт.

32

187-480

SCREW,Hex Hd, #8 x 1/2"

slotted head, negative plate, #8-32 x 3/4"

1шт.

33

A44633

SPARE PART TERMINAL diode plate, ribbed

2шт.

34

A43433

INSULATOR

diode plate

4шт.

35

A44618

DIODE

ASSY isolation

1шт.

36

A44622

SPARE PART TERMINAL isolation diode

1шт.

37

A44626

INSULATOR

diode terminal

1шт.

40

A41038

WASHER

insulator

3шт.

41

195-1009

WASHER

3/16" x 7/16" x 1/32"

3шт.

42

129-121

NUT,1/4"-28, G5

6шт.

43

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

6шт.
