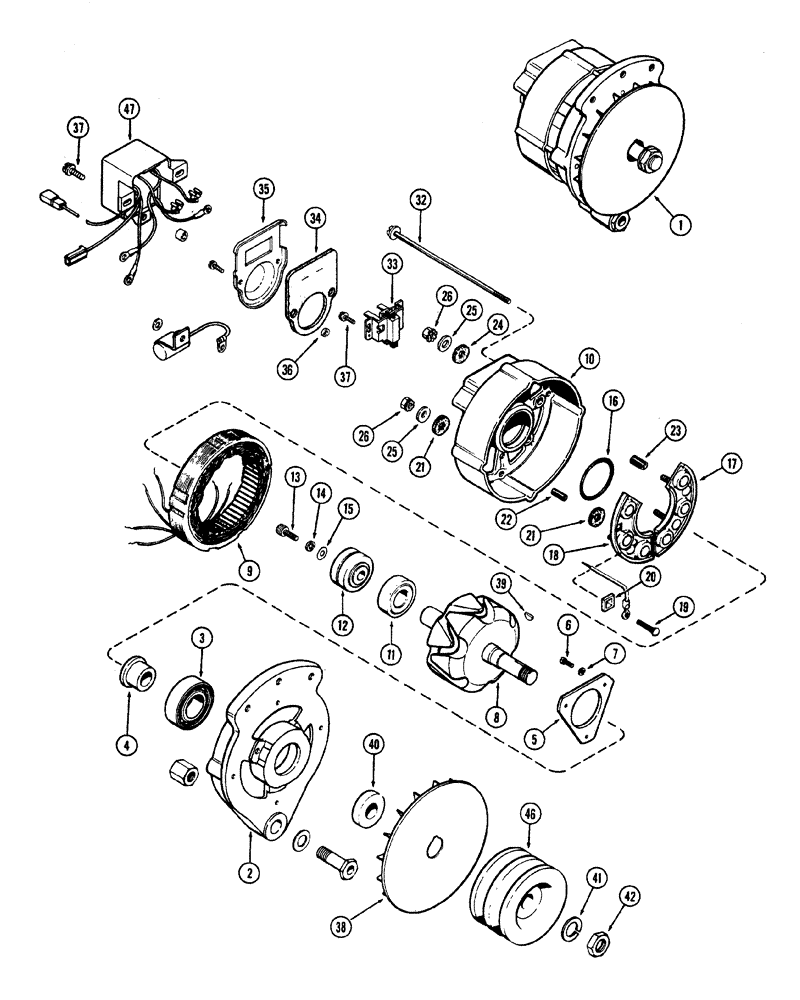

Запчасти Case W20 (045A) - A44798 AND L55767 ALTERNATOR (30 AMP) USED TRAC. SERIAL NO. 9115403 AND AFTER (04) - ELECTRICAL SYSTEMS

L55767

ALTERNATOR

ALTERNATOR ASSY production only (Motorola #8HC3006F), order 1-A44798 alternator, 1-A44783 regulator, and 1-A41361 pulley.

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

1

A44798

ALTERNATOR

ASSY repair only, Includes Ref: 2-42

1шт.

2

A44774

HOUSING

front

1шт.

3

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

housing, front, 1" x 2" x 9/16"

1шт.

4

A41052

SLEEVE

bearing pilot

1шт.

5

A43280

RETAINER

front bearing

1шт.

6

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

slotted head, front retainer, #8-32 x 3/8"

3шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

3шт.

8

A44775

IMPELLER

ROTOR

1шт.

9

A44672

STATOR

1шт.

10

A44776

SPARE PART rear

1шт.

11

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

housing, rear

1шт.

12

A44581

RING

slip, order A44580

1шт.

13

163-4

SCREW,Hex, #10 - 32 x 5/8"

socket head, slip ring, 10" x 5/8", 12 pt

1шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

15

A44788

WASHER

slip ring

1шт.

18

A42806

RING

O-RING rear bearing, 1-1/2" x 1-3/4" x 1/8"

1шт.

17

A44777

DIODE

ASSY negative, with 2 attached studs

1шт.

18

A44778

DIODE

DIODE ASSY positive, with 1 attached stud

1шт.

19

A41436

SCREW

STUD - positive diode ring, #10 x 1-1/2" NC carr hd

1шт.

20

A41041

INSULATOR

positive diode stud

1шт.

21

A44763

WASHER

insulating, 1/4" x 3/4" x 1/16"

2шт.

22

A44771

SLEEVE CYLINDER

insulator 1/4" x 5/16" x 1/2"

1шт.

23

A44782

INSULATOR

SLEEVE 3/16" x 1/4" x 3/8"

2шт.

24

A41038

WASHER

insulating, 3/16" x 3/4" x 1/16"

4шт.

25

A44789

SPARE PART 3/8" x 3/16"

4шт.

26

A41060

LOCK NUT

hex, #10-24, w/skpf washer

4шт.

32

A44423

BOLT

thru, #10 NF x 3-1/8"

4шт.

33

A44779

BRUSH, COMMUTATOR

BRUSH ASSY with holder

1шт.

34

A44781

SPARE PART brush cover, felt

1шт.

35

A44785

COVER

brush

1шт.

36

A44784

SPARE PART brush cover, 3/16" x 9/32" x 1/16"

2шт.

37

187-1089

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

slotted head, regulator and brush holder, #8-32 x 3/4"

1шт.

38

A42431

FAN

1шт.

39

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Fan and pulley

1шт.

40

A42432

SPACER

fan, 5/8" x 1-3/8" x 11/32"

1шт.

41

192-25

LOCK WASHER,5/8"

1шт.

42

A41035

NUT

hex, pulley retaining, 5/8" NF

1шт.

46

A41361

PULLEY

alternator

1шт.

47

A44783

VALVE

REGULATOR ASSY voltage

1шт.
