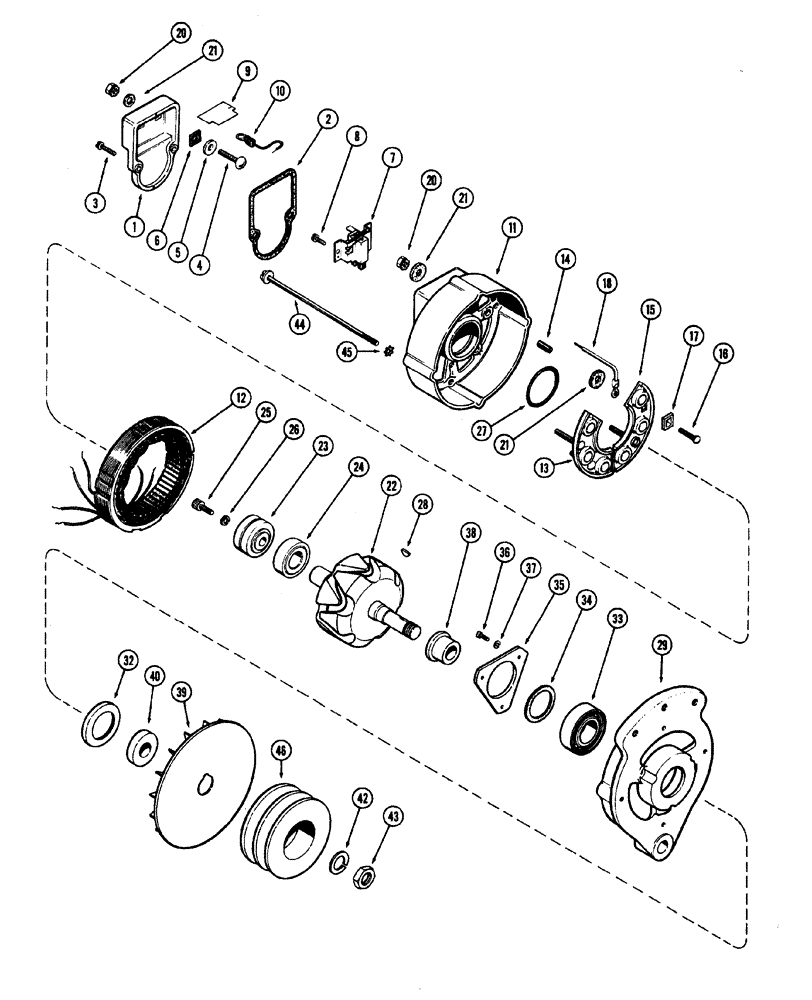

Запчасти Case W20 (044) - A41360 ALTERNATOR (35 AMP) USED BEFORE TRAC. SERIAL NO. 9115403 (04) - ELECTRICAL SYSTEMS

A41360

ALTERNATOR

ASSY. less pulley (Motorola #MH24N-901), Includes Ref: 1-45

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 24 volt 40 ampere

1шт.

104260A1C

CORE-ALTERNATOR

Return Number

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

1

A41435

COVER ASSY

rear housing

1шт.

2

A41341

GASKET

, Serial Range: cover-body

1шт.

3

187-482

SPARE PART self-tapping, cover, #8 x 3/4"

2шт.

4

A41036

SCREW

field wire, #10-24 round head

1шт.

5

G49045

WASHER

1/4" x 5/8" x 16"

1шт.

6

A41041

INSULATOR

brush

1шт.

7

A41048

BRUSH, COMMUTATOR

BRUSH ASSY includes holder

1шт.

8

187-480

SCREW,Hex Hd, #8 x 1/2"

hex head, self-tapping, brush, #8 x 1/2"

2шт.

9

A41042

INSULATOR

brush shunt lead

1шт.

10

A41046

ELECTRICAL WIRE

WIRE CABLE internal field

2шт.

11

A41045

COVER

rear

1шт.

12

A42809

STATOR

ASSY

1шт.

13

A42808

DIODE

ASSY negative, black

1шт.

14

A41040

INSULATOR

nylon, cut as required, 3/16" x 1/4" x 68"

2шт.

15

A41443

DIODE ELEMENT

ASSY positive, red

1шт.

16

A41436

SCREW

STUD rectifier ring

1шт.

17

A41041

INSULATOR

rectifier stud

1шт.

18

A41432

CABLE PULLING GRIP

phase tap

1шт.

20

A41060

LOCK NUT

hex, #10-24, sems

7шт.

21

A41038

WASHER

insulating, 3/16 x 3/4 x 1/16"

7шт.

22

A42807

ROTOR

ASSY, Includes Ref: 23-26

1шт.

23

A41032

SLIP RING

SLIP RING

1шт.

24

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

sealed

1шт.

25

163-4

SCREW,Hex, #10 - 32 x 5/8"

socket head, #10-32 x 5/8"

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

27

A42806

RING

rear bearing

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley

1шт.

29

A41437

HOUSING

ASSY front, includes adaptor

1шт.

32

A41047

SEAL ASSY.

bearing, front housing

1шт.

33

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

sealed, front, 1" x 2-1/16" x 5/8"

1шт.

34

A41039

RETAINER

WASHER 1-1/4" x 1-5/8" x 3/32"

1шт.

35

A41050

SPARE PART front bearing

1шт.

36

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

pan head, #8 x 3/8" NC

3шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

3шт.

38

A41052

SLEEVE

rotor shaft

1шт.

39

A42431

FAN

cooling

1шт.

40

A42342

INSULATOR

SPACER fan

1шт.

42

192-25

LOCK WASHER,5/8"

1шт.

43

A41035

NUT

hex, pulley, 5/8" NF

1шт.

44

A41037

BOLT

housing

4шт.

45

193-41

WASHER,Ext-Int Tooth, #8

4шт.

46

A41361

PULLEY

drive, alternator

1шт.
