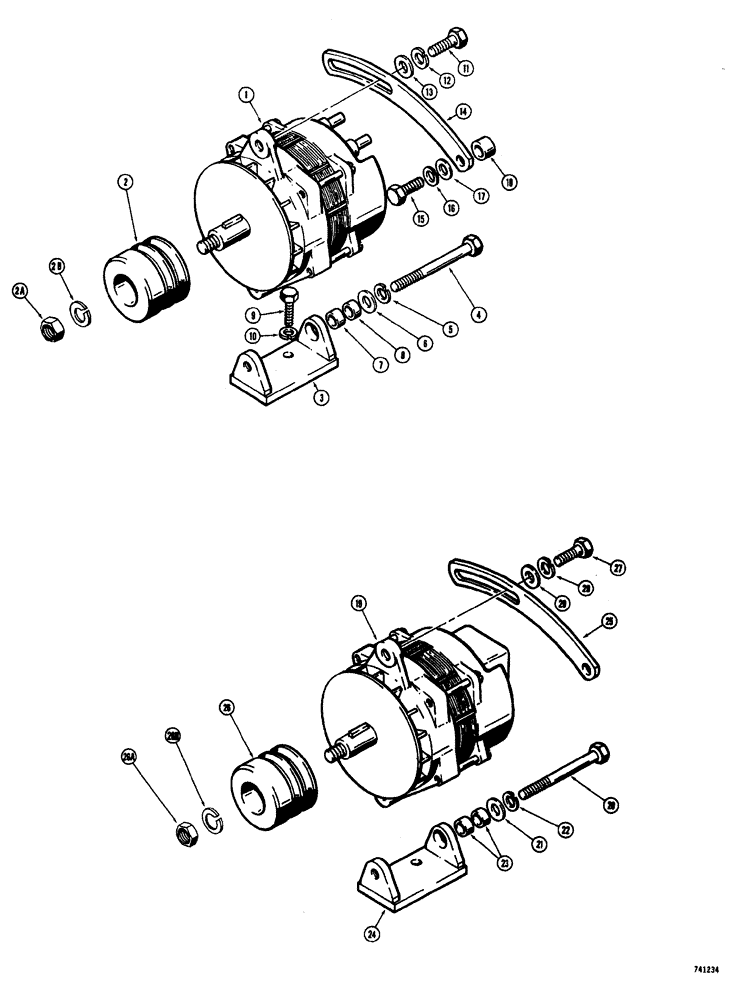

Запчасти Case W20 (043A) - ALTERNATOR MOUNTING PARTS, L51531 ALTERNATOR (70 AMP) / L59724 ALTERNATOR (70 AMP) (04) - ELECTRICAL SYSTEMS

1

L51531

SPARE PART 70 amp, 24 volt, See parts list Figure: 46, Serial Range: -9115403

1шт.

1

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

1

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

2

L51491

SPARE PART alternator, 70 amp, Includes: Ref. 2A & 2B, Serial Range: -9115403

1шт.

2a

A41035

NUT

pulley retaining, 5/8" - 18 NF, Serial Range: -9115403

1шт.

2b

192-25

LOCK WASHER,5/8"

, Serial Range: -9115403

1шт.

3

L51493

SPARE PART alternator mounting, 70 amp, Serial Range: -9115403

1шт.

4

13-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

Alternator to bracket, Serial Range: -9115403

1шт.

5

192-23

LOCK WASHER,1/2"

, Serial Range: -9115403

1шт.

6

195-533

WASHER,1/2", SAE

, Serial Range: -9115403

1шт.

7

L51496

SPARE PART alternator mounting, Serial Range: -9115403

1-2шт.

8

L51497

SPARE PART alternator mounting, Serial Range: -9115403

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Alternator bracket to engine, Serial Range: -9115403

2шт.

10

192-21

LOCK WASHER,3/8"

, Serial Range: -9115403

2шт.

11

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Adjusting strap to alternator, Serial Range: -9115403

1шт.

12

192-21

LOCK WASHER,3/8"

, Serial Range: -9115403

1шт.

13

195-103

WASHER,5/16"

plain, 3/8", Serial Range: -9115403

1шт.

14

L51492

STRAP

adjusting, alternator, 70 amp, Serial Range: -9115403

1шт.

15

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

Adjusting strap to engine, Serial Range: -9115403

1шт.

16

92-6

LOCK WASHER,3/8"

, Serial Range: -9115403

1шт.

17

95-6

WASHER,3/8"

standard wrot, Serial Range: -9115403

1шт.

18

A27328

SPACER

adjusting strap to engine, Serial Range: -9115403

1шт.

19

L59724

ALTERNATOR

70 amp, 24 volts, parts list Figure 50, Start Serial: 9115403

1шт.

20

13-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

Alternator to bracket, Start Serial: 9115403

1шт.

21

195-533

WASHER,1/2", SAE

, Start Serial: 9115403

1шт.

22

192-23

LOCK WASHER,1/2"

, Start Serial: 9115403

1шт.

23

L51496

SPARE PART alternator mounting, Start Serial: 9115403

2шт.

24

L51493

SPARE PART alternator mounting, 70 amp, Start Serial: 9115403

1шт.

25

L51492

STRAP

adjusting, alternator, 70 amp, Start Serial: 9115403

1шт.

26

L51491

SPARE PART alternator, 70 amp, Includes: Ref. 26A & 26B, Start Serial: 9115403

1шт.

26a

A41035

NUT

pulley retaining, 5/8" - 18 NF, Start Serial: 9115403

1шт.

26b

192-25

LOCK WASHER,5/8"

, Start Serial: 9115403

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Adjusting strap to alternator, Start Serial: 9115403

1шт.

28

192-21

LOCK WASHER,3/8"

, Start Serial: 9115403

1шт.

29

195-103

WASHER,5/16"

plain, 3/8" Zinc plated, Start Serial: 9115403

1шт.
