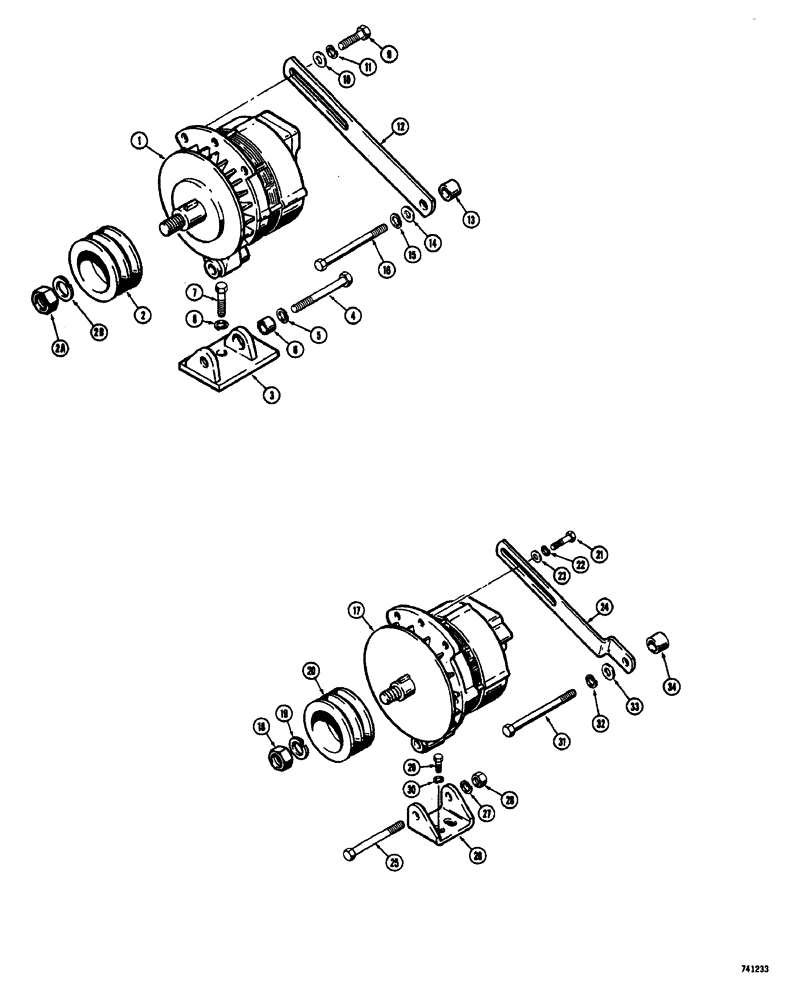

Запчасти Case W20 (042) - ALTERNATOR MOUNTING PARTS, A41360 ALTERNATOR (35 AMPS) / A44798 ALTERNATOR (30 AMPS) (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A41360
ALTERNATOR
35 amp, 24 volt, See parts list Figure: 44, Serial Range: -9115403
1шт.
1
104021A1R
REMAN-ALTERNATOR
Remanufactured 24 Volt, 35 Amp Alternator
1шт.
1
104021A1C
CORE-ALTERNATOR
Return Number, 24 Volt, 35 Amp Alternator
1шт.
2
A41361
PULLEY
alternator, Includes: Ref. 2A & 2B, Serial Range: -9115403
1шт.
2a
A41035
NUT
pulley retaining, 5/8" - 18 NF, Serial Range: -9115403
1шт.
2b
192-25
LOCK WASHER,5/8"
, Serial Range: -9115403
1шт.
3
A38492
BRACKET
alternator mounting, Serial Range: -9115403
1шт.
4
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
, Serial Range: -9115403
1шт.
5
92-6
LOCK WASHER,3/8"
, Serial Range: -9115403
1шт.
6
L18857
SPACER
SPACER alternator, Serial Range: -9115403
1шт.
7
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
, Serial Range: -9115403
2шт.
8
192-21
LOCK WASHER,3/8"
, Serial Range: -9115403
2шт.
9
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
, Serial Range: -9115403
1шт.
10
95-5
WASHER,3/8" x 7/8" x .083"
standard wrot, 5/16", Serial Range: -9115403
1шт.
11
92-5
LOCK WASHER,5/16"
, Serial Range: -9115403
1шт.
12
A59098
STRAP
alternator adjusting, Serial Range: -9115403
1шт.
13
A27328
SPACER
strap, adjusting, Serial Range: -9115403
1шт.
14
95-6
WASHER,3/8"
standard wrot, Serial Range: -9115403
1шт.
15
92-6
LOCK WASHER,3/8"
, Serial Range: -9115403
1шт.
16
13-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
, Serial Range: -9115403
1шт.
17
A44798
ALTERNATOR
30 amp, 24 volt, parts list Figure: 45A, Includes: Ref. 18 & 19, Start Serial: 9115403
1шт.
18
A41035
NUT
pulley retaining, 5/8" - 18 NF, Start Serial: 9115403
1шт.
19
192-25
LOCK WASHER,5/8"
, Start Serial: 9115403
1шт.
20
A41361
PULLEY
alternator, Start Serial: 9115403
1шт.
21
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
, Start Serial: 9115403
1шт.
22
92-5
LOCK WASHER,5/16"
, Start Serial: 9115403
1шт.
23
95-5
WASHER,3/8" x 7/8" x .083"
plain, 5/16", Start Serial: 9115403
1шт.
24
A62429
STRAP
alternator adjusting, Start Serial: 9115403
1шт.
25
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
, Start Serial: 9115403
1шт.
26
A38492
BRACKET
alternator mounting, Start Serial: 9115403
1шт.
27
92-6
LOCK WASHER,3/8"
, Start Serial: 9115403
1шт.
28
25-106
NUT,3/8"-16, G5
hex, 3/8" - 16 NC, Start Serial: 9115403
1шт.
29
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
, Start Serial: 9115403
2шт.
30
92-6
LOCK WASHER,3/8"
, Start Serial: 9115403
2шт.
31
13-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
, Start Serial: 9115403
1шт.
32
92-6
LOCK WASHER,3/8"
, Start Serial: 9115403
1шт.
33
95-6
WASHER,3/8"
standard wrot, Start Serial: 9115403
1шт.
34
A27328
SPACER
adjusting strap to engine, Start Serial: 9115403
1шт.
Выбрано товаров: 38
