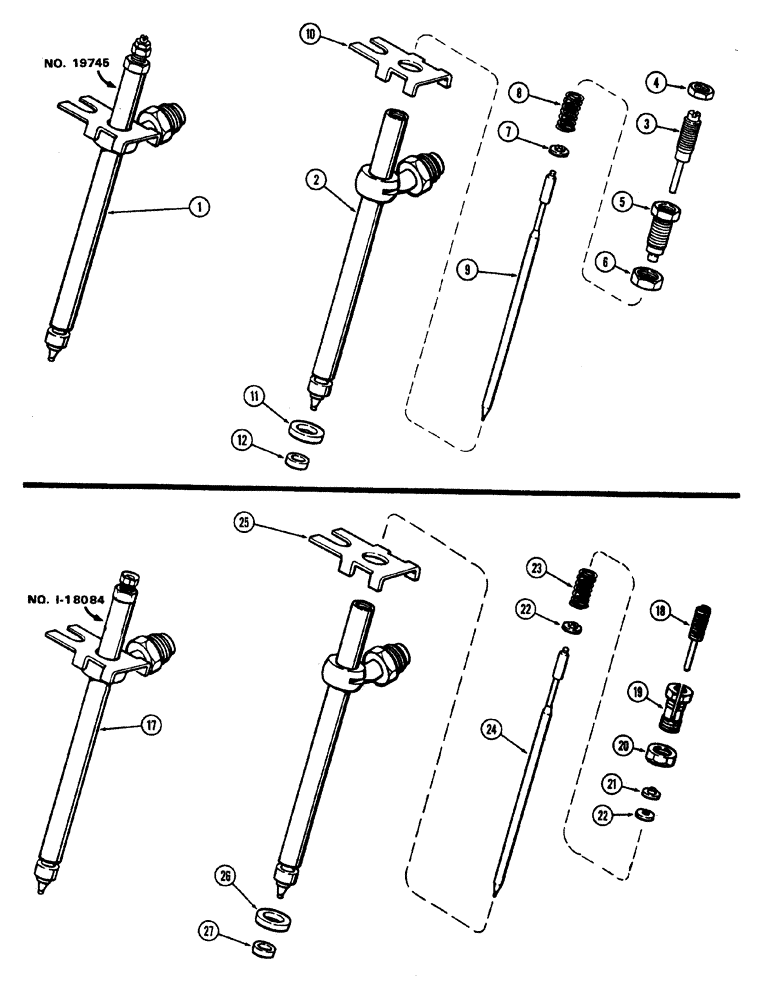

Запчасти Case W20 (038) - A62809 AND A58694 INJECTION NOZZLES (03) - FUEL SYSTEM

1

A62809

NOZZLE CAP

ASSY injector, Stanadyne #19745, nozzle opening pressure of 3200 PSI, first used engine Serial No. 2504221, Includes Ref: 2-12

6шт.

Whenever nozzle is removed from head, the seal A41402 and washer A41403 must be replaced before nozzle is installed back in head.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY nozzle, first used engine Serial No. 2504221

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

lift adjusting, first used engine Serial No. 2504221

1шт.

4

A43602

NUT

lock, lift adj screw, first used engine Serial No. 2504221

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

pressure adjusting, first used engine Serial No. 2504221

1шт.

6

A42424

LOCK NUT

lock, pressure adj screw, first used engine Serial No. 2504221

1шт.

7

A44369

SEAT

spring, first used engine Serial No. 2504221

1шт.

8

A43601

SPRING

pressure adjusting, 1/2" free length with brown stripe, first used engine Serial No. 2504221

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE nozzle, first used engine Serial No. 2504221

1шт.

10

A41768

PLATE

PLATE nozzle locating, first used engine Serial No. 2504221

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

plain, first used engine Serial No. 2504221

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, first used engine Serial No. 2504221

1шт.

17

A58694

NOZZLE

ASSY injector, Stanadyne #1-18084, nozzle opening pressure of 2800 PSI, used prior to engine Serial No. 2504221, Includes Ref: 18-27

6шт.

Whenever nozzle is removed from head, the seal A41402 and washer A41403 must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

W20 (PRIOR TO S/N 9115403) REMAN FOR NEW P/N A58694

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

18

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

lift adjusting, used prior to engine Serial No. 2504221

1шт.

19

A41409

ADJUSTMENT SCREW,5/16" - 48

pressure adjusting, used prior to engine Serial No. 2504221

1шт.

20

A42424

LOCK NUT

lock, adjusting screw, used prior to engine Serial No. 2504221

1шт.

21

A41407

WASHER

valve ball seat, used prior to engine Serial No. 2504221

1шт.

22

A41401

SEAT

pressure spring, used prior to engine Serial No. 2504221

2шт.

23

A41444

VALVE SPRING

pressure adjusting, used prior to engine Serial No. 2504221

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE nozzle, used prior to engine Serial No. 2504221

1шт.

25

A41768

PLATE

PLATE nozzle locating, used prior to engine Serial No. 2504221

1шт.

26

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

nylon, 3/8" x 9/16" x 1/8", used prior to engine Serial No. 2504221

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

teflon, carbon stop, 5/16" x 13/16" x 1/8", used prior to engine Serial No. 2504221

1шт.
