(037A) - A62730 INJECTION PUMP (401BD) DIESEL ENGINE WITH LUBE TUBE ON ENGINE SIDE OF PUMP

Запчасти Case W20 (037A) - A62730 INJECTION PUMP (401BD) DIESEL ENGINE WITH LUBE TUBE ON ENGINE SIDE OF PUMP (03) - FUEL SYSTEM

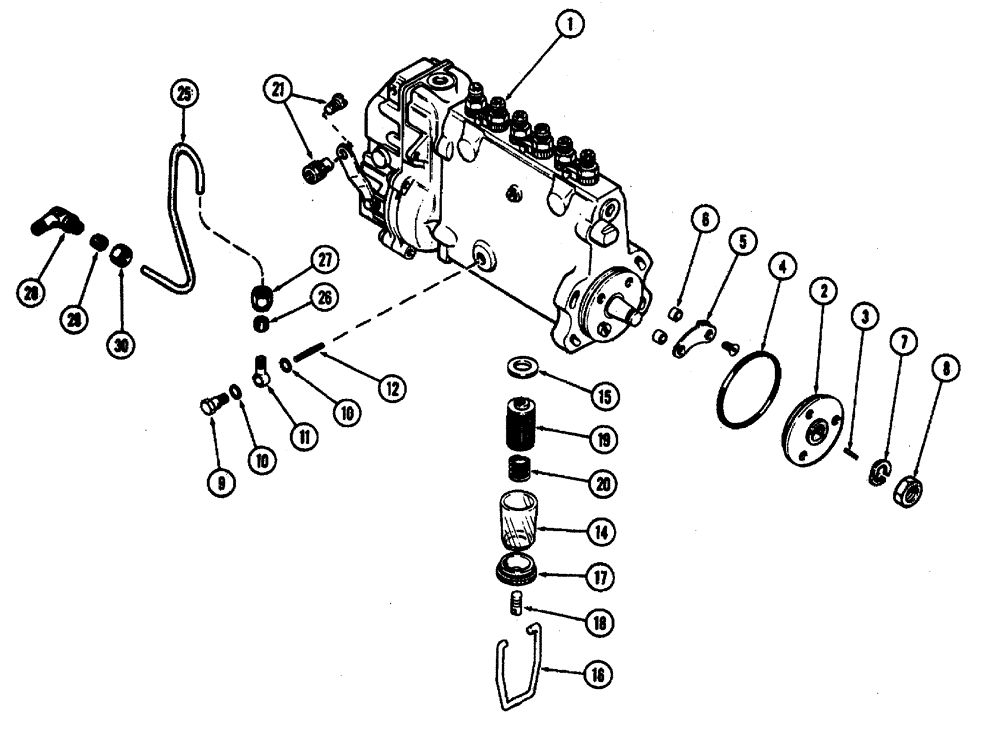

Схема запчастей Case W20 - (037A) - A62730 INJECTION PUMP (401BD) DIESEL ENGINE WITH LUBE TUBE ON ENGINE SIDE OF PUMP (03) - FUEL SYSTEM
20
12
10
18
30
27
28
9
26
19
7
1
29
5
4
10
15
11
3
14
6
16
17
21
8
2
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62730

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY 2200 RPM, Includes Ref: 2-20

1шт.

2

A41853

HUB

pump drive

1шт.

3

A20933

KEY

, Serial Range: hub-shaft

1шт.

4

A41856

O-RING,3mm Thk x 75mm ID

hub, 3" x 3-1/4" x 1/8"

1шт.

5

A41854

INDICATOR

POINTER pump adjustment

1шт.

6

A41855

BUSHING

SPACER pointer

2шт.

7

A42312

LOCK WASHER

lock, hub nut

1шт.

8

A42313

NUT

hub retaining

1шт.

9

A25192

BANJO BOLT

oil tube fitting

1шт.

10

A22381

WASHER

copper, 7/16" x 1/2" x 1/16"

2шт.

11

A25191

FITTING

banjo type, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

oil tube fitting

1шт.

14

A43347

BOWL

filter

1шт.

15

A43346

GASKET

bowl

1шт.

16

A43350

CLAMP

BAIL bowl

1шт.

17

A43348

NUT

bail retaining

1шт.

18

A43349

STUD

lock, bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

20

A43345

SPRING

element tension

1шт.

21

A59101

PIVOT

stop control cable

1шт.

25

A58717

TUBE

pump to oil gallery port

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

for 1/4" tube

1шт.

28

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ELBOW ASSY in cylinder block, Includes Ref: 29, 30

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

for 1/4" tube

1шт.
