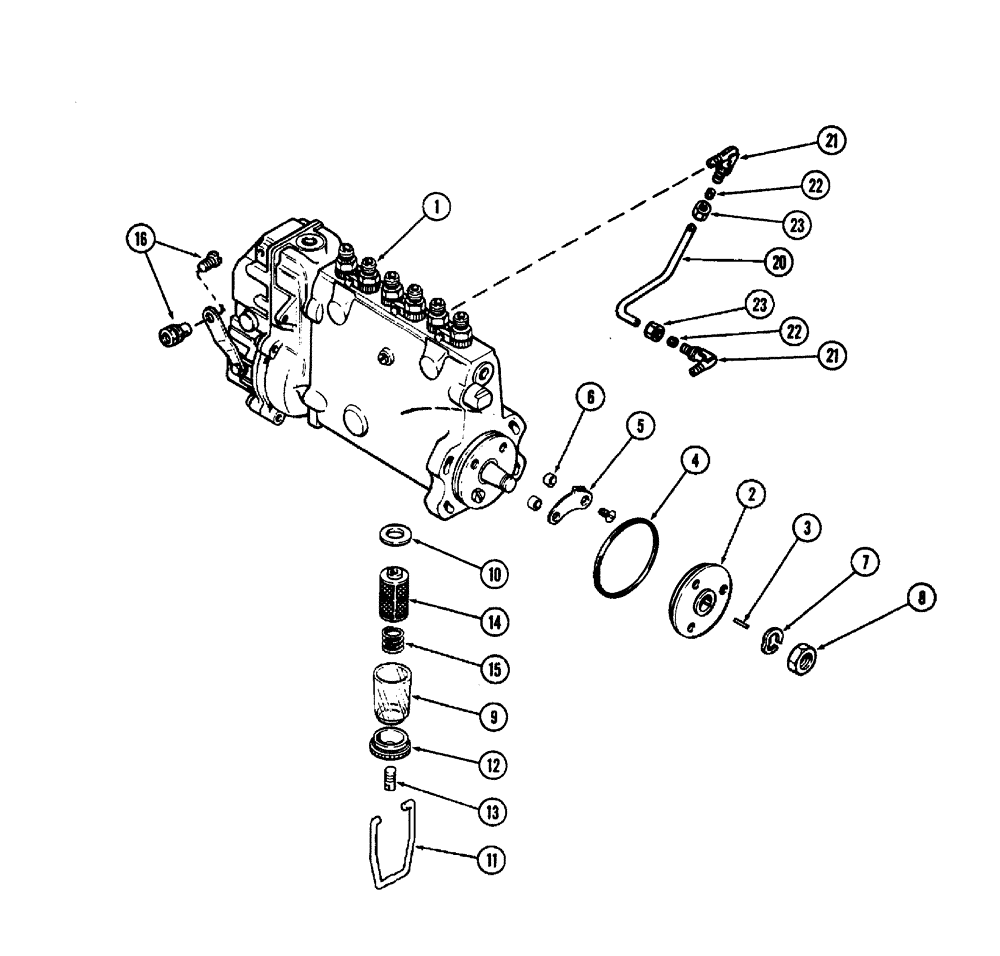

Запчасти Case W20 (036) - A138031 INJECTION PUMP (401BD) DIESEL ENGINE WITH LUBE TUBE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM

1

A138031

PUMP

ASSY fuel injection, Includes Ref: 2-15

1шт.

2

A41838

KIT

HUB pump drive

1шт.

3

A20933

KEY

, Serial Range: hub-shaft

1шт.

4

A41856

O-RING,3mm Thk x 75mm ID

hub, 3 x 3-1/4 x 1/8"

1шт.

5

A41854

INDICATOR

POINTER pump adjustment

1шт.

6

A41855

BUSHING

SPACER pointer

2шт.

7

A42312

LOCK WASHER

lock, hub nut

1шт.

8

A42313

NUT

hub retaining

1шт.

9

A43347

BOWL

filter

1шт.

10

A43346

GASKET

bowl

1шт.

11

A43350

CLAMP

BAIL bowl

1шт.

12

A43348

NUT

bail retaining

1шт.

13

A43349

STUD

lock, bail nut

1шт.

14

A43344

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

15

A43345

SPRING

element tension

1шт.

16

A59101

PIVOT

stop control cable

1шт.

20

A136903

TUBE

lube line

1шт.

21

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ELBOW ASSY lube line, Includes Ref: 22, 23

2шт.

22

222-102

SLEEVE,1/4" Tube

1шт.

23

87017024

TUBE NUT,1/2"-24

for 1/4" tube

1шт.
