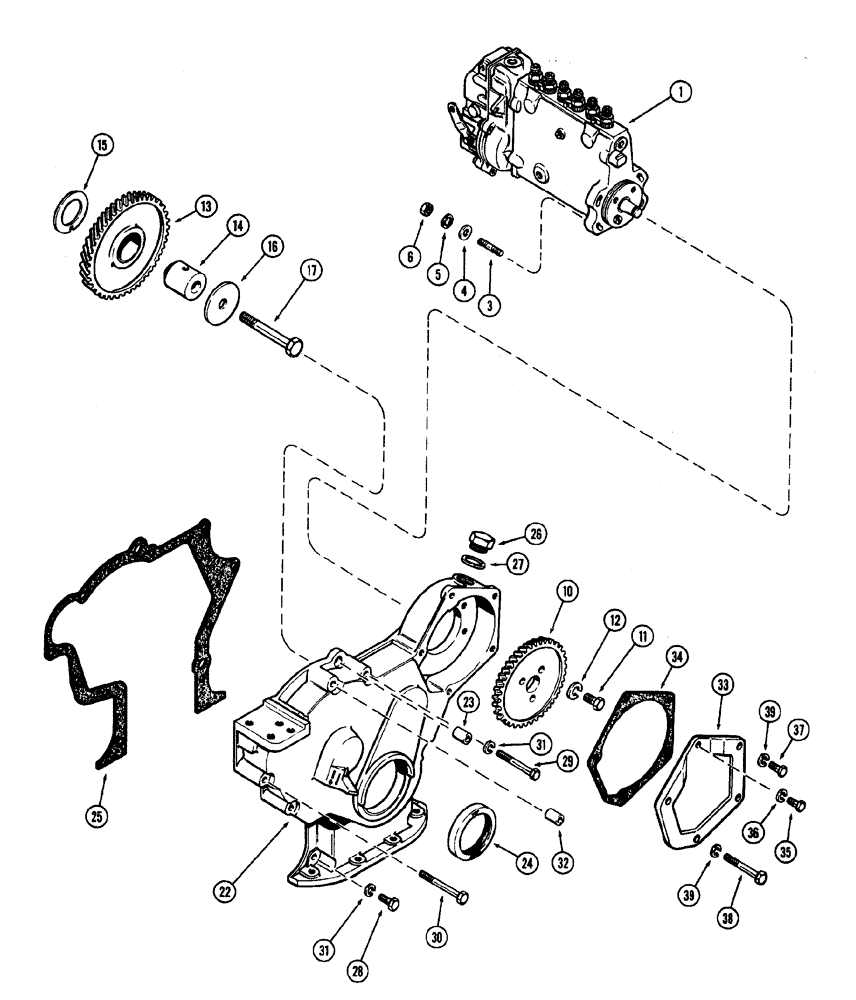

Запчасти Case W20 (034) - (401BD) DIESEL ENGINE INJECTION PUMP DRIVE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY fuel injection, drive, See Figures 37 and 37B

1шт.

3

A58689

STUD

pump mounting, injector drive, 3/8" NC x 1-7/8"

4шт.

4

A57470

WASHER

gauge, 13/32" x 11/16" x 16", injector pump drive

4шт.

5

193-30

LOCK WASHER,Int Tooth, 3/8"

Injector pump drive

4шт.

6

25-106

NUT,3/8"-16, G5

hex, injector pump drive, 3/8" NC

4шт.

10

A58693

GEAR

drive, injector pump, 48 teeth

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to pump hub, drive, injector

3шт.

12

92-6

LOCK WASHER,3/8"

injector pump drive

3шт.

13

A62542

GEAR

ASSY idler, with bushing, injector pump drive, 53 teeth

1шт.

14

A58690

SHAFT

idler gear, injector pump drive

1шт.

15

A58691

WASHER

thrust, injector pump drive, 1-3/4" x 2-11/16" x 1/16"

1шт.

16

A58692

PLATE

thrust, injector pump drive, 1/2" x 2-1/4" x 1/16"

1шт.

17

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler shaft, injector pump drive

1шт.

22

A58609

COVER

ASSY timing gears, Includes Ref: 23

1шт.

23

A58611

PIN

sleeve, timing gear cover, 3/8" x 5/8" x 1"

2шт.

24

A62049

OIL SEAL

oil, crankshaft, front, timing gear cover, 2-5/8" x 3-5/8" x 1/2"

1шт.

25

A58612

GASKET

cover to block, timing gear

1шт.

26

A21140

PLUG

timing window, gear cover

1шт.

27

A58613

SEALING WASHER

nylon, timing gear cover, 1" x 1-1/4" x 1/16"

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing gear cover

4шт.

29

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Timing gear cover

2шт.

30

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Timing gear cover

1шт.

30

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Timing gear cover

2шт.

31

92-6

LOCK WASHER,3/8"

timing gear cover

9шт.

32

A19774

BUSHING

alternator pry point, timing gear cover, 3/8" pipe x 1"

1шт.

33

A61053

COVER

injector pump drive gear, timing

1шт.

34

A58615

GASKET

cover, timing gear

1шт.

35

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover, timing gear

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover, timing gear

2шт.

38

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Timing gear cover

2шт.

39

92-6

LOCK WASHER,3/8"

timing gear cover

4шт.
