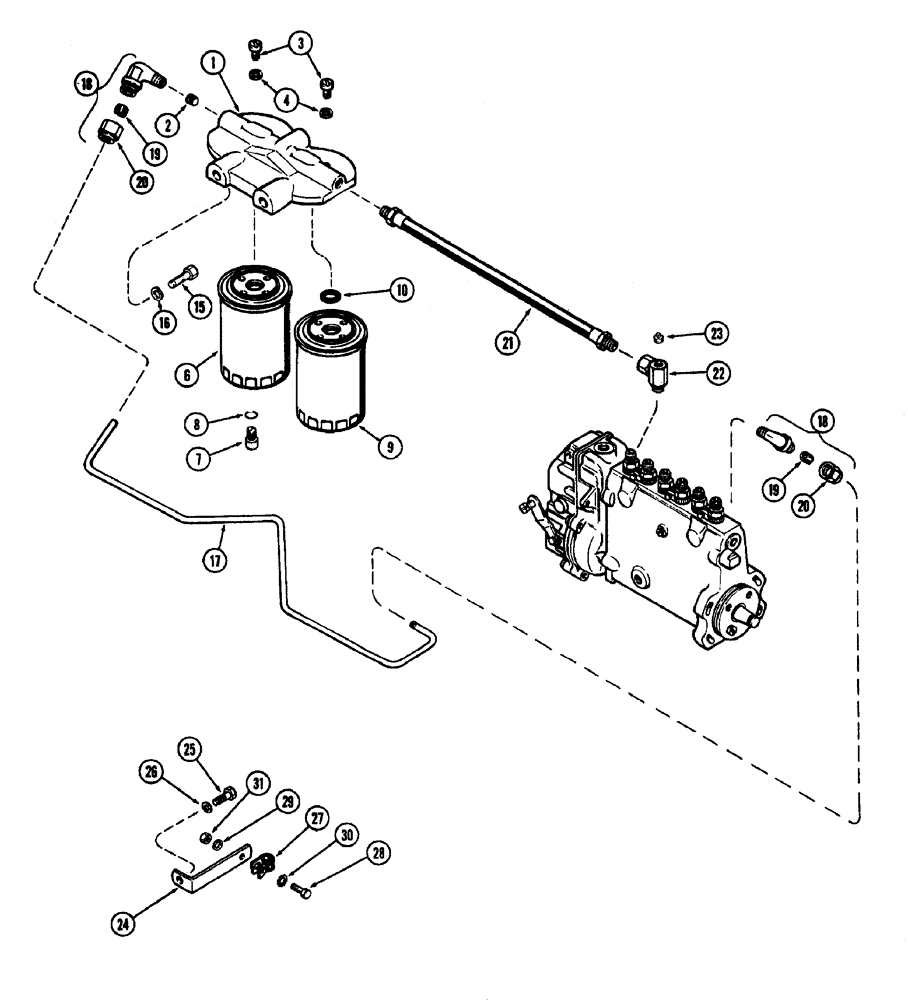

Запчасти Case W20 (032) - (401BD) DIESEL ENGINE FUEL FILTER SYSTEM (03) - FUEL SYSTEM

A62347

FILTER

ASSY fuel, Includes Ref: 1-10

1шт.

1

A62339

HEAD

HEAD ASSY filter mounting, Includes Ref: 2

1шт.

2

221-41

PLUG

slotted head, 1/8" PT

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

slotted head, bleed, #10-32 x 5/16"

2шт.

4

A66619

WASHER

bleed screw, 3/16" x 3/8" x 1/16", Replaces: A20662

2шт.

CASA41745

FUEL FILTER

FILTER KIT, Includes Ref: 6-10

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY first stage, Includes Ref: 7, 8

1шт.

7

G49080

PLUG

plastic, 3/8" PT, 12 pt hd

1шт.

7

221-1661

PLUG

hex head, metal, 1/8" PT

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

used with G49080 plug, 3/8" x 9/16" x 3/32"

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSY second stage, Includes Ref: 10

1шт.

10

A42315

GASKET

rubber, 15/16" x 1-3/16" x 1/4"

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A62342

TUBE

injector pump to first stage filter

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ELBOW ASSY filter tube, Includes Ref: 19, 20

2шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

for 5/16" tube

1шт.

21

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

filter to injector pump, 15-3/8" long

1шт.

22

A20539

FITTING

UNION, Serial Range: hose-pump

1шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

square head, union, 1/8" PT

1шт.

24

A64856

BRACKET

filter tube support, Replaces: A58718

1шт.

25

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Bracket

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

A62209

CLAMP,5/16", Insul, 1/4" Bolt

filter tube

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clip

1шт.

29

92-4

LOCK WASHER,1/4"

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

1шт.

31

25-104

NUT,1/4"-20, G5

1шт.
