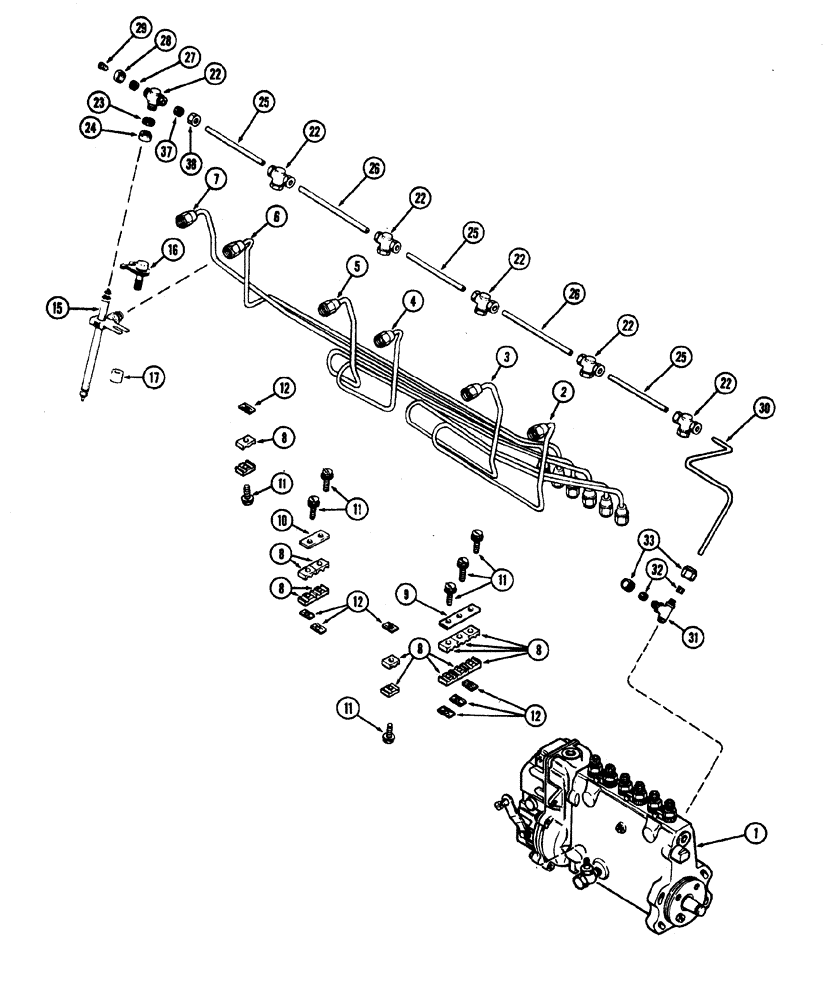

Запчасти Case W20 (030) - (401BD) DIESEL ENGINE FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY fuel injection, See Figures 36 and 37A

1шт.

2

A58702

TUBE

ASSY fuel injection, No. 1 cylinder

1шт.

3

A58703

TUBE

ASSY fuel injection, No. 2 cylinder

1шт.

4

A58704

TUBE

ASSY fuel injection, No. 3 cylinder

1шт.

5

A58705

TUBE

ASSY fuel injection, No. 4 cylinder

1шт.

6

A58706

TUBE

ASSY fuel injection, No. 5 cylinder

1шт.

7

A58707

TUBE

ASSY fuel injection, No. 6 cylinder

1шт.

8

A58709

BRACKET

clamp, injection tube

14шт.

9

A58708

PLATE

clamp tube bracket, 6 tubes

1шт.

10

A58710

PLATE

clamp, tube bracket, 4 tubes

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

slotted hex head, #10 x 1" NC

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

speed, #10 Tinnerman

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY injector, See Figure 38

6шт.

16

A58695

CLAMP

ASSY nozzle

6шт.

17

A58696

SPACER

nozzle damp

6шт.

22

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE leak off

6шт.

23

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

, Serial Range: tee-nozzle

6шт.

24

A58961

NUT

, Serial Range: tee-nozzle

6шт.

25

A58965

TUBE

TUBE leak off, 4-5/8" long

3шт.

26

A58964

TUBE

leak off, 5-5/8" long

2шт.

72

222-102

SLEEVE,1/4" Tube

12шт.

28

87017024

TUBE NUT,1/2"-24

for 1/4" tube

12шт.

29

47-47

RIVET,FH, 1/4" x 7/16"

leak off tee plug

1шт.

30

A58963

TUBE

leak off, No. 1 cylinder to injector pump

1шт.

31

A59097

VALVE

TEE ASSY check, in pump, Includes Ref: 32,33

1шт.

32

222-102

SLEEVE,1/4" Tube

2шт.

33

87017024

TUBE NUT,1/2"-24

for 1/4" tube

2шт.
