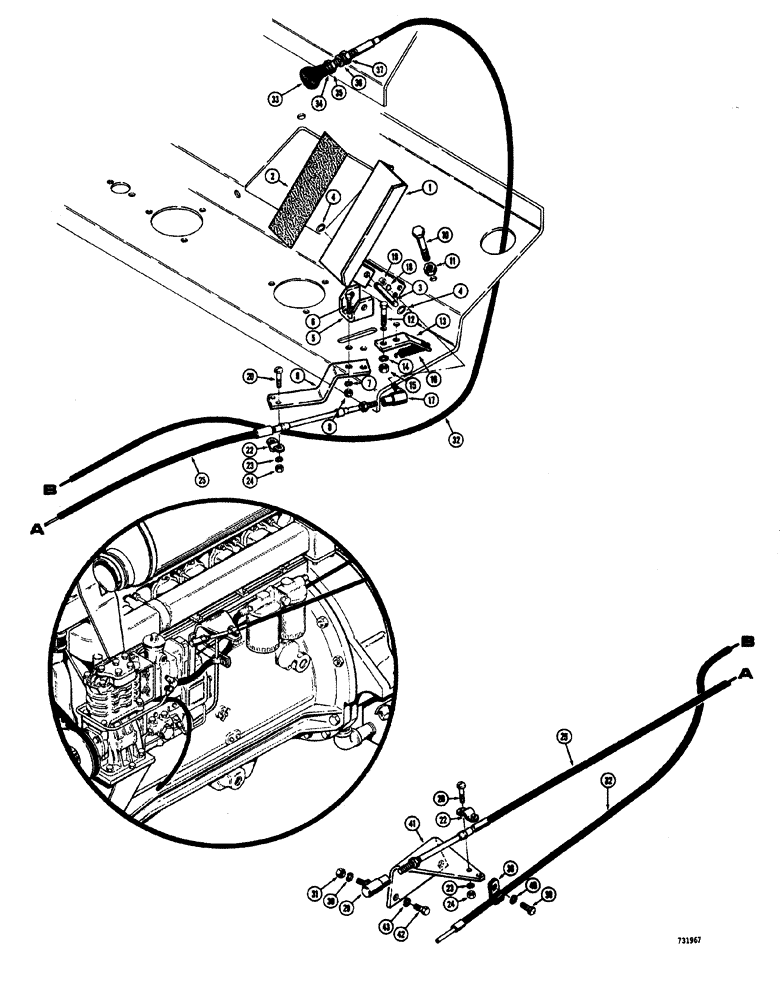

Запчасти Case W20 (096) - ACCELERATOR AND LINKAGE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
L48004
PEDAL
SPARE PART accelerator, foot feed
1шт.
2
L48674
PAD
accelerator, foot feed
1шт.
3
L48003
PIN
pedal pivot
1шт.
4
A27795
RING
snap
2шт.
5
L48002
BRACKET
BLOCK accelerator pedal mounting
1шт.
6
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
7
92-4
LOCK WASHER,1/4"
2шт.
8
25-104
NUT,1/4"-20, G5
2шт.
9
L48027
BRACKET
cable mounting, accelerator
1шт.
10
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
1шт.
11
25-146
JAM NUT,Jam, 3/8"-16, G5
Hex
1шт.
12
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
2шт.
13
L48024
BRACKET
accelerator and cable return
1шт.
14
92-4
LOCK WASHER,1/4"
2шт.
15
25-104
NUT,1/4"-20, G5
2шт.
16
L48104
SPRING
return, accelerator
1шт.
17
L12437
BALL JOINT,#10 - 32 x 7/8"
type, accelerator linkage
1шт.
18
92-3
LOCK WASHER,#10
1шт.
19
129-37
NUT,#10-32
1шт.
20
177-100
SCREW,Sl Fil Hd, #10 - 32 x 3/4"
slotted fillister head, #10 - 32 NF x 3/4"
4шт.
21
RESERVED
1шт.
22
L12441
CLAMP
accelerator cable
2шт.
23
92-3
LOCK WASHER,#10
4шт.
24
129-37
NUT,#10-32
4шт.
25
L47904
FLEXIBLE CABLE
accelerator
1шт.
26
RESERVED
1шт.
27
RESERVED
1шт.
28
RESERVED
1шт.
29
L12437
BALL JOINT,#10 - 32 x 7/8"
type, at fuel injection pump
1шт.
30
92-3
LOCK WASHER,#10
1шт.
31
129-37
NUT,#10-32
1шт.
L48675
CABLE
ASSEMBLY fuel shutoff. When stock is exhausted L50793 will be supplied
1шт.
L50793
PLATE
CABLE ASSEMBLY fuel shutoff, Includes Ref: 32-37
1шт.
32
NSS
NOT SOLD SEPARAT
CABLE shutoff
1шт.
33
L33717
KNOB
HANDLE cable
1шт.
34
219-141
NUT jam, hex, 1/4" - 20 NC, Zinc plated
1шт.
35
425-154
JAM NUT,Jam, 1/4"-28, G5
1шт.
36
193-68
LOCK WASHER,Int Tooth, 3/8"
1шт.
38
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
cable, shutoff
1шт.
39
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
40
92-6
LOCK WASHER,3/8"
1шт.
41
L48671
BRACKET
mounting, cable, rear
1шт.
42
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
43
92-6
LOCK WASHER,3/8"
1шт.
