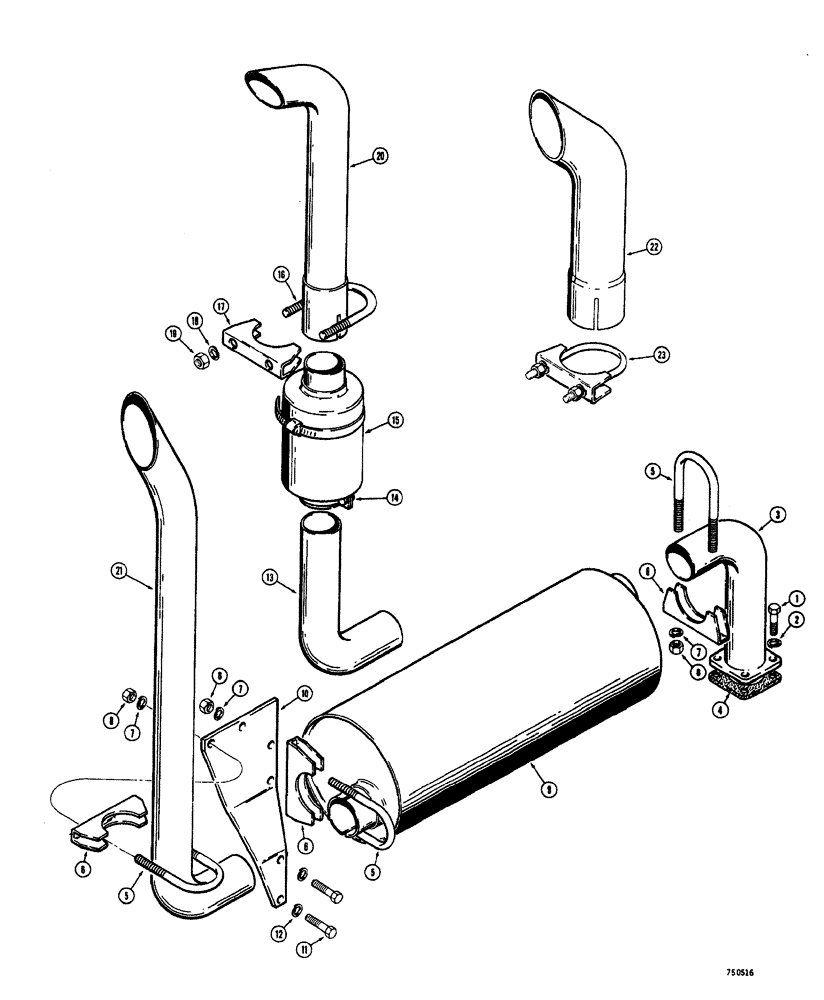

Запчасти Case W20 (094) - EXHAUST SYSTEM (02) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

L14207

ADAPTER

exhaust, Serial Range: manifold-muffler

1шт.

4

L14218

MANIFOLD GASKET

adapter to exhaust manifold

1шт.

5

L19083

U-BOLT

SPARE PART muffler clamping

3шт.

6

L19084

SADDLE

muffler clamping

3шт.

7

92-5

LOCK WASHER,5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

6шт.

9

L14219

MUFFLER

engine exhaust

1шт.

10

L48021

SUPPORT

muffler mounting

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

NLS

NO LONGER SERVICED

standard to spark arresting muffler

1шт.

L41692

ARRESTER

MUFFLER ASSEMBLY spark arresting, Includes Ref: 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

CLAMP muffler

1шт.

15

NSS

NOT SOLD SEPARAT

MUFFLER spark arresting

1шт.

16

L19083

U-BOLT

SPARE PART muffler clamping

1шт.

17

L19084

SADDLE

muffler clamping

1шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

L18424

PIPE

STACK engine exhaust, used on models with spark arresting muffler

1шт.

21

L17152

TUBE,2.975" OD

STACK engine exhaust, 19" high, standard on models without spark arresting muffler

1шт.

21

L47988

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST STACK engine exhaust, 41" high, service option on models without spark arresting muffler

1шт.

22

L57758

MUFFLER

STACK exhaust, turbo charged models

1шт.

23

A17851

CLAMP

ASSEMBLY stack, includes hardware

1шт.
