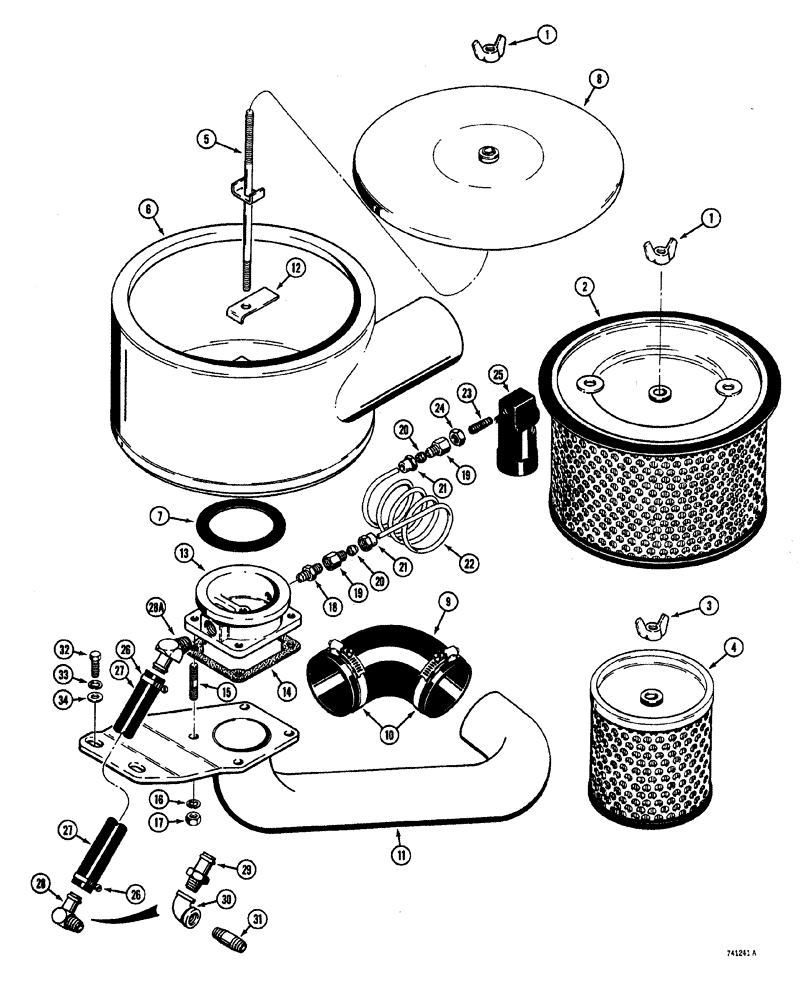

Запчасти Case W20 (092) - AIR CLEANER AND RELATED PARTS TRACTOR S.N. 9109756 AND AFTER (02) - ENGINE

L54055

CLEANER

AIR ASSEMBLY dry type, Includes Ref: 1-7

1шт.

1

129-549

WING NUT,Locking, 3/8"-16

wing, cover retainer

1шт.

2

A43734

AIR CLEANER

ELEMENT filter, outer

1шт.

3

129-549

WING NUT,Locking, 3/8"-16

wing, element retainer

1шт.

4

A43735

AIR CLEANER

ELEMENT filter, inner

1шт.

5

L35485

BOLT

special

1шт.

6

A43738

BOWL

BODY air cleaner

1шт.

7

A43736

GASKET

air cleaner

1шт.

8

L35985

COVER ASSY

air cleaner, turbo charged models

1шт.

9

D36262

LARGE HOSE

HOSE,LARGE ELBOW intake, turbo charged models

1шт.

10

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

worm screw type

2шт.

11

L70187

TUBE,12.3" L

ELBOW tube

1шт.

12

L53838

LOCK ASSY

tab

1шт.

13

L53209

ADAPTER

air cleaner to intake manifold

1шт.

14

A58910

GASKET

adapter to intake manifold

1шт.

15

L13023

STUD

special, 3/8" - 16 NC

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

18

D36264

FITTING

special

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

ASSEMBLY tube, air cleaner indicator, Includes Ref: 19-21

2шт.

19

NSS

NOT SOLD SEPARAT

BODY connector

1шт.

20

222-5045

SLEEVE,1/8" Tube

SLEEVE connector

1шт.

21

222-5058

NUT,3/8"-24

connector

1шт.

22

D41013

TUBE

air cleaner indicator

1шт.

23

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

pipe, at air cleaner indicator

1шт.

24

L13268

LOCK NUT

special lock, indicator mounting

1шт.

25

L40280

DIPSTICK

INDICATOR air cleaner filter restriction

1шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose

2шт.

27

L47888

HOSE

air intake elbow to compressor, 5/8 I.D. x 37 long

1шт.

28

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM hose, 90, if used

1шт.

28a

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

29

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM hose, straight, if used

1шт.

30

221-1377

ELBOW,90 Degree, 1/2" NPT

ELBOW 90°, female

1шт.

31

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE pipe

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

95-6

WASHER,3/8"

2шт.
