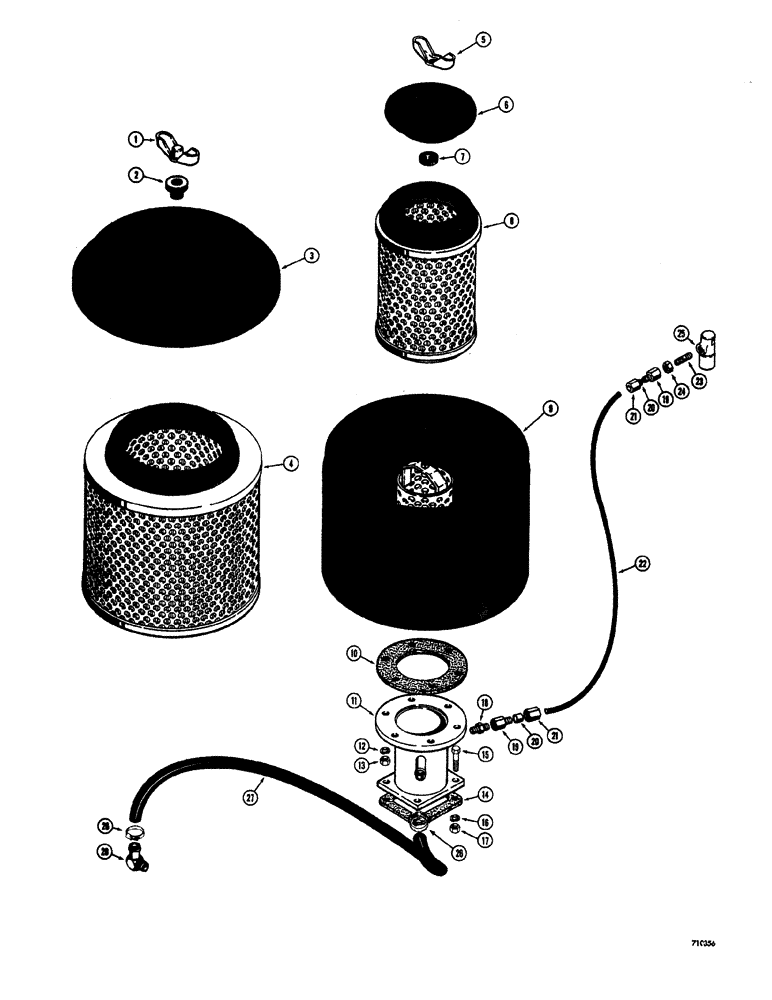

Запчасти Case W20 (090) - AIR CLEANER AND RELATED PARTS BEFORE TRACTOR S.N. 9109756 (02) - ENGINE

L52784

FILTER CARTRIDGE

AIR CLEANER ASSEMBLY dry type, Includes Ref: 1-10

1шт.

1

A17745

NUT

cover retainer

1шт.

2

A17744

GROMMET

cover sealing

1шт.

3

L35472

COVER ASSY

air cleaner

1шт.

4

A17741

AIR CLEANER

ELEMENT filter, outer

1шт.

5

L35473

NUT

wing, element retainer

1шт.

6

A17747

PLATE ASSY.

COVER inner filter element

1шт.

7

A17748

GASKET

filter element

1шт.

8

A17742

AIR CLEANER

ELEMENT filter, inner

1шт.

9

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

10

A17749

GASKET

air cleaner

1шт.

11

L47036

SPARE PART ADAPTER air cleaner to intake manifold

1шт.

12

92-5

LOCK WASHER,5/16"

6шт.

13

25-115

NUT,5/16"-24, G5

Hex

6шт.

14

A58910

GASKET

adapter to intake manifold

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

18

D36264

FITTING

special

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

ASSEMBLY tube, air cleaner indicator, Includes Ref: 19-21

2шт.

19

NSS

NOT SOLD SEPARAT

BODY connector

1шт.

20

222-5045

SLEEVE,1/8" Tube

SLEEVE connector

1шт.

21

222-5058

NUT,3/8"-24

connector

1шт.

22

D41013

TUBE

air cleaner indicator

1шт.

23

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

pipe, at air cleaner indicator

1шт.

24

L13268

LOCK NUT

special, lock, indicator mounting

1шт.

25

L40280

DIPSTICK

INDICATOR air cleaner filter restriction

1шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose

1шт.

27

L47888

HOSE

air intake, Serial Range: elbow-compressor

1шт.

28

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM 90°, hose

1шт.
